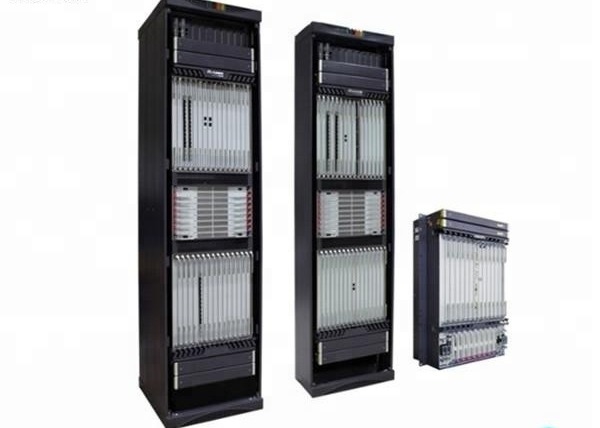

DWDM OSN 9800 P32 Optical Line Boards ON32 TMP1ON32

DWDM OSN 9800 P32 Optical Line Boards ON32 TMP1ON32

  • DWDM OSN 9800 P32 Optical Line Boards ON32 TMP1ON32
DWDM OSN 9800 P32 Optical Line Boards ON32 TMP1ON32
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OSN 9800 P32
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Racks & Enclosure Model: TMP1ON32
Dimensions (H X W X D): 1390 Mm (54.7 In.) X 496 Mm (19.5 In.) X 315 Mm (12.4 In.) Weight: 82 Kg (180.8 Lb.)
Standard Working Voltage: -48 V Or -60 V DC Power Input

Product Introduction





DWDM OSN 9800 P32 Optical Line Boards ON32 TMP1ON32




The huawei Optix OSN 9800 P32

Product Specifications
Subrack dimensions (mm)
1390 (H) x 496 (W) x 315 (D) (without cabinet)
Suitable cabinet
ETSI 300 cabinets, such as A63B
Max. number of slots for service boards
32
Max. number of wavelengths
Fixed grid: 96 wavelengths @50 GHz grid
Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Wavelength range
DWDM system: 1529.16 nm to 1567.13 nm (extend C-band, ITU-T G.694.1)
Synchronization
 * Synchronous Ethernet clock
* IEEE 1588v2
* ITU-T G.8275.1
Power Supply
 * Nominal working voltage:-48V DC/-60V DC

* Working voltage range:
* -48 V DC: -40 V to -57.6 V
* -60 V DC: -48 V to -72 V
