DWDM OSN 9800 M12 Optical Transponder Units G1M502DM TNG1M502DMC01

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN 9800 M12

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	Racks & Enclosure	Model:	TNG1M502DMC01
OSN 9800 M12 Dimensions (H X W X D):	347.2 Mm (13.7 In.) X 442 Mm (17.4 In.) X 295 Mm (11.6 In.)	OSN 9800 M12 Weight:	12.2 Kg (26.9 Lb.)
Standard Working Voltage:	-48 V Or -60 V DC Power Input

Product Introduction

TNG1M502DMC01 G1M502DM: 2 x 100Gbit/s Service Multiplexing Into 1 x 200G/100G Programable Wavelength Conversion Board

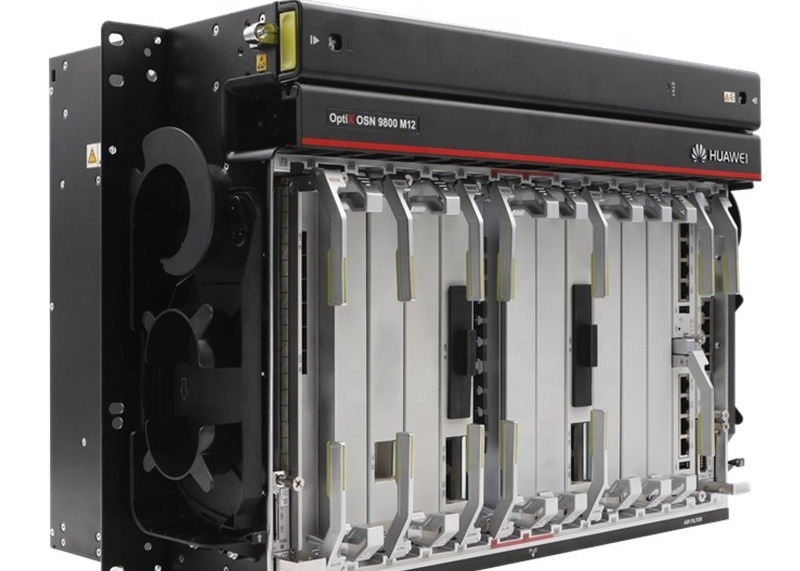

The huawei Optix OSN 9800 M12 Apperance

Product Specifications

Subrack dimensions (mm)	347.2 mm (H) x 442 mm (W) x 295 mm (D)
Suitable cabinet	* ETSI 300/600 cabinets, such as A63B * 19-inch cabinet
Max. number of slots for service boards	13
Max. number of wavelengths	* Fixed grid: 96 wavelengths @50 GHz grid * Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Wavelength range	1529.16 nm to 1567.13 nm (extended C-band)
Max. rate per channel	200G bit/s (OTUC2)
Service type	Synchronous digital hierarchy (SDH)/synchronous optical network (SONET), Ethernet, SAN, OTN, Video
