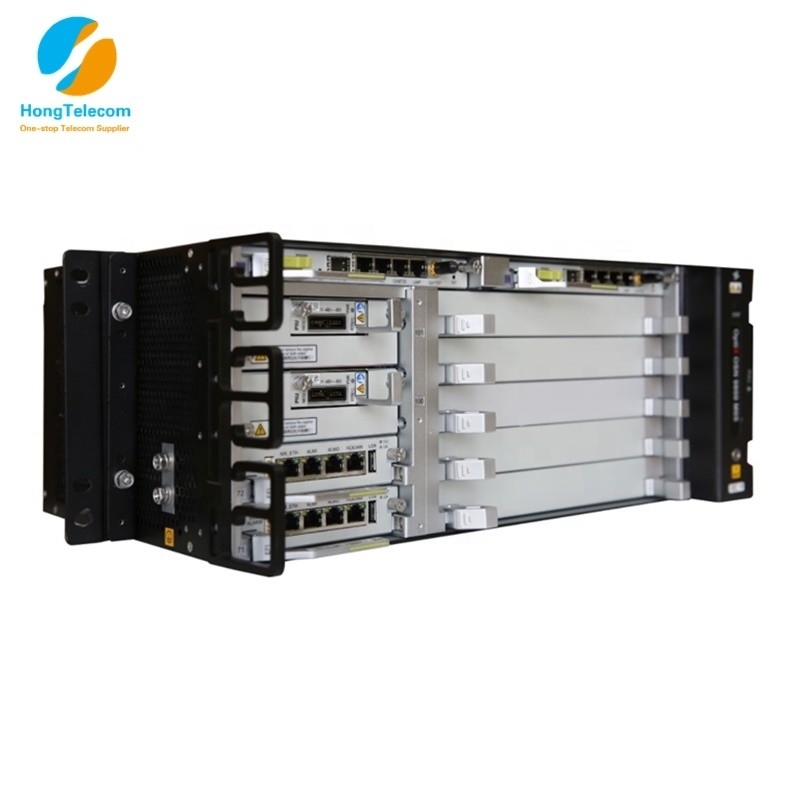

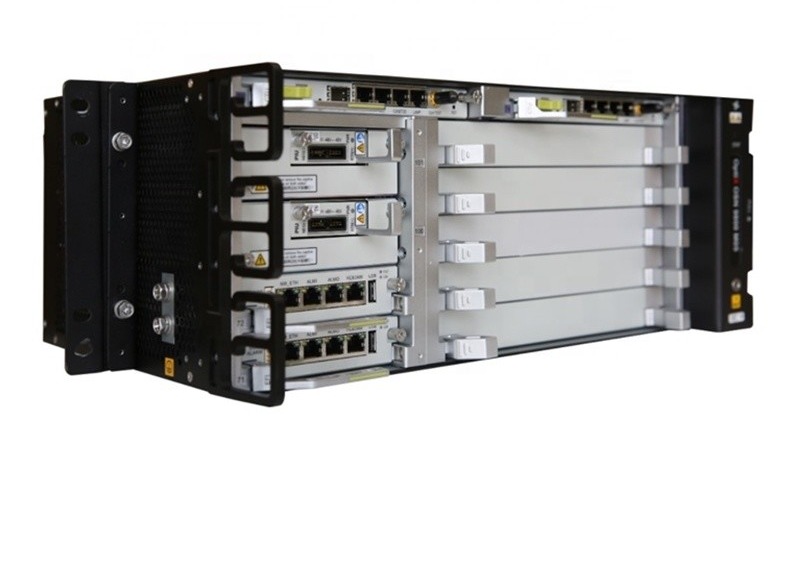

DWDM OSN9800 M05 M604SM board TNG2M604SM TNG2M604SMT32 TNG2M604SMT33

Negotiable
MOQ
Negotiable
Price
DWDM OSN9800 M05 M604SM board TNG2M604SM TNG2M604SMT32 TNG2M604SMT33
Features Gallery Product Description Request A Quote
Features
Specifications
Model: TNG2M604SMT32 TNG2M604SMT33
OSN9800 M05 Dimensions: 177 (H) X 442 (W) X 295 (D)
Max. Rate Per Channel: 400G Bit/s (OTUC4)
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OSN 9800 M05
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description
Product Introduction



Product Specifications
Subrack dimensions (mm)
177 (H) x 442 (W) x 295 (D)
Suitable cabinet
 * ETSI 300/600 cabinets, such as A63B
* 19-inch cabinet
Max. number of slots for service boards
5
Max. number of wavelengths
 * Fixed grid: 96 wavelengths @50 GHz grid
* Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Wavelength range
1529.16 nm to 1567.13 nm (extended C-band)
Max. rate per channel
400G bit/s (OTUC4)
Service type
Synchronous digital hierarchy (SDH)/synchronous optical network (SONET), Ethernet, SAN, OTN, Video
