Name: DWDM OptiXtrans DC908 03033QYV TMN1WOLL01
Brand: Uonel Co.Limtied
SKU: OptiXtrans DC908
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Transmission Parts

Model: TMN1WOLL01

Part Number: 03033QYV

OptiXtrans DC908 Dimensions: 86.1 X 442 X 500 Mm

Chassis: 2 U

Number Of C-band Wavelengths: 120

Integration (T/U): 4.8 Tbit/s

Chassis Capacity: 9.6 Tbit/s

Max. Line Rate Per Wavelength: 600-800 Gbit/s

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: OptiXtrans DC908

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

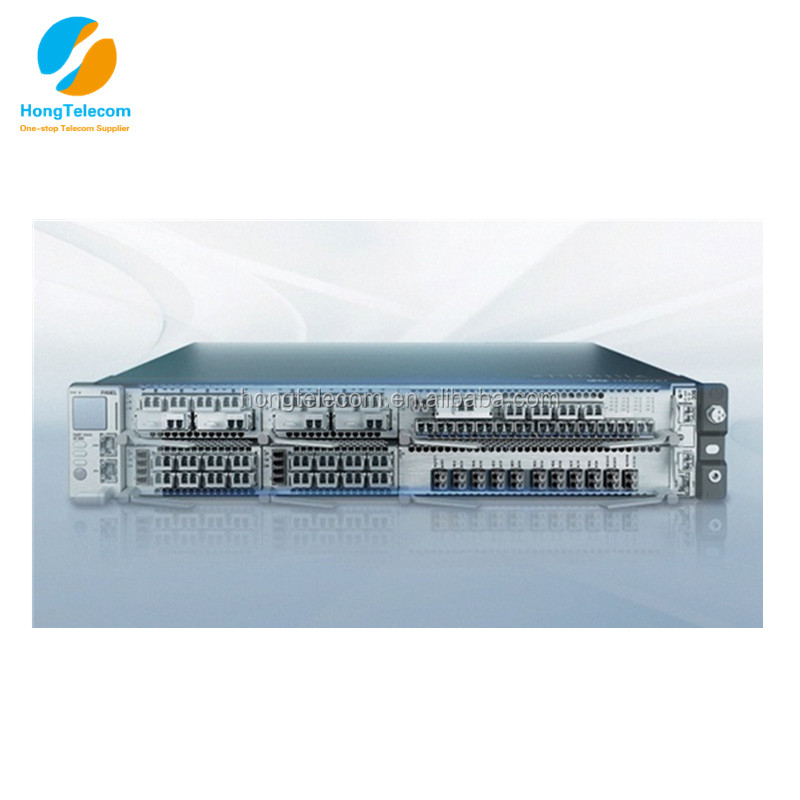

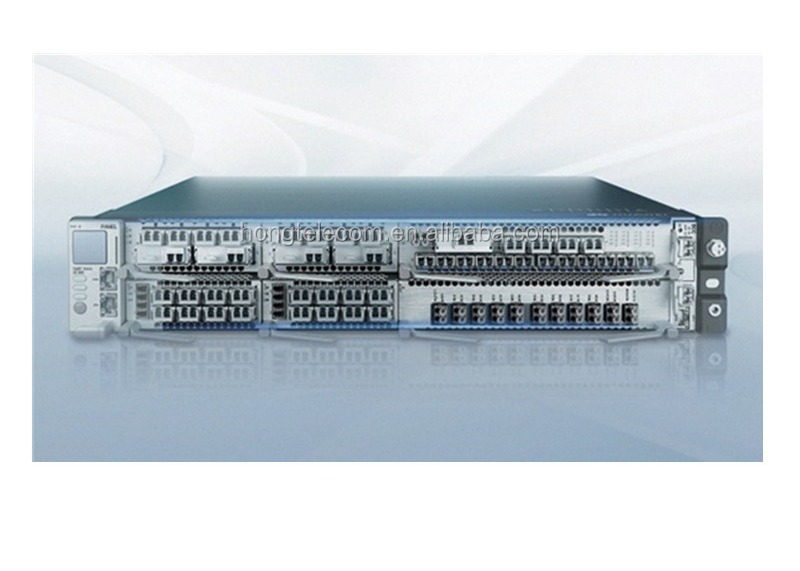

DWDM OptiXtrans DC908 03033QYV TMN1WOLL01

Product Description

Product Introduction

03033QYV TMN1WOLL01 Wide OADM Line Board (Super C Band,Gain21~34dB,MAX 22.5dBm,Gain16~25dB,MAX 23.8dBm, L band extension
supported)

Huawei OptiXtrans DC908

An optical-electrical Wavelength Division Multiplexing (WDM) transmission device designed for Data Center Interconnect (DCI) and ready for the toughest challenges of the intelligent era.

OptiXtrans DC908 features:

Simplified deployment, from scratch to completion in just eight minutes;

Ultra-broadband and high integration, with 48T per fiber (sufficient for the next five years);

Intelligent, proactive Operations and Maintenance (O&M) that’s AI ready.

Product Specification

Parameter			Huawei OptiXtrans DC908 Description
Chassis	Dimensions (H x W x D)	86.1 mm x 442 mm x 500 mm
		Maximum Capacity	9.6 Tbit/s
		Number of Service Board Slots	8
		Applicable Cabinet	19-inch cabinet
Line-Side Port	Rate (Programmable)	• 100 Gbit/s (PDM_QPSK, PDM_wDCM_QPSK)
				• 200 Gbit/s (PDM_16QAM, PDM_16QAM-H, PDM_e16QAM, PDM_QPSK)
				• 400 Gbit/s (PDM_16QAM)
				• 600 Gbit/s (PDM_64QAM)
				• 800 Gbit/s (PDM_64QAM)
		Optical Module	• Wavelength-tunable optical module MSA
		Optical Module		• Wavelength-tunable and pluggable CFP2
Client-Side Port	Access Service Type	10 GE LAN, 10 GE WAN, 40 GE, 100 GE, 400 GE, OTU4, OTU2, OTU2e, STM-64, FC800, FC1200, FC1600, and FC3200
		Optical Module	• Pluggable SFP+
		Optical Module		• Pluggable QSFP28, QSFP+, and QSFP-DD
Optical Power Management			ALS, AGC, eALC, APE, and IPA
Maximum Number of Wavelengths			Fixed grid: 120 wavelengths @ 50 GHz
Channel Spacing			Fixed grid: 50 GHz, 75 GHz, 100 GHz, 150 GHz
Center Frequency Range			190.7 THz to 196.65 THz
Center Wavelength Range			1524.50 nm to 1572.06 nm
Protection			• Optical line protection
				• Intra-board 1 + 1 protection
				• Client 1 + 1 protection
Management Interface			CLI, GUI, SNMP, NCE-T, and NETCONF
Encryption Algorithm			AES-256
O&M Features			• Intuitive one-click deployment
				• Proactive O&M with resource and health prediction for fast and accurate troubleshooting
				• O&M LCD information display
Reliability			1 + 1 control board protection
Power Supply	Backup	1 + 1 power supply backup
		AC	• Rated voltage range:
				100 V AC to 120 V AC (50/60 Hz)
				200 V AC to 240 V AC (50/60 Hz)
				• Maximum voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)
		High-Voltage DC	• Rated voltage: 240 V HVDC
		High-Voltage DC		• Maximum voltage range: 192 V HVDC to 288 V HVDC
		DC	• Rated voltage: –48 V DC
		DC		• Maximum voltage range: –40 V DC to –72 V DC
Heat Dissipation			• Front-to-rear air flow
Heat Dissipation				• 2 + 1 fan tray assembly backup
