DWDM huawei OSN 1800 V 34060742 OSX010N30

DWDM huawei OSN 1800 V 34060742 OSX010N30

  • DWDM huawei OSN 1800 V 34060742 OSX010N30
DWDM huawei OSN 1800 V 34060742 OSX010N30
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OSN 1800 V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Model: OSX010N30 OSN1800 V Dimension: 221(H)*442(W)*224(D)mm
Max CWDM: 8 Wave Max DWDM: 40 Wave
AC Power: 110~220V DC Power: -48/-60V( Support 1+1)

Contact Us

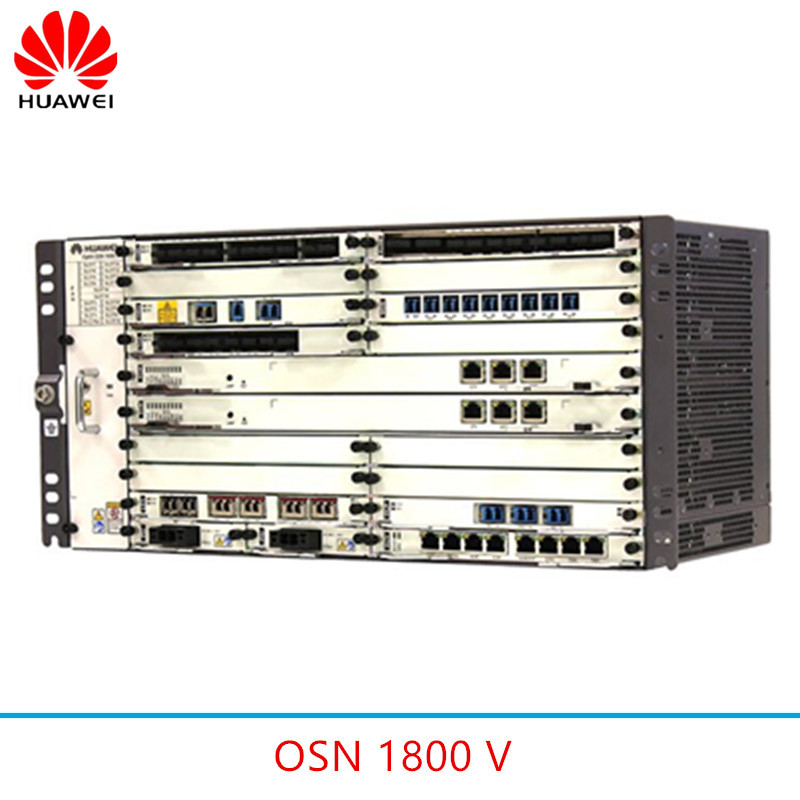

DWDM huawei OSN 1800 V 34060742 OSX010N30 0

OptiX OSN 1800 V is a new generation of packet enhanced multi service optical transport platform, 5U high integration to fill the needs of the metropolitan device configuration.

Support OTN/PKT unified switching function, Ethernet, TDM, line 2M~10G full service access, and integrated MPLS-TP function, solve the metropolitan area network following fiber resources shortage, as enterprise network, campus network, data center network provides a low cost and high efficiency multi service broadband access solutions.

DWDM huawei OSN 1800 V 34060742 OSX010N30 2
HUAWEI OSN 1800 V
OSN 1800 V
Device Size
221(H)*442(W)*224(D)mm
Business Slot
AD Slot: 12     ;    DC Slot:  14
Capacity
OTN: 800G   ODUK( K=0,1,2,2e,flex )
Max Wave
CWDM: 8 Wave ; DWDM: 40 Wave
Single channel maximum rate
100 Gbits/s (OTU4)
Install mode
19''/23'' Cabinet , ETSI 300mm/600mm cabinet

Power supply mode
AC: 110-220V OR DC: -48/-60V (Support 1+1 backup power input )

HUAWEI OSN 1800 V Accessories


Part number/ Model Nunber /Description

02300802 TNFK03AFB Optix OSN 1800V, Packet Enhanced Assembly Chassis (5U, DC, with Fiber Storage)

TNF1SCC System control & communication board with OSC

03031PXT TNF1DFIU04 Fiber Interface Board(Single FIU subcard) C/510nm

03022GRR TNF1ST2 BIDIRECTIONAL OPTICAL SUPERVISOR CHANNEL AND TIMING TRANSMISSION

34060674-001 OSC080N01 Optical Transceiver,eSFP,1511nm,155.52Mbps,-4~1dBm,-34.0dBm,LC,80km

03030RLG TNF1X4001 40-Channel Multiplexing/Demultiplexing Board(C_Even,192.10THz~196.00THz,100GHz,LC)

03030ULA TNF2OBU01 C-BAND Optical Amplifier Unit(MAX -3dBm IN and 20dBm OUT,Gain 23dB,With EVOA)

34060568-001 ODX0480T1 Optical Transceiver-TXFP-C band-9.95~11.3Gb/s-LC-SM-40km

34060742 OSX010N30 Optical transceiver,SFP+,1310nm,10Gb/s,-8.2~0.5dBm,-12.6dBm,LC,SM,10km

03030MSG TNF2ELOM01 Enhanced 8 multi-rate ports wavelength conversion board

TNF2LSX 10 Gbit/s wavelength conversion board

03031YXT TNF3SCC03 System Control & Commnication Board with OSC

03023GBW TNZ5UXCMS Universal Cross Connect, System Control and Clock Processing Board.

03054663 TNF1AUX Assistant Channel Interface Board

03031LXD TNF1EX4001 Enhanced 40-Channel Multiplexing/ Demultiplexing Board(C_Even,196.00THZ~192.10THz,100GHz Thermal AWG,LC

03021ETT TNF2LDX 2*10Gbit/s Wavelength Conversion Board (4*192.10~196.00-10G-40km, 1* SFP+_1310mn-I-64.1-STM-64/10GE_LAN/10GE_WAN/ FC1200/OTU2/OTU2e)

88032WUX TNF-SW-V100R006 OSN 1800 Basic Software Package, V100R006 (pER sUBRACK)

82600799 NSDSOTNFUN01 OptiX OSN 1800/1832 OTN Function Fee(Per Subrack)

82600797 NSDSSDHFUN02 OptiX OSN 1800/1832 SDH Function Fee(Per Subrack)

14130525 LC-FC-S-10.LSZH Patch Cord,LC/UPC,FC/UPC, Single-mode,10m, G.657A2,2mm LSZH.

Features

Efficient, flexible and reliable multi service optical transport platform

1. Bandwidth worry: system optical layer supports dense wave 40*100G=4T capacity. Unified access matrix, PKT/OTN unified access, unified switching, bandwidth utilization;

2. flexible deployment: 5U support 19/23 'high size cabinet, while supporting AC/DC power supply, support pre installation, pre disc fiber, pre configured and remote automatic adjustment function, reduce the difficulty and cost of project delivery;

3. High reliability: provides a variety of device level and network level protection, full protection business.
