350Ah TP48600A-H17B1 Outdoor Huawei Power Supply 48V DC With 50Ah Rectifiers

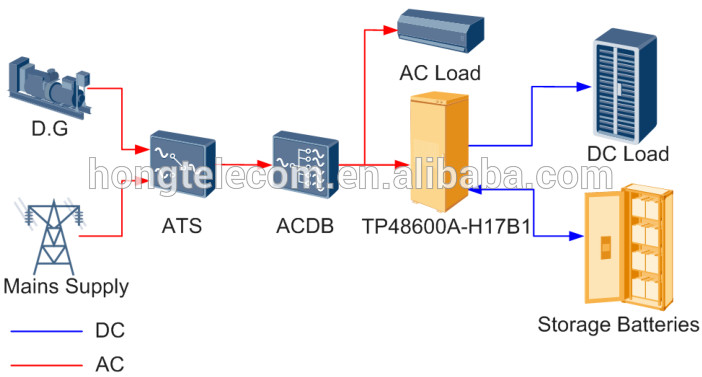

Scenario:

TP48600A-H17B1 is applicable to various indoor scenarios such as access network, transmission network, medium and small macro sites,etc.

Configuration
The TP48600A-H17B1 power system mainly consists of the cabinet, rectifier, PMU, power distribution unit, and storage batteries.
The TP48600A-H17B1 uses the 48 V/50A rectifiers and provides a maximum of 350 A current. Figure 1-2 shows the TP48600A-H17B1 configuration.

Easy Installation of Modules
The monitoring module (PMU) and rectifier module are hot-swappable, thus facilitating
the installation, saving maintenance time, and reducing the OPEX.
Intelligent Sleep Technology
According to the load power, the power system automatically enables one or more
rectifiers to enter the sleep mode.
Wide Range of AC Input Voltage
The AC input voltage of the system ranges from 90 V AC to 290 V AC phase voltage.
Highly Level Safety Design
The power system complies with the CE standard, the power distribution components comply with the CE and 3C standards, and the rectifier complies with the UL, CE, and TUV standards.
