19 Inch Cabinet 200Gbit/S DWDM Huawei OptiXtrans E6616 Transmission OSN 1800 V Pro

Negotiable
MOQ
Negotiable
Price
19 Inch Cabinet 200Gbit/S DWDM Huawei OptiXtrans E6616 Transmission OSN 1800 V Pro
Features Gallery Product Description Request A Quote
Features
Specifications
OptiXtrans E6616 Dimensions: 221.5 X 220 X 442
Maximum Rate Per Channel: 200Gbit/s
Name: DWDM Huawei
Type: OptiXtrans E6616
Product: Dwdm Module
Installation: 19 Inch Cabinet
Highlight:

19 Inch Cabinet DWDM Huawei

,

200Gbit/S DWDM Huawei

,

OptiXtrans E6616 Dwdm Module
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OptiXtrans E6616
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description
Product Introduction

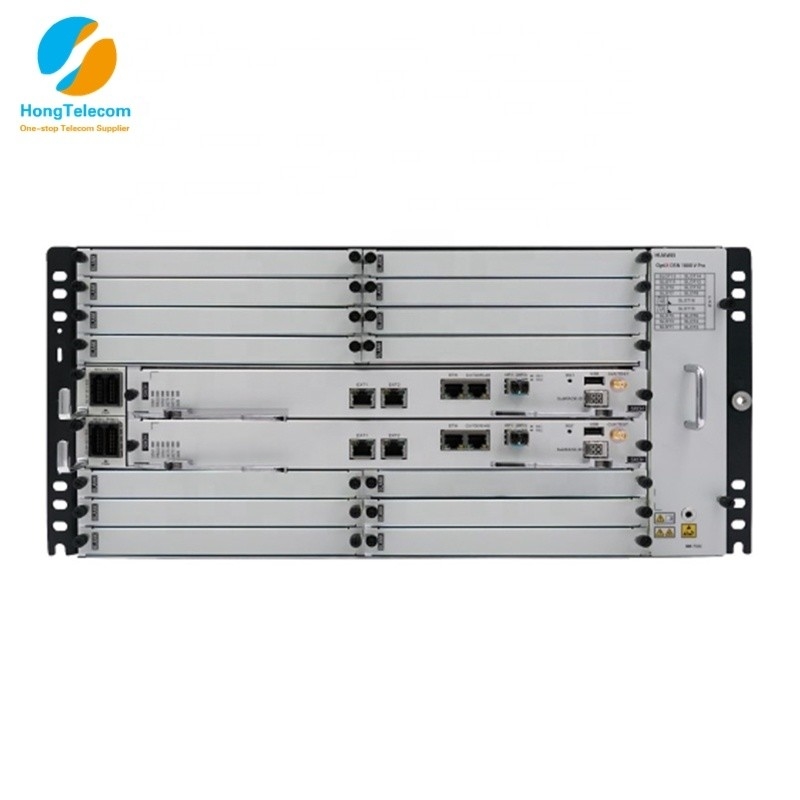

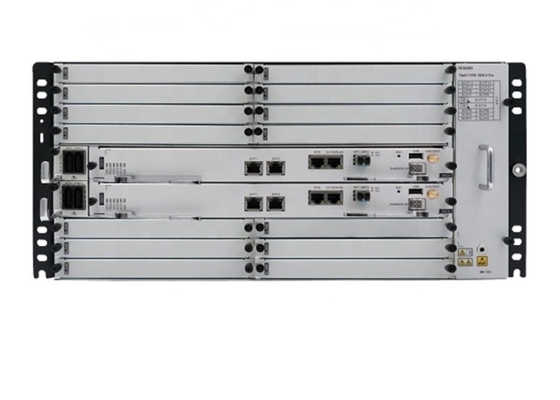

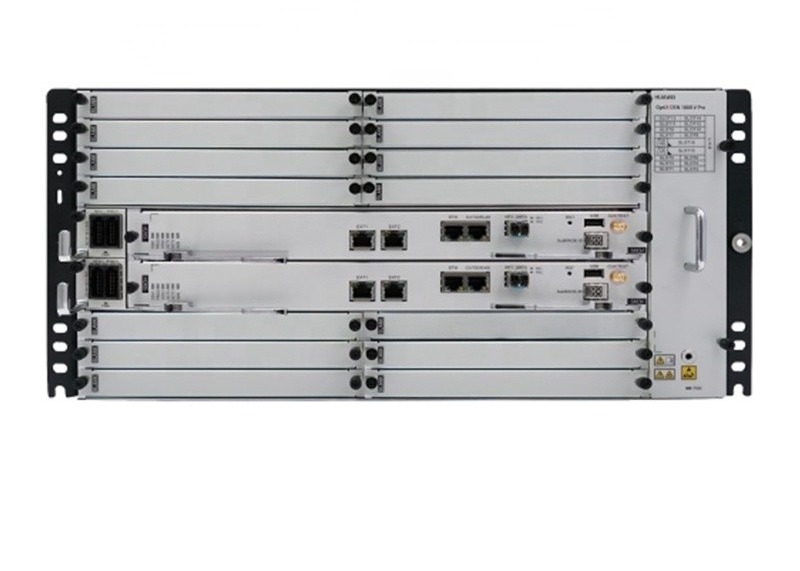

Product Appearance






Product Specifications
Subrack dimensions (mm)
221.5 x 220 x 442 (excluding mounting ears)
Weight (empty chassis, without packaging and SCC boards)
 * 10.6 kg (DC Chassis)
* 12.3 kg (AC Chassis: Dual power supplies)
* 14.5 kg (AC Chassis: Dual power supplies)
Installation mode
* 19-inch cabinet
* ETSI 300 mm deep cabinet, such as A63B, and N63B
Number of service board slots
 * DC chassis: 14
* AC chassis: 12
Max. number of wavelengths
DWDM 80
CWDM  8
Center wavelength range
DWDM: 1529.16 nm to 1560.61 nm (C band, ITU-T G.694.1)
CWDM: 1471 nm to 1611 nm (S+C+L band, ITU-T G.694.2)
Max. rate per channel
200 Gbit/s
Line rate
2.5 Gbit/s, 10 Gbit/s, 100 Gbit/s, and 200 Gbit/s
