| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OSN 1800 V |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | TNF3SCC03 | OSN1800 V Dimension: | 221(H)*442(W)*224(D)mm |
|---|---|---|---|
| Max CWDM: | 8 Wave | Max DWDM: | 40 Wave |
| AC Power: | 110~220V | DC Power: | -48/-60V( Support 1+1) |

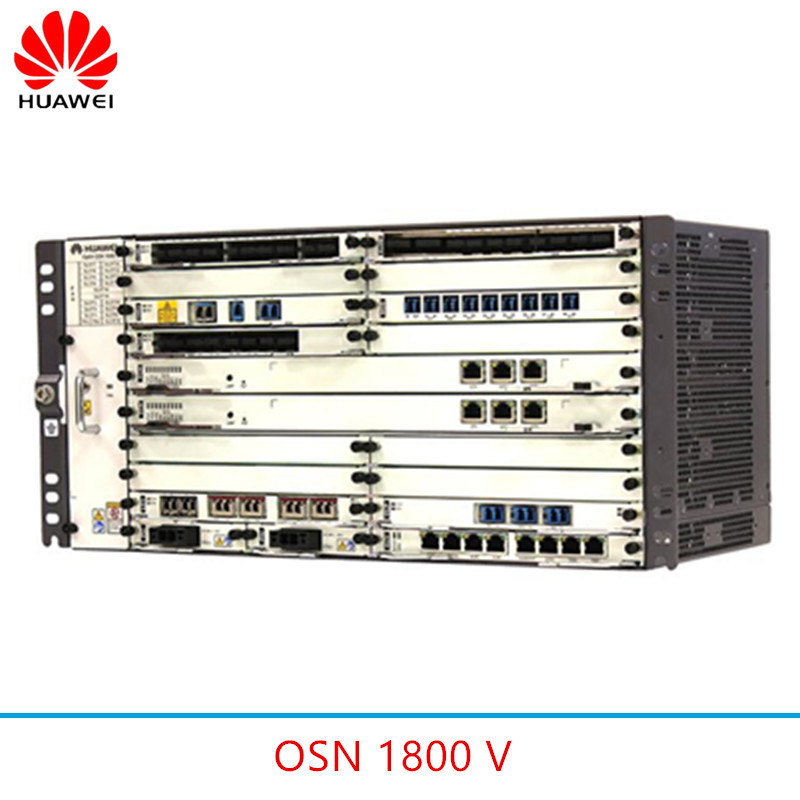

OptiX OSN 1800 V is a new generation of packet enhanced multi service optical transport platform, 5U high integration to fill the needs of the metropolitan device configuration.
Support OTN/PKT unified switching function, Ethernet, TDM, line 2M~10G full service access, and integrated MPLS-TP function, solve the metropolitan area network following fiber resources shortage, as enterprise network, campus network, data center network provides a low cost and high efficiency multi service broadband access solutions.
Part number/ Model Nunber /Description
02300802 TNFK03AFB Optix OSN 1800V, Packet Enhanced Assembly Chassis (5U, DC, with Fiber Storage)
TNF1SCC System control & communication board with OSC
03031PXT TNF1DFIU04 Fiber Interface Board(Single FIU subcard) C/510nm
03022GRR TNF1ST2 BIDIRECTIONAL OPTICAL SUPERVISOR CHANNEL AND TIMING TRANSMISSION
34060674-001 OSC080N01 Optical Transceiver,eSFP,1511nm,155.52Mbps,-4~1dBm,-34.0dBm,LC,80km
03030RLG TNF1X4001 40-Channel Multiplexing/Demultiplexing Board(C_Even,192.10THz~196.00THz,100GHz,LC)
03030ULA TNF2OBU01 C-BAND Optical Amplifier Unit(MAX -3dBm IN and 20dBm OUT,Gain 23dB,With EVOA)
34060568-001 ODX0480T1 Optical Transceiver-TXFP-C band-9.95~11.3Gb/s-LC-SM-40km
34060742 OSX010N30 Optical transceiver,SFP+,1310nm,10Gb/s,-8.2~0.5dBm,-12.6dBm,LC,SM,10km
03030MSG TNF2ELOM01 Enhanced 8 multi-rate ports wavelength conversion board
TNF2LSX 10 Gbit/s wavelength conversion board
03031YXT TNF3SCC03 System Control & Commnication Board with OSC
03023GBW TNZ5UXCMS Universal Cross Connect, System Control and Clock Processing Board.
03054663 TNF1AUX Assistant Channel Interface Board
03031LXD TNF1EX4001 Enhanced 40-Channel Multiplexing/ Demultiplexing Board(C_Even,196.00THZ~192.10THz,100GHz Thermal AWG,LC
03021ETT TNF2LDX 2*10Gbit/s Wavelength Conversion Board (4*192.10~196.00-10G-40km, 1* SFP+_1310mn-I-64.1-STM-64/10GE_LAN/10GE_WAN/ FC1200/OTU2/OTU2e)
88032WUX TNF-SW-V100R006 OSN 1800 Basic Software Package, V100R006 (pER sUBRACK)
82600799 NSDSOTNFUN01 OptiX OSN 1800/1832 OTN Function Fee(Per Subrack)
82600797 NSDSSDHFUN02 OptiX OSN 1800/1832 SDH Function Fee(Per Subrack)
14130525 LC-FC-S-10.LSZH Patch Cord,LC/UPC,FC/UPC, Single-mode,10m, G.657A2,2mm LSZH.
