03030MSG TNF2ELOM01 DWDM OSN1800 V TNF2ELOM Huawei ELOM

03030MSG TNF2ELOM01 DWDM OSN1800 V TNF2ELOM Huawei ELOM

  • 03030MSG TNF2ELOM01 DWDM OSN1800 V TNF2ELOM Huawei ELOM
03030MSG TNF2ELOM01 DWDM OSN1800 V TNF2ELOM Huawei ELOM
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OSN 1800 V
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Model: TNF2ELOM01 OSN1800 V Dimension: 221(H)*442(W)*224(D)mm
Max CWDM: 8 Wave Max DWDM: 40 Wave
AC Power: 110~220V DC Power: -48/-60V( Support 1+1)

03030MSG TNF2ELOM01 DWDM OSN1800 V TNF2ELOM Huawei ELOM


Device Attributes

Part Number
Model
Description
Main Equipment
Case
02300802
TNFK03AFB
Packet Enhanced Assembly Chassis(5U,DC,with Fiber Storage)
02300803
TNFK04AFB
Packet Enhanced Assembly Chassis(5U,AC,with Fiber Storage)
02301517
TNFK17AFB
Packet Enhanced Assembly Chassis(5U,AC,1500W,with Fiber Storage)
02300783
TNFK01AFB
Packet Enhanced Assembly Chassis(5U,DC)
02300801
TNFK02AFB
Packet Enhanced Assembly Chassis(5U,AC)
02113354
TNFBDCCASE02
Case-II(2U,Fan) with fiber storage
02112894
TNF-Case-II
Case-II(2U,Fan)
02113356
TNFBACCASE02
AC Case-II(2U) with fiber storage
Packet License
88031SYV
TNFSTPASST01
TP-Assist Basic Function Fee(Per subrack)
82600798
NSDSMPLSTP02
OptiX OSN 1800/1832 PACKET Function Fee(Contain MPLS-TP Function,Per Subrack)
82600796
NSDSPKTENC02
OptiX OSN 1800 Platform,Universal Line Card Packet Encapsulation Ability fee(Per Unit)
88031XCQ
TNVS0100GE01
Packet Service License(Per 100GE Port)
88031LPF
TN5S0010GE01
Packet Service License(Per 10GE Port)
88031LPH
TN5S0000GE01
Packet Service License(Per GE Port)

OptiX OSN 1800 V is a new generation of packet enhanced multi service optical transport platform, 5U high integration to fill the needs of the metropolitan device configuration.

Support OTN/PKT unified switching function, Ethernet, TDM, line 2M~10G full service access, and integrated MPLS-TP function, solve the metropolitan area network following fiber resources shortage, as enterprise network, campus network, data center network provides a low cost and high efficiency multi service broadband access solutions.

03030MSG TNF2ELOM01 DWDM OSN1800 V TNF2ELOM Huawei ELOM 0

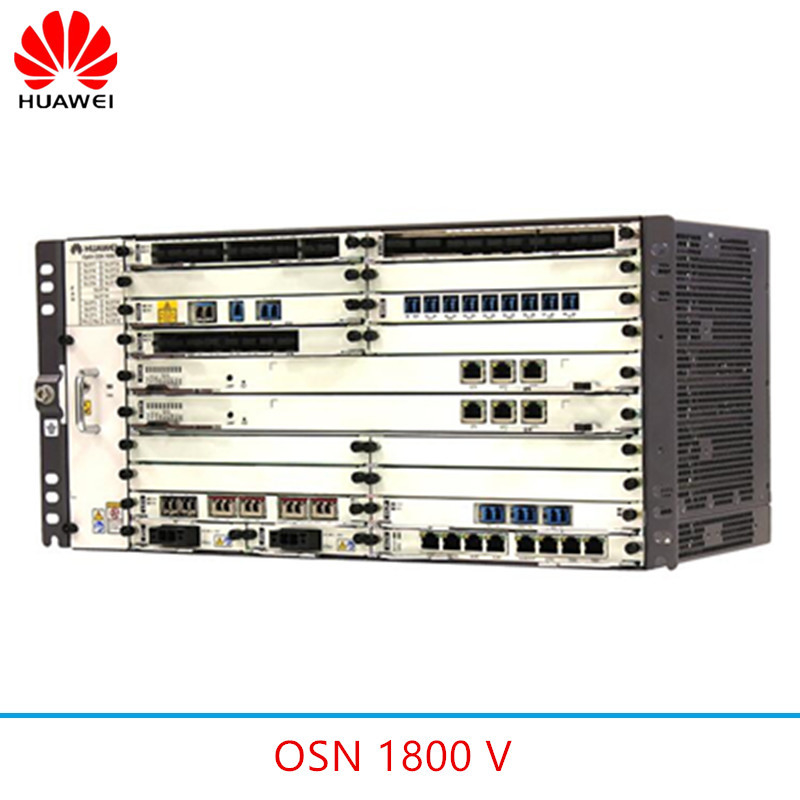

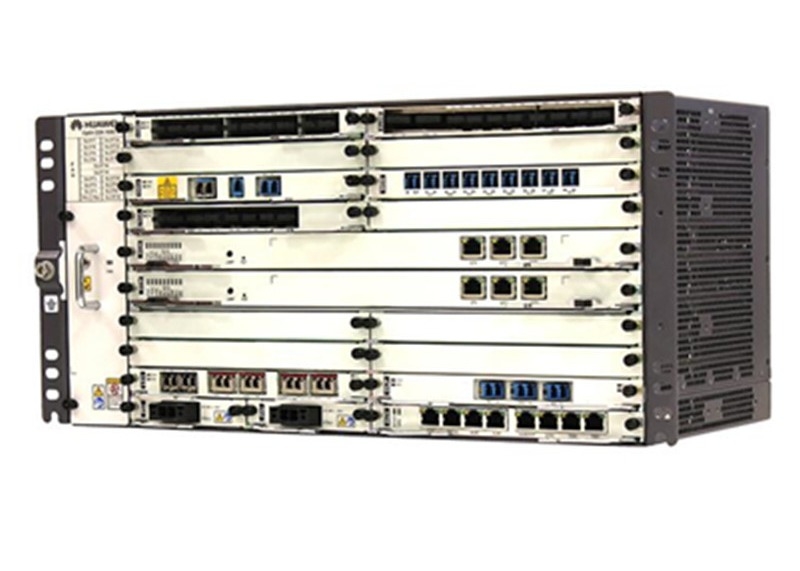

HUAWEI OSN 1800 V
OSN 1800 V
Device Size
221(H)*442(W)*224(D)mm
Business Slot
AD Slot: 12     ;    DC Slot:  14
Capacity
OTN: 800G   ODUK( K=0,1,2,2e,flex )
Max Wave
CWDM: 8 Wave ; DWDM: 40 Wave
Single channel maximum rate
100 Gbits/s (OTU4)
Install mode
19''/23'' Cabinet , ETSI 300mm/600mm cabinet

Power supply mode
AC: 110-220V OR DC: -48/-60V (Support 1+1 backup power input )
