Specifications
|
|
OSN 8800 T16
|

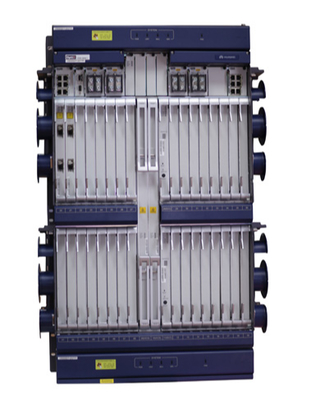

OSN 8800 T32
|
OSN 8800 T64
|
|
Dimensions (mm)
|
|
498 x 295x 450
(W) (D) (H)
|
498 x 295 x 900
(W) (D) (H)
|
498 x 580 x 900
(W) (D) (H)
|
|
Number of slots for service boards
|
|
16
|
32
|
64
|
|
Switch
|
Optical
|
1 to 9-degree ROADM
|
|
|
|
|
Electrical
|
1.6T ODUk(k=0, 1, 2, 2e, 3, 4, flex) 640G VC-4 and 20G VC-3/VC-12 800G Packet
|
Enhanced subrack:
3.2T ODUk(k=0, 1, 2, 2e, 3, 4, flex)1.28T VC-4 and 80G VC-3/VC-12 1.6T Packet General subrack: 1.28T ODUk(k=0, 1, 2, 2e, 3, flex)1.28T VC-4 and 80G VC-3/VC-12
|
Enhanced subrack:
6.4T ODUk(k=0, 1, 2, 2e, 3, 4, flex)1.28T VC-4 and 80G VC-3/VC-12
General subrack:
2.56T ODUk(k=0, 1, 2, 2e, 3, flex)1.28T VC-4 and 80G VC-3/VC-12
|
|
Wavelength range
|
|
DWDM: 1529.16 nm to 1560.61 nm (Band-C, ITU-T G.694.1)
CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)
|
|
|
|
Max. rate per channel
|
|
100Gbit/s (OTU4)
|
|
|
|
Max. distance
|
|
Multi-span transmission (without electrical regeneration): 32 span x 22dB/span (10G), 25 span x 22 dB/span (40G), 20 span x 22 dB/span (100G) Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G)
|
|
|
|
Service types supported
|
|
SDH, SONET, Ethernet, SAN, OTN, Video
|
|
|
|
Line rate
|
|
2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
|
|
|
|
Max. capacity per PID group
|
|
200 Gbit/s
|
|
|
|
Topology
|
|
Point-to-point, chain, star, ring, ring-with-chain, tangent ring,intersecting ring and mesh
|
|
|
|
Redundancy and Protection
|
Network level protection (OTN)
|
Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, ODUk SPRing protection, OWSP
|
|
|
|
|
Network level protection (OCS)
|
Linear MSP, MSP ring, transoceanic MSP ring, SNCP, SNCTP
|
|
|
|
|
Network level protection (Ethernet and packet)
|
DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP
|
DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, PW APS, STP and RSTP, Tunnel APS, VLAN SNCP
|
DBPS, DLAG, ERPS, LAG, LPT, MC-LAG, MSTP, STP and RSTP, VLAN SNCP
|
|
|
Equipment level protection
|
Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy, centralized clock board redundancy, AUX Board 1+1 Redundancy
|
|
|
|
Optical power management
|
|
ALS, AGC, ALC, APE, IPA, OPA
|
|
|
|
Synchronization
|
|
Synchronous Ethernet clock
IEEE 1588v2
2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source
External time source (1PPS+TOD)
|
|
|
|
ASON
|
|
An OTN network supports the Optical-Layer ASON and electrical-Layer ASON. An OCS network supports the SDH ASON feature.
|
|
|
|
Operation Environment
|
|
Subrack temperature:
Long-term operation: 5°C (41 °F) to 45°C (113 °F)
Short-term operation: -5°C (23 °F) to 55°C (131 °F)
Relative humidity:
Long-term operation: 5% to 85%
Short-term operation: 5% to 90%
|
|
|
