02300652 OSN6800 Assembly Subrack Huawei OSN 6800 TN1K3AFB

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN 6800

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OSN6800 Dimensions(mm):	497 (W) X 295 (D) X 400 (H)	OSN6800 Service Boards Slots:	17
OSN6800 Optical Switch:	1 To 9-degree ROADM	OSN6800 Electrical Switch:	180G GE 360G 10GE/ODUk
OSN6800 DWDM Wavelength:	80-ch (max)	OSN6800 CWDM Wavelength:	8-ch (max)
OSN6800 Max. Rate:	100 Gbit/s (OTU4)	OSN6800 Max. Capacity:	120 Gbit/s
OSN6800 Service Types:	SDH, SONET, Ethernet, SAN, OTN, Video	OSN6800 Line Rate:	2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

Product Introduction

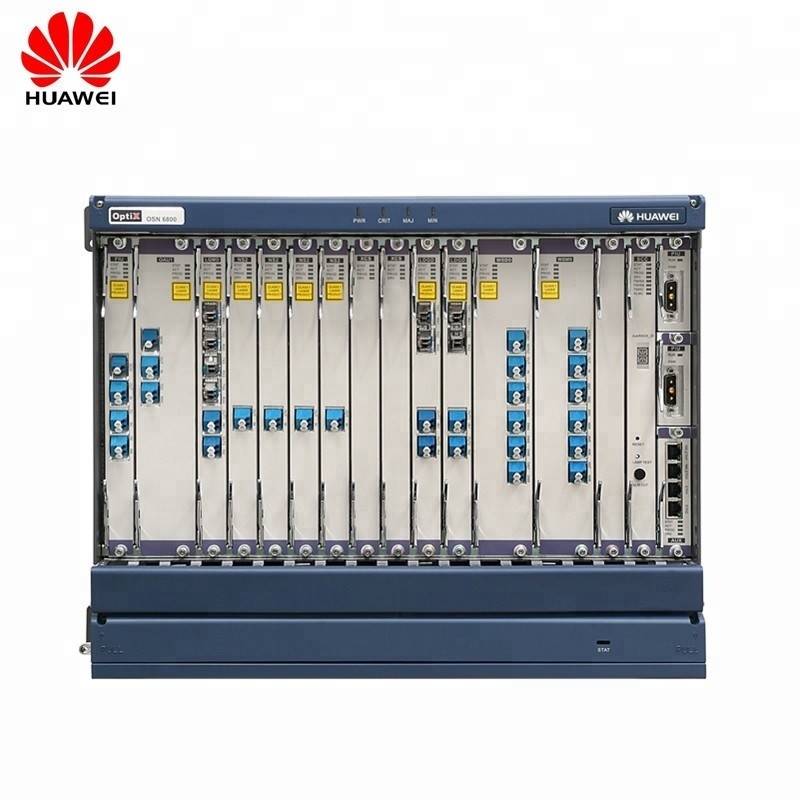

Product Appearance

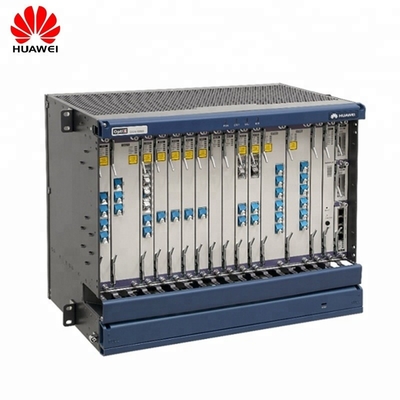

The huawei Optix OSN 6800

Product features

1. Transparent access:
The OptiX OSN 6800 employs the ITU-T digital wrapper protocol that allows transparent access of various protocols, such as IP/Ethernet, ATM, SONET, FC and ESCON, and services at different bit rates such as 16 Mbit/s, 5 Gbit/s, 10 Gbit/s, 40 Gbit/s, and 100 Gbit/s

2. With multiprotocol wavelength technology:
The OptiX OSN 6800 can transmit services of various types (voice, data, storage, and video), in line with the evolution from TDM to Ethernet/data services.

3. Flexible grooming:
The OptiX OSN 6800 supports the innovative three-level traffic grooming infrastructure, which integrates dynamic optical cross-connections (multi-dimensional ROADM), flexible electrical-layer grooming (any ADM), and embedded Layer 2 data processing.

4. Manageability:
Apart from operability, manageability, maintainability, and configurability capabilities, the OptiX OSN 6800 has service management functions as well, including bandwidth management, service convergence, and end-to-end detection.

5.Application and Benefits:
According to information released by Ovum, a well-known consulting firm in the telecom industry, by 2014 Huawei led the global optical network market, WDM/OTN market, and 100G/40G market, as well as the backbone WDM market. Huawei WDM/OTN solution has served 39 of the worldwide top 50 carriers.

Product Specification

The Huawei OptiX OSN 6800 Specifications:

Specifications	OSN 6800
Dimensions (mm)	497 (W) x 295 (D) x 400 (H)
Number of slots for service boards	17
Switch	Optical	1 to 9-degree ROADM
	Electrical	180G GE 360G 10GE/ODUk(k=1, 2, 2e)
Wavelength	DWDM: 80-ch (max), CWDM: 8-ch (max)
Wavelength range	DWDM: 192.1 THz to 196.05 THz (Band-C, ITU-T G.694.1) CWDM: 1471 nm to 1611 nm (Band S+C+L, ITU-T G.694.2)
Max. distance	Multi-span transmission: 32 span x 22 dB/span (10G), 25 span x 22 dB/span (40G), 14 span x 22 dB/span (100G) without electrical regeneration Ultra-long single-span transmission: 1 span x 81 dB/span (10G), 1 span x 71 dB/span (40G)
Max. rate per channel	100 Gbit/s (OTU4)
Service types supported	SDH, SONET, Ethernet, SAN, OTN, Video
Line rate	2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 100 Gbit/s
Max. capacity per PID group	120 Gbit/s
Topology	Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
Redundancy and Protection	Network level protection (OTN)	Optical line protection, intra-board 1+1 protection, client 1+1 protection, ODUk SNCP, tributary SNCP, SW SNCP, MS SNCP, ODUk SPRing protection, OWSP, board-Level protection
	Network level protection (Ethernet)	DBPS, DLAG, ERPS, LAG, LPT, MSTP, STP and RSTP, VLAN SNCP
	Equipment level protection	Power redundancy, fan redundancy, cross-connect board redundancy, system control and communication board redundancy
Optical power management	ALS, AGC, ALC, APE, IPA, OPA
Synchronization	Synchronous Ethernet clock IEEE 1588v2 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source External time source (1PPS+TOD)
ASON	Optical-Layer ASON and electrical-Layer ASON
