02310LHA Tecal RH2285H V2 Huawei Storage Server Universal Hard Disk BC1MSRSCR813

02310LHA Tecal RH2285H V2 Huawei Storage Server Universal Hard Disk BC1MSRSCR813

  • 02310LHA Tecal RH2285H V2 Huawei Storage Server Universal Hard Disk BC1MSRSCR813
02310LHA Tecal RH2285H V2 Huawei Storage Server Universal Hard Disk BC1MSRSCR813
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: RH2285H V2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Type: Rack Processor Type: Xeon
Form Factor: 2U Rack Server USB Port: 6 (front: 2 , Rear: 2, Built-in: 2)
Power Supply: 110 V/220 V AC Or -48 V DC
High Light:

02310LHA Huawei Storage Server

,

RH2285H V2 Huawei Storage Server

,

BC1MSRSCR813

02310LHA Tecal RH2285H V2 Universal Hard Disk BC1MSRSCR813



More Items:

BC1HDD25 02310SJR General-purpose hard disk - 900GB-SAS 6.0Gb / s-10000rpm-2.5 "-64MB and above - Hot Swap - Built-in -3.5-inch handle

BC1HDD26 02310SJS General Purpose Hard Drives - 1000GB-NL SAS 6Gb / s-7200rpm-2.5 "-64M-Hot Swap-Built-in -3.5" Handle Bar

BC1M0NLSAS00 02310MKV Universal Hard Disk - 1000GB-NL SAS-7200rpm-3.5 "-64M - Hot Swap - Internal - Handle

BC1M0NLSAS01 02310MKX General Purpose Hard Drives - 2000GB-NL SAS-7200rpm-3.5 "-64M- Hot Swap - Internal - Handle

BC1M0NLSAS02 02310MLA General-purpose hard disk - 3000GB-NL SAS-7200rpm-3.5 "-64M- Hot Swap - Internal - Handle

BC1HDD36 02310UGB General-purpose hard disk -4000GB-NL-SAS 6Gb / s-7200rpm-3.5inch-64MB and above-Hot-Plug-built-in -3.5-inch handle

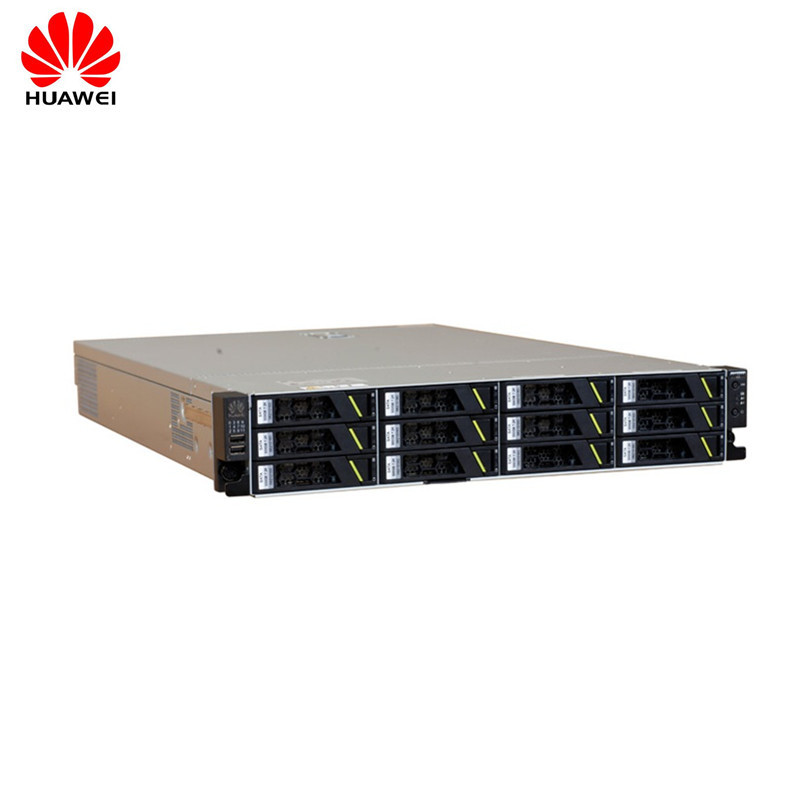

The RH2285H V2 rack server (RH2285H V2) is a next-generation 2U 2-socket rack server. Featuring two Intel® Xeon® E5-2400/ E5-2400v2 series processors, the RH2285H V2 provides large storage capacity, flexible scalability, and superb cost-effectiveness, making it an ideal hardware platform for big data and distributed storage applications.

Model Number
HUAWEI RH2285H V2
Processor
Intel® Xeon® E5-2400/ E5-2400v2 series
Number of processors
1 or 2
Memory
12 DDR3 RDIMMs/LRDIMMs, up to 384 GB
Internal storage
Options:
8 x 2.5" SAS/SATA HDDs or SSDs
12 x 3.5" SAS/SATA HDDs and 2 x 2.5" SAS/SATA HDDs or SSDs
26 x 2.5" SAS/SATA HDDs or SSDs
RAID support
RAID 0, 1, 10, 5, 50, 6, and 60
RAID cache: 512 MB or 1 GB
Power-off protection:
BBU (3 x 24 hours)
Supercapacitor
LOM network port
2 onboard GE ports or 4 onboard GE ports or 2 onboard 10GE ports
USB port
6 (front: 2 , rear: 2, built-in: 2)
Fan module
Support hot-swappable counter-rotating fan modules in N+1 redundancy mode
Power supply
110 V/220 V AC or –48 V DC
Dimensions (H x W x D)
Height: 87.5 mm (3.44 in.)
Width: 447 mm (17.60 in.)
Depth: 740 mm (29.13 in.)
Features



1. Superb performance enriches service applications
1)Supports two Intel® Xeon® E5-2400/ E5-2400v2 series processors. These 4-core, 6-core, 8-core,and 10-core processors are configured based on service requirements, providing flexible computing resources.
2)Supports 12 DDR3 DIMMs, providing a maximum memory capacity of 384 GB.


2.  Flexible scalability supports application acceleration
1) Provides 6 PCIe slots, facilitating high-availability I/O expansion.
2)Supports HUAWEI ES series high-performance PCIe SSD cards and intelligent network interface cards (iNICs), which improve storage and network I/O performance and acceleration applications.
3)Supports high-performance GPUs, improving graphics processing and floating-point computing performances.


3.  Large capacity and high reliability enhance application stability
1)Supports eight 2.5-inch SAS/SATA HDDs or SSDs. Alternatively, twelve 3.5-inch SAS/SATA HDDs and two 2.5-inch SAS/SATA HDDs or SSDs, or twenty-six 2.5-inch SAS/SATA HDDs or SSDs can be installed. Hard disks are hot-swappable. This meets servers’ large application storage capacity requirements.
2)Uses industry-leading RAID technology, supporting RAID 0, 1, 10, 5, 50, 6 and 60, and provides a 512 MB or 1 GB cache; supports an optional BBU and supercapacitor, RAID state migration, RAID configuration memory, self-diagnosis, and remote Web setting to ensure data reliability.
3)Provides multi-level security mechanisms such as the Trusted Platform Module (TPM) and embedded black box function to ensure system reliability.

4.  Elegant design improves IT system efficiency and reduces power consumption
1)Supports hot-swappable redundant PSUs and fan modules and online replacement.
2)Provides an embedded USB flash drive for quick OS startup and embedded virtualization software.
3)Provides WebUIs for managing user access, supporting KVM over IP, virtual media, remote firmware upgrades, startup, shutdown, and reset.
4)Uses 80 Plus Platinum PSUs, which provide a power efficiency of 94% under a 50% load, thus reducing power loss and increasing power utilization.
5)Monitors system power consumption in real-time, implementing comprehensive energy saving policies. Power capping and power control functions control power consumption. Optimized thermal design and highly efficient fan modules are used to reduce power consumption for cooling. Hard disks are not powered on at the same time, and the processor frequency is degraded, reducing the startup power consumption. Partition-based, intelligent fan speed adjustment and intelligent CPU.

5.  frequency adjustment are employed.
These combine to decrease power consumption to form a fully green solution.
