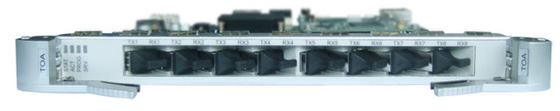

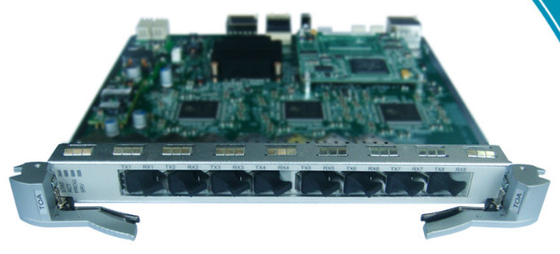

| TNN1TOA: | 8-port Any-rate Tributary Service Processing Board |
|---|
TOA boards provide OTN ports and support electric supervisory channels (ESCs).
Table 1 provides the functions and features supported by TOA boards.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic functions | Processes eight channels of Any services on the client side.
| ||
| Client-side service type | FE: Ethernet service at a rate of 125 Mbit/s GE: Ethernet service at a rate of 1.25 Gbit/s OTU1: OTN service at a rate of 2.67 Gbit/s STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s STM-16/OC-48: SDH/SONET service at a rate of 2.488 Gbit/s DVB-ASI: video service at a rate of 270 Mbit/s SDI: serial digital interface at a rate of 270 Mbit/s HD-SDI: bit-serial digital interface for high-definition television systems at a rate of 1.485 Gbit/s FC100: SAN service at a rate of 1.0625 Gbit/s FC200: SAN service at a rate of 2.125 Gbit/s FC400: SAN service at a rate of 4.25 Gbit/s FICON: SAN service at a rate of 1.0625 Gbit/s FICON Express: SAN service at a rate of 2.125 Gbit/s FICON4G: SAN service at a rate of 4.25 Gbit/s FDDI: SAN service at a rate of 125 Mbit/s ESCON: SAN service at a rate of 200 Mbit/s 3G HD-SDI: video service at a rate of 2.97 Gbit/s | ||
| Client-side optical module | Supports eight small form-factor pluggable (SFP) optical modules or eight GE electrical modules. Switches lasers on or off and provides automatic laser shutdown (ALS). | ||
| Cross-connect capabilities | Supports the cross-connection of ODU0, ODU1, and ODUflex signals. | ||
| Protection schemes | Supports tributary SNCP. | ||
| Supports ODUk SNCP. | |||
| FEC | Supported | ||
| PRBS | Supports PRBS tests for GE GFP_T, STM-1, STM-4, and STM-16 services on the tributary side. | ||
| Alarm and performance management | System side | Reports alarms and performance events for ODU0, ODU1, and ODUFlex signals. | |
| Client side | Manages and monitors client-side services. | ||
| Clock | Synchronous Ethernet |
| |
| Loopback | WDM channel (ODU0/ODU1) | Inloop | Supported |
| Outloop | |||
| Client side | Inloop | Supported | |
| Outloop | |||
| Overhead processing | Extracts the GCC0 byte. Terminates the GCC0 byte and transparently transmits the GCC1/GCC2 byte. | ||
| DCN | Processes eight channels of DCN signals. | ||
The technical specifications of TOA boards include optical port specifications, laser hazard level, mechanical specifications, and power consumption.
Table 1 provides specifications of optical ports on TOA boards.
| Port Type | Description | Service Supported |
|---|---|---|
| I-16-2 km-eSFP | I-16-2 km-eSFP | OTU1, STM-16, OC-48, FC200, FC100, FICON, FICON Express, FDDI, GE, STM-4, OC-12, ESCON, STM-1, OC-3, and DVB-ASI NOTE: Only S-16.1-15 km-eSFP optical modules can be used to receive/transmit FE services. S-16.1-15 km-eSFP optical modules can interconnect only with 100BASE-LX10 optical modules. |
| S-16.1-15 km-eSFP | S-16.1-15 km-eSFP | |
| L-16.1-40 km-eSFP | L-16.1-40 km-eSFP | |
| L-16.2-80 km-eSFP | L-16.2-80 km-eSFP | |
| 1000BASE-BX10-U-eSFP | 1000BASE-BX10-U-eSFP | GE |
| 1000BASE-BX10-D-eSFP | 1000BASE-BX10-D-eSFP | |
| 1000BASE-BX-U-eSFP | 1000BASE-BX-U-eSFP | |
| 1000BASE-BX-D-eSFP | 1000BASE-BX-D-eSFP | |
| 1000BASE-LX-10 km-eSFP | 1000BASE-LX-10km-eSFP | GE, FC100, STM-4, ESCON, STM-1, FE, and DVB-ASI |
| 1000BASE-LX-40 km-eSFP | 1000BASE-LX-40 km-eSFP | |
| 1000BASE-ZX-80 km-eSFP | 1000BASE-ZX-80 km-eSFP | |
| 2.125 Gbit/s multirate-0.5 km-eSFP | 2.125 Gbit/s multirate-0.5 km-eSFP | FC200, GE, FC100, and FE |
| 1.25 Gbit/s multirate (CWDM)-40 km-eSFP | 1.25 Gbit/s multirate (CWDM)-40 km-eSFP | GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, and DVB-ASI |
| 2.67 Gbit/s multirate (CWDM)-80 km-eSFP | 2.67 Gbit/s multirate (CWDM)-80 km-eSFP | OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI, and FE |
| 2.67 Gbit/s multirate (DWDM)-120 km-eSFP | 2.67 Gbit/s multirate (DWDM)-120 km-eSFP | OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI, and FE |
| 0.1 Gbit/s to 3 Gbit/s multirate-10 km-Video eSFP | 0.1 Gbit/s to 3 Gbit/s multirate-10 km-video eSFP | DVB-ASI, SDI, HD-SDI, and 3G HD-SDI |
| 4.25 Gbit/s multirate-0.3 km-eSFP | 4.25 Gbit/s multirate-0.3 km-eSFP | FC400 and FICON 4G |
| 4.25 Gbit/s multirate-10 km-eSFP | 4.25 Gbit/s multirate-10 km-eSFP |
The laser hazard level of TOA boards is HAZARD LEVEL 1, indicating that the maximum power launched by the board is less than 10 dBm (10 mW).
The mechanical specifications of TOA boards are as follows:
The maximum power consumption of the TOA board at room temperature (25°C) is 25 W.
