Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNN1HUNQ2 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TNN1HUNQ2: | 4x10G Hybrid Service Processing Board | Port: | Shenzhen |
|---|

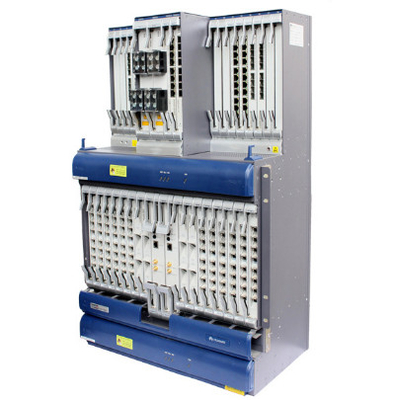

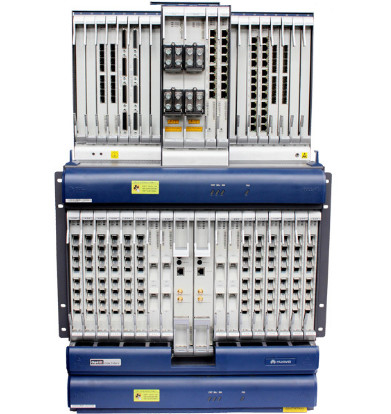

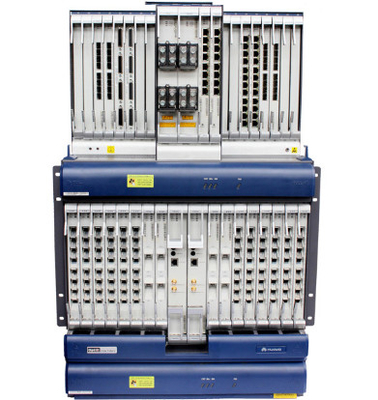

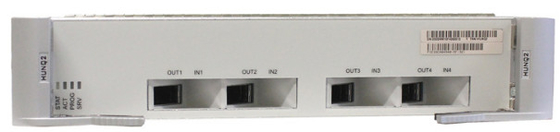

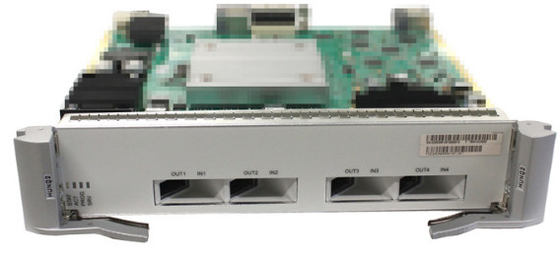

An HUNQ2 board receives mixed signals of STM-16/STM-64/GE/nGE/10GE services with the total bandwidth not higher than 40 Gbit/s from the backplane, encapsulates them into ODU0/ODU1/ODUflex/ODU2/OTU2 units, and transmits them out through an optical port.
An HUNQ2 board provides different functions and features, depending on the received signals. Table 1, Table 3, and Table 2 list the functions and features supported by an HUNQ2 board.
| Function and Feature | Description |
|---|---|
| Basic functions |
NOTICE: The board capacity is license-controlled. One license provides a 10 Gbit/s capacity, and one board provides a maximum of 40 Gbit/s capacity. The board license is granted on per-port basis. If STM-16, GE, or nGE services are configured, the board supports a maximum of hybrid transmission of 30GE packet services and 10 Gbit/s SDH services. |
| Optical module specifications |
|
| FEC coding |
NOTE: The boards using different FEC coding schemes cannot interconnect with each other. |
| Synchronization |
|
| Alarm and performance monitoring | Monitors bias current and operating temperature of lasers and monitors optical power. |
| Automatic search for optical fibers | Supported |
| Maintenance features |
|
| Automatically switched optical network (ASON) | Supports SDH ASON. |
| Function and Feature | Description | |
|---|---|---|
| Basic functions | Receives a maximum of 24xGE or 4x10GE packet services signals from the backplane, encapsulates them into ODU0/ODUflex/ODU2/OTU2 units, and transmits them out through an optical port. The service mapping paths are as follows:
| |
| Service specifications | Processing capability | 40 Gbit/s |
| Service bearer modes | MPLS: supported | |
| QinQ: supported | ||
| Port: supported | ||
| Pseudo wire (PW) specifications | Maximum number of PWs: 16K bidirectional static PWs | |
| Maximum number of multi-segment PWs (MS-PWs): 8K | ||
| Tunnel specifications | Maximum number of unidirectional tunnels: 16K (Bidirectional and unidirectional MPLS tunnel resources are shared.) | |
| Maximum number of bidirectional tunnels: 8K (Bidirectional and unidirectional MPLS tunnel resources are shared.) | ||
| Maximum frame length (MFL) for ports | The MFL cannot be set. The maximum length supported is 9532 bytes. The maximum length of each packet that enters or exits the port is restricted by the MFL. | |
| Maximum transmission unit (MTU) for services | The MTU can be set to a value ranging from 64 bytes to 9600 bytes for packet services carried by PWs. The MTU cannot be set for packet services carried in other modes. | |
| Ethernet service types | E-Line: supports a maximum of 8K E-Line services. | |
E-LAN:
| ||
| E-Aggr: not supported | ||
| Ethernet data frame format | Supports frame encapsulation in IEEE 802.3, Ethernet II, or IEEE 802.1q/p format. | |
| Maximum number of QinQ links | 4K | |
| Jumbo frame | Supports a maximum of 9600-byte jumbo frames. | |
| Protection schemes | Tunnel APS | Supports 1+1 tunnel APS (single-ended/dual-ended) and 1:1 tunnel APS (dual-ended) in compliance with ITU-T Y.1720 and ITU-T G.8131. Maximum number of tunnel APS protection groups:
|
| PW APS | Supports 1+1 PW APS (single-ended/dual-ended), 1:1 PW APS (dual-ended), and PW FPS (single-ended) in compliance with ITU-T Y.1720 and ITU-T G.8131 (FPS is the abbreviated form of fast protection switching). Maximum number of PW APS protection groups:
Maximum number of members bound to a PW APS protection group: 512 NOTE:
| |
| MRPS | Supports MPLS-TP Ring Protection Switching (MRPS).
| |
| LAG |
| |
| MC-LAG | Supports MC-LAGs in compliance with IEEE 802.3ad. | |
| MSTP | Supports MSTP in compliance with IEEE 802.1s. | |
| LPT | Supports LPT protocol processing on the network-to-network interface (NNI) side but not on the UNI side. | |
| Maintenance features | ETH OAM | Ethernet Service OAMa: Supports continuity check (CC), loopback (LB), and linktrace (LT). These functions comply with IEEE 802.1ag. Supports loss measurement (LM) and two-way delay measurement (2DM). These functions comply with ITU-T Y.1731. Maximum number of OAM resources:
|
Ethernet Port OAMa: not supported | ||
| Distributed/Centralized MPLS OAM | MPLS tunnel OAMa: Supports connectivity verification (CV), fast failure detection (FFD), backward defect indication (BDI), forward defect indication (FDI), tunnel ping, and tunnel traceroute. These functions comply with ITU-T Y.1711. Maximum number of OAM resources:
| |
MPLS PW OAMa: Supports CV, FFD, BDI, FDI, PW ping, and PW traceroute. These functions comply with ITU-T Y.1711. Maximum number of OAM resources:
| ||
| MPLS-TP OAM | MPLS-TP tunnel OAMa: Supports CC, remote defect indication (RDI), alarm indication signal (AIS), LB, LT, LM, locked (LCK), test (TST), one-way delay measurement (1DM), and 2DM. These functions comply with ITU-T G.8113.1. Maximum number of OAM resources:
| |
MPLS-TP PW OAMa: Supports CC, RDI, AIS, LB, LT, LM, LCK, TST, client signal fail (CSF), 1DM, and 2DM. These functions comply with ITU-T G.8113.1. Maximum number of OAM resources:
| ||
| Loopback capabilities | PHY layer at packet virtual ports: not supported | |
| MAC layer at packet virtual ports: not supported | ||
| RMON | Supported | |
| Port Mirroring | Supports mirroring at ingress ports. | |
| Inband data communication network (Inband DCN) | Supported | |
| Link Layer Discovery Protocol (LLDP) | Supported | |
| Hierarchical quality of service (HQoS) | Supports the service-based weighted random early detection (WRED) policy, port-based WRED policy, weighted fair queuing (WFQ) policy, PW policy, QinQ policy, virtual user-network interface (V-UNI) ingress policy, V-UNI egress policy, port policy, and port shaping. | |
| IGMP Snooping | Protocol enabling | Supported |
| Port aging time | Supported | |
| Fast leave | Supported | |
| Discarding of unknown multicast packets | Supported | |
| Static multicast entries | Supported | |
| Querying of electronic labels | Supported | |
NOTE: a:
| ||
| Function and Feature | Description |
|---|---|
| Basic functions | Receives a maximum of 4xSTM-16 or 4xSTM-64 SDH services signals from the backplane, encapsulates them into ODU1/ODU2/OTU2 units, and transmits them out through an optical port. The service mapping paths are as follows:
|
| Service processing | Supports VC-12, VC-3, VC-4 services as well as VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c concatenated services. |
| Overhead processing |
|
| Protection schemes |
|
| Maintenance features | Supports inloops and outloops on VC-4 paths. |
The technical specifications of HUNQ2 boards include the parameters specified for optical ports, laser safety class, mechanical specifications, and power consumption.
| Port type | Description |
|---|---|
| 10km 10Gbit/s | 10km 10Gbit/s Multirate optical interfaces |
| 40km 10Gbit/s | 40km 10Gbit/s Multirate optical interfaces |
| 80km 10Gbit/s | 80km 10Gbit/s Multirate optical interfaces |
| 0.3km 10Gbit/s | 0.3km 10Gbit/s Multirate optical interfaces |
| Parameter | Value |
|---|---|
| DWDM | |
| Nominal bit rate | 10709225 kbit/s |
| Type of fiber | Single-mode LC |
| Transmission distance (km) | 40 |
| Launched optical power range (dBm) | -1 to 2 |
| Central frequency (THz) | 192.10 to 196.00 |
| Central frequency deviation (GHz) | ±5 |
| Receiver sensitivity (dBm) | -16 |
| Minimum overload (dBm) | 0 |
| Maximum allowed dispersion (ps/nm) | 800 |
| Minimum extinction ratio (dB) | 10 |
| Maximum -20 dB spectral width (nm) | 0.3 |
| Minimum side mode suppression ratio (dB) | 35 |
| Parameter | Value | |
|---|---|---|
| DWDM | ||
| Nominal bit rate | 10709225 kbit/s | |
| Type of fiber | Single-mode LC | |
| Transmission distance (km) | 40 | 80 |
| Launched optical power range (dBm) | -1 to 2 | -1 to 3 |
| Central frequency (THz) | 192.10 to 196.00 | 192.10 to 196.00a |
| Central frequency deviation (GHz) | ±10 | ±10 |
| Receiver sensitivity (dBm) | -16 | -24 |
| Minimum overload (dBm) | 0 | -9 |
| Maximum allowed dispersion (ps/nm) | 800 | 1600 |
| Minimum extinction ratio (dB) | 10 | 8.2 |
| Maximum -20 dB spectral width (nm) | 0.3 | 0.3 |
| Minimum side mode suppression ratio (dB) | 35 | 30 |
a: In a DWDM system, this module currently supports waves operating at the following frequencies: 193.2 THz, 193.3 THz, 193.4 THz, 193.5 THz, 193.6 THz, 195.6 THz, 195.7 THz, 195.8 THz, 195.9 THz and 196.0 THz. | ||
| Parameter | Value |
|---|---|
| CWDM | |
| Nominal bit rate | 10709225 kbit/s |
| Type of fiber | Single-mode LC |
| Transmission distance (km) | 70 |
| Launched optical power range (dBm) | 0 to 4 (1471 nm to 1571 nm) 0 to 3 (1591 nm to 1611 nm) |
Nominal center wavelength (nm) | 1471 to 1611 |
Center wavelength deviation (nm) | ±6.5 |
| Receiver sensitivity (dBm) | -23 (1471 nm to 1551 nm) -22 (1571 nm) -21 (1591 nm to 1611 nm) |
| Minimum overload (dBm) | -9 |
| Maximum allowed dispersion (ps/nm) | 1400 |
| Minimum extinction ratio (dB) | 8.2 |
| Maximum -20 dB spectral width (nm) | 1 |
| Minimum side mode suppression ratio (dB) | 30 |
The laser safety class of the optical port on an HUNQ2 board is CLASS 1. That is, the maximum launched optical power of the optical port is lower than 10 dBm (10 mW).
The mechanical specifications of an HUNQ2 board are as follows:
The maximum power consumption of an HUNQ2 board at room temperature (25ºC) is 142 W.
