| TNN1HUNS306: | Default License Capacity: 1x10 Gbit/s |
|---|

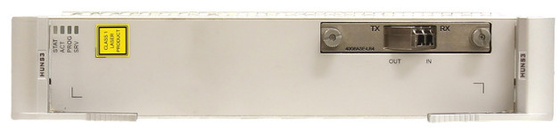

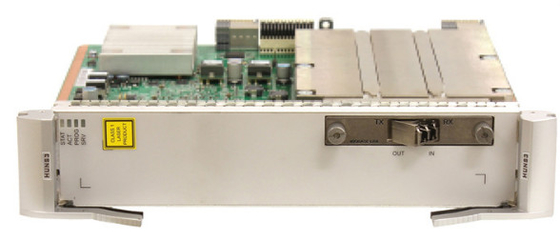

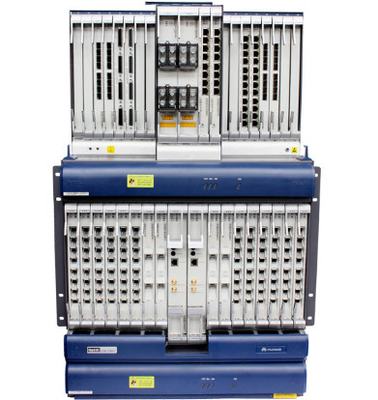

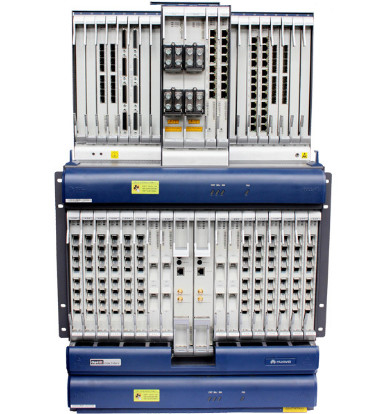

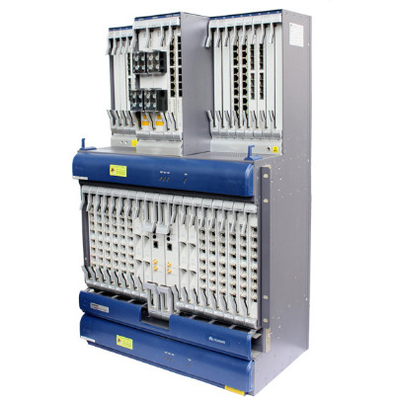

An HUNS3 board receives mixed signals of STM-16/STM-64/GE/nGE/10GEservices with the total bandwidth not larger than 40 Gbit/s from the backplane, encapsulates them into ODU0/ODU1/ODUflex/ODU2/ODU3/OTU3 units, and transmits them out through an optical port.
Table 1, Table 2, and Table 3 list the functions and features supported by HUNS3 boards.
| Function and Feature | Description |
|---|---|
| Basic functions |
NOTICE: The board capacity is license-controlled. One license provides a 10 Gbit/s capacity and one board provides a maximum capacity of 40 Gbit/s. The board license is granted on a per-board basis. If STM-16, GE, or nGE services are configured, a maximum of 30GE packet services and 10 Gbit/s SDH services are supported. |
| Optical module specifications |
|
| Error correction coding |
NOTE: HUNS3 boards using different error correction coding schemes cannot interconnect with each other. |
| Synchronization |
|
| Alarm monitoring and performance monitoring | Monitors the bias current and operating temperature of lasers, and the optical power. |
| Automatic fiber search | Supported |
| Maintenance features |
|
| Automatically switched optical network (ASON) | Supports SDH ASON. |
| Function and Feature | Description | |
|---|---|---|
| Basic functions | Receives a maximum of 24xGE or 4x10GE packet service signals from the backplane, encapsulates the received signals into ODU0/ODUflex/ODU2/ODU3/OTU3 units, and sends out the multiplexed signals from its optical port. The service mapping paths are as follows:
| |
| Service specifications | Processing capability | 40 Gbit/s |
| Service carrying modes | MPLS: supported | |
| QinQ: supported | ||
| Port: supported | ||
| Pseudo wire (PW) specifications | Maximum number of PWs: 16K bidirectional static PWs. | |
| Maximum number of multi-segment PWs (MS-PWs): 8K | ||
| Tunnel specifications | Maximum number of unidirectional tunnels: 16K (Unidirectional and bidirectional MPLS tunnel resources are shared.) | |
| Maximum number of bidirectional tunnels: 8K (Unidirectional and bidirectional MPLS tunnel resources are shared.) | ||
| MFL for ports | The MFL cannot be set. The maximum length supported is 9532 bytes. The maximum length of each packet that enters or exits the port is restricted by the MFL. | |
| MTU for services | For packet services carried by PWs, HUNS3 boards support the setting of an MTU, which can be set to a value ranging from 64 bytes to 9600 bytes. For packet services carried in other modes, HUNS3 boards do not support the setting of an MTU. | |
| Ethernet service types | E-Line service: supports a maximum of 8K services. | |
E-LAN service:
| ||
| Ethernet aggregation (E-Aggr) service: not supported | ||
| Formats of Ethernet data frames | Supports frame encapsulation in the IEEE 802.3, Ethernet II, or IEEE 802.1q/p format. | |
| Maximum number of QinQ links | 4K | |
| Jumbo frame | Support a maximum length of 9600 bytes. | |
| Protection schemes | Tunnel APS | Supports 1+1 (single-ended/dual-ended) and 1:1 (dual-ended) tunnel APS in compliance with ITU-T Y.1720 and ITU-T G.8131. Maximum number of tunnel APS protection groups: 1K |
| PW APS | Supports 1+1 PW APS (single-ended/dual-ended), 1:1 PW APS (dual-ended), and PW FPS (single-ended) in compliance with ITU-T Y.1720 and ITU-T G.8131 (FPS stands for fast protection switching). Maximum number of PW APS protection groups: 1K Maximum number of members bound to a PW APS protection group: 512 NOTE: PW APS and tunnel APS share protection group resources. | |
| MRPS | Supports MRPS.
| |
| LAG |
| |
| MC-LAG | Supported, in compliance with IEEE 802.3ad | |
| MSTP | Supported, in compliance with IEEE 802.1s | |
| Link-state pass through (LPT) | Supported on the NNI side but not on the UNI side | |
| Maintenance features | ETH OAM | Ethernet Service OAM*: Supports continuity check (CC), loopback (LB), and linktrace (LT). These functions comply with IEEE 802.1ag. Supports loss measurement (LM) and two-way delay measurement (2DM). These functions comply with ITU-T Y.1731. Maximum number of services supporting ETH OAM:
|
| Ethernet port OAM*: not supported | ||
| Distributed MPLS OAM/Centralized MPLS OAM | MPLS tunnel OAM*: Supports connectivity verification (CV), fast failure detection (FFD), backward defect indication (BDI), forward defect indication (FDI), tunnel ping, and tunnel traceroute. These functions comply with ITU-T Y.1711. Maximum number of services supporting MPLS OAM:
| |
| MPLS PW OAM*: Supports CV, FFD, BDI, FDI, PW ping, and PW traceroute. These functions comply with ITU-T Y.1711. Maximum number of services supporting MPLS OAM:
| ||
| MPLS-TP OAM | MPLS-TP tunnel OAM*: Supports CC, remote defect indication (RDI), alarm indication signal (AIS), LB, LT, LM, one-way delay measurement (1DM), test (TST), locked (LCK), and 2DM. These functions comply with ITU-T G.8113.1. Maximum number of services supporting MPLS-TP OAM:
| |
| MPLS-TP PW OAM*: Supports CC, RDI, AIS, LB, LT, LM, 1DM, TST, LCK, client signal fail (CSF), and 2DM. These functions comply with ITU-T G.8113.1. Maximum number of services supporting MPLS-TP OAM:
| ||
| Loopback capability | PHY layer at packet virtual ports: not supported | |
| MAC layer at packet virtual ports: not supported | ||
| RMON | Supported | |
| Port Mirroring | Supports mirroring at ingress ports. | |
| Inband data communication network (Inband DCN) | Supported | |
| Link Layer Discovery Protocol (LLDP) | Supported | |
| Hierarchical quality of service (HQoS) | Supports the service-based weighted random early detection (WRED) policy, port-based WRED policy, weighted fair queuing (WFQ) policy, PW policy, QinQ policy, virtual user-network interface (V-UNI) ingress policy, V-UNI egress policy, port policy, and port shaping. | |
| Internet Group Management Protocol snooping(IGMP Snooping) | Protocol enabling | Supported |
| Port aging time | Supported | |
| Fast leave | Supported | |
| Discarding of unknown broadcast packets | Supported | |
| Static broadcast entries | Supported | |
| Querying of electronic labels | Supported | |
| NOTE: *: MPLS tunnel OAM, MPLS PW OAM, MPLS-TP tunnel OAM, MPLS-TP PW OAM, and ETH OAM share 2.5K OAM resources. When MPLS OAM and MPLS-TP OAM are configured together, MPLS OAM and MPLS-TP OAM share 2K OAM resources. | ||
| Function and Feature | Description |
|---|---|
| Basic functions | Receives a maximum of 4xSTM-16 or 4xSTM-64 SDH service signals from the backplane, encapsulates the received signals into ODU1/ODU2/ODU3/OTU3 units, and sends out the multiplexed signals from its optical port. The service mapping paths are as follows:
|
| Service processing | Supports VC-12, VC-3, VC-4, VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c services (VC-4-4c, VC-4-8c, VC-4-16c, and VC-4-64c services are concatenated services). |
| Overhead processing |
|
| Protection schemes |
|
| Maintenance features | Supports inloops and outloops on VC-4 paths. |
The technical specifications of HUNS3 boards include the parameters specified for optical ports, laser safety class, mechanical specifications, and power consumption.
| Port type | Description |
|---|---|
| 40GBASE-ZR4 | 80 km 40G two-fiber bidirectional optical interfaces |
| 40GBASE-ER4 | 40 km 40G two-fiber bidirectional optical interfaces |
| 40GBASE-LR4 | 10 km 40G two-fiber bidirectional optical interfaces |
HUNS3 boards support the following wavelengths:
The laser safety class of the optical port on an HUNS3 board is CLASS 1. That is, the maximum launched optical power of the optical port is lower than 10 dBm (10 mW).
The mechanical specifications of an HUNS3 board are as follows:
The maximum power consumption of an HUNS3 board at room temperature (25ºC) is 142 W.
