Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNN1AFO1 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

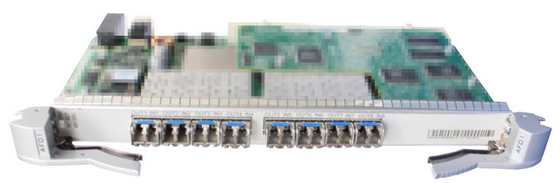

| TNN1AFO1: | 8-port ATM STM-1 Optical Interface Board |
|---|
AFO1 boards receive eight channels of STM-1 ATM services and work with the EG8 to process the received STM-1 ATM services.
Table 1 lists the functions and features supported by AFO1 boards.
| Function and Feature | Description | |
|---|---|---|
| Basic functions | Provides eight STM-1 ATM optical ports to transmit/receive eight ATM services. | |
| Port specifications | Supports different types of standard optical ports, including S-1.1, L-1.1, and L-1.2, to meet requirements for transmission distances. The characteristics of the optical ports comply with ITU-T G.957. | |
| Port characteristics | Automatic laser shutdown | Not supported |
| Auto disabling of port loopback | Supported | |
| Detection and query of optical module information | Supported | |
| Pluggable optical module | Supports SFP optical modules. | |
| Loopback type | Port loopback | Supports inloops and outloops. |
| ATM | Number of V-UNI ports | 8K |
| Number of V-NNI ports | 4K | |
| Cell concatenation | Mode:
| |
| Maximum number of concatenated cells: 31 | ||
| ATM OAM | Type:
| |
| Quantity: 8K | ||
| Service type | CBR UBR UBR+ rt-VBR nrt-VBR | |
| ATM QoS | Supported | |
| Bit error test function | Supports the function of testing bit errors and reports specific performance events in the case of bit errors. | |
| Protection scheme | Packet-based linear MSP | 1+1 |
| 1:1 | ||
| Query of laser transmission distance | Supported | |
The technical specifications of the AFO1 include the parameters specified for optical interfaces, laser safety class, mechanical specifications, and power consumption.
Table 1 lists the parameters specified for the optical interfaces of the AFO1.
| Port type | Description |
|---|---|
| S-1.1 | 15 km STM-1 two-fiber bidirectional optical interfaces |
| L-1.1 | 40 km STM-1 two-fiber bidirectional optical interfaces |
| L-1.2 | 80 km STM-1 two-fiber bidirectional optical interfaces |
The safety class of the laser on the board is Class 1. The maximum launched optical power of the optical interfaces is less than 10 dBm (10 mW).
The mechanical specifications of the AFO1 are as follows:
The maximum power consumption of the AFO1 at room temperature (25°C) is 26 W.
