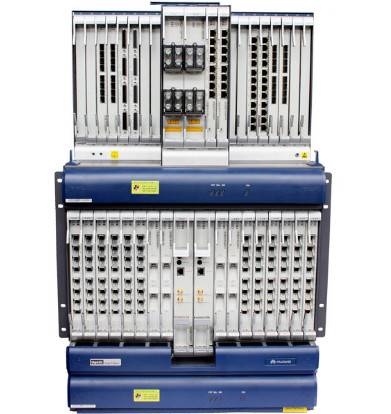

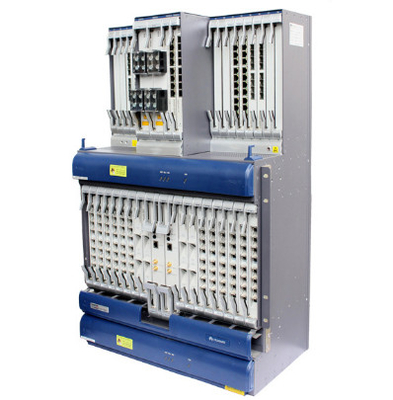

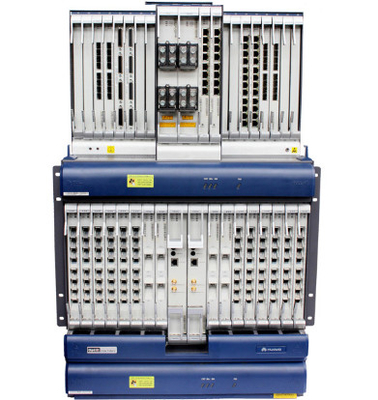

| TNN1EG16: | 16xGE Processing Board |
|---|
EG16 boards receive/transmit 16xGE service signals, forward 16 Gbit/s data, and support quality of service (QoS) functions such as traffic management, congestion control, and scheduling.
Table 1 lists the functions and features supported by EG16 boards.
| Function and Feature | Description | |
|---|---|---|
| Basic functions | Provides 16 GE ports to receive/transmit and process 16xGE service signals. | |
| Port types | Supports 1000BASE-SX, 1000BASE-LX, and 1000BASE-VX optical ports, which use LC connectors and support transmission distances of 0.5 km, 10 km, and 40 km respectively. | |
| Functions when being used with an interface board | Provides ports on the front panel. | |
| Port characteristics | Pluggable optical module | Supports enhanced small form-factor pluggable (eSFP) optical modules. |
| Single-fiber bidirectional optical module | Not supported | |
| Working mode | Full-duplex and auto-negotiation for GE optical ports | |
| Traffic control at ports | Auto-negotiation mode: supported | |
| Non-autonegotiation mode: supported | ||
| Query/Setting of port status | Supported | |
| Query of port types | Supported | |
| Query/Setting of optical power thresholds | Only thresholds for input optical power can be queried and set. | |
| Query/Setting of the unidirectional mode | Not supported | |
| Service specifications | Processing capability | Processes 16 Gbit/s services in full-duplex mode. |
| Service carrying modes | Multiprotocol Label Switching (MPLS): supported | |
| 802.q in 802.q (QinQ): supported | ||
| Port: supported | ||
| Pseudo wire (PW) specifications | Maximum number of PWs: 16K | |
| Maximum number of multi-segment PWs (MS-PWs): 8K | ||
| Tunnel specifications | Maximum number of unidirectional MPLS tunnels: 16K (One bidirectional MPLS tunnel is counted as two unidirectional MPLS tunnels.) | |
| Maximum number of bidirectional MPLS tunnels: 8K (One bidirectional MPLS tunnel is counted as two unidirectional MPLS tunnels.) | ||
| MFL for ports | The MFL can be set to a value ranging from 960 bytes to 9600 bytes for any of ports 1 to 8 and a value ranging from 960 bytes to 1976 bytes for any of ports 9 to 16. After the MFL preset for a port becomes effective, the maximum length of each packet that enters or exits the port is restricted by the MFL. | |
| MTU for services | For packet services carried by PWs, EG16 boards support the setting of an MTU, which can be set to a value ranging from 64 bytes to 9600 bytes. For packet services carried in other modes, EG16 boards do not support the setting of an MTU. | |
| Ethernet service types | E-Line: supports a maximum of 8K E-Line services. | |
| E-LAN: Supports a maximum of 1K E-LAN services. Supports a maximum of 2K static media access control (MAC) addresses for E-LAN services. | ||
| E-Aggr: not supported | ||
| Formats of Ethernet data frames | Supports frame encapsulation in IEEE 802.3, Ethernet II, or IEEE 802.1q/p format. | |
| Maximum number of QinQ links | 4K | |
| Jumbo frame | Ports 1 to 8 support a jumbo frame with a maximum length of 9600 bytes, and ports 9 to 16 support a jumbo frame with a maximum length of 1976 bytes. | |
| Protection schemes | Tunnel APS | Supports the 1+1 (single-ended/dual-ended) and 1:1 (dual-ended) tunnel APS in compliance with ITU-T Y.1720 and ITU-T G.8131. Maximum number of tunnel APS protection groups: 1K |
| PW APS | Supports 1+1 PW APS (single-ended/dual-ended), 1:1 PW APS (dual-ended), and PW FPS (single-ended) in compliance with ITU-T Y.1720 and ITU-T G.8131 (FPS stands for fast protection switching). Maximum number of PW APS protection groups: 1K Maximum number of members bound to a PW APS protection group: 512 NOTE: PW APS and tunnel APS share protection group resources. | |
| MRPS | Supports MRPS.
| |
| LAG | Supports manual link aggregation and static link aggregation. Supports load sharing and load non-sharing modes. Complies with IEEE 802.3ad and IEEE 802.1AX. | |
| MC-LAG | Supported, in compliance with IEEE 802.3ad and IEEE 802.1AX. | |
| MSTP | Supported, in compliance with IEEE 802.1s | |
| LPT | Point-to-point LPT: supported | |
| Point-to-multipoint LPT: supported | ||
| Synchronization | Synchronous Ethernet Clock | Supports 16 channels of synchronous Ethernet clock signals. |
| 1588v2 | Supports 16 channels of IEEE 1588v2 time and clock signals. | |
| Maintenance features | ETH OAM | Ethernet Service OAMa: Supports CC, LB and LT. These functions comply with IEEE 802.1ag. Supports LM and 2DM. These functions comply with ITU-T Y.1731. Number of services that support Ethernet OAM (ETH OAM): 2K |
| Ethernet Port OAMa: Supports OAM auto-discovery, link performance monitoring, fault check, remote loopback, and selfloop check. The Ethernet port OAM function complies with IEEE 802.3ah. Number of ports that support ETH OAM: 2K | ||
| Distributed MPLS OAM/Centralized MPLS OAM | MPLS tunnel OAMa: Supports connectivity verification (CV), fast failure detection (FFD), MPLS tunnel ping, and MPLS tunnel traceroute. The MPLS tunnel OAM function complies with ITU-T Y.1711. Maximum number of tunnels supporting MPLS OAM: 2K | |
| MPLS PW OAMa: Supports CV, FFD, PW ping, and PW traceroute. The MPLS PW OAM function complies with ITU-T Y.1711. Maximum number of PWs supporting MPLS OAM: 2K | ||
| MPLS-TP OAM | MPLS-TP tunnel OAMa: Supports CC, remote defect indication (RDI), alarm indication signal (AIS), LB, LT, LM, 2DM, 1DM, test (TST), and locked (LCK). The MPLS-TP tunnel OAM function complies with ITU-T Y.1731. Maximum number of tunnels supporting MPLS-TP OAM: 2K | |
| MPLS-TP PW OAMa: Supports CC, RDI, AIS, LB, LT, LM, 2DM, 1DM, TST, LCK, and client signal fail (CSF). The MPLS-TP PW OAM function complies with ITU-T Y.1731. Maximum number of PWs supporting MPLS-TP OAM: 2K | ||
| Loopback capability | PHY layer at Ethernet ports: not supported | |
| MAC layer at Ethernet ports: Supports inloops and outloops. | ||
| Remote monitoring (RMON) | Supported | |
| Port Mirroring | Supported | |
| Inband DCN | Supported | |
| LLDP | Supported | |
| Hierarchical QoS (HQoS) | Supports the service-based weighted random early detection (WRED) policy, port-based WRED policy, weighted fair queuing (WFQ) policy, PW policy, QinQ policy, V-UNI ingress policy, V-UNI egress policy, port policy, and port shaping. | |
| Internet Group Management Protocol snooping(IGMP Snooping) | Protocol enabling | Supported |
| Port aging time | Supported | |
| Fast leave | Supported | |
| Discarding of unknown broadcast packets | Supported | |
| Static broadcast entries | Supported | |
| Query of electronic labels | Supported | |
The technical specifications of the EG16 include the parameters specified for optical interfaces, laser safety class, mechanical specifications, and power consumption.
Table 1 lists the parameters specified for the optical interfaces of the EG16.
| Port type | Description |
|---|---|
| 1000BASE-SX | 0.5 km GE two-fiber bidirectional optical interfaces |
| 1000BASE-LX | 10 km GE two-fiber bidirectional optical interfaces |
| 1000BASE-VX | 40 km GE two-fiber bidirectional optical interfaces |
The safety class of the laser on the board is Class 1. The maximum launched optical power of the optical interfaces is less than 10 dBm (10 mW).
The mechanical specifications of the EG16 are as follows:
The maximum power consumption of the EG16 at room temperature (25°C) is 58 W.
