Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNN1PSXCS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

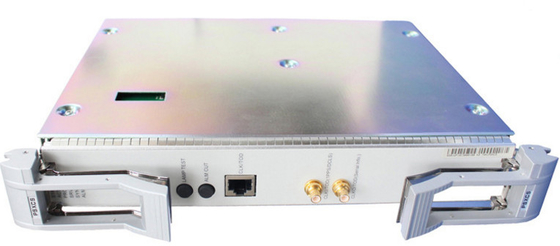

| TNN1PSXCS: | Super Cross-connect And Synchronous Timing Board |
|---|
The PSXCS grooms services and inputs/outputs clock signals.
Table 1 provides the functions and features of the cross-connect unit of the PSXCS.
| Function and Feature | Description | ||
|---|---|---|---|
| Basic functions | Cross-Connect Capability | TNN1PSXCS | |
| Higher order cross-connect capability (Gbit/s) | 360 | ||
| Lower order cross-connect capability (Gbit/s) | 40 | ||
| Packet switching capability (Gbit/s) | 320 | ||
| Access capability | TDM mode (Gbit/s) | 320 | |
| Packet mode (Gbit/s) | 320 | ||
| Service processing |
| ||
| Protection schemes | Supports 1+1 hot standby. The default protection mode is the non-revertive switching mode. | ||
| Others | Supports the query and reporting of the working temperature of the cross-connect and timing board and the entire equipment. | ||
Table 2 provides the functions and features of the timing unit of the PSXCS.
| Function and Feature | Description |
|---|---|
| Basic functions | Provides the standard system synchronization clock. |
| Other functions |
|
| Input and output |
|
The technical specifications of the PSXCS include mechanical specifications, and power consumption.
The mechanical specifications of the PSXCS are as follows:
The maximum power consumption of the PSXCS at room temperature (25°C) is 150 W.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed product: 1 Year
The Support Contacts:
If your products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
