Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TNN1IXCS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| TNN1IXCS: | Infinite Cross-connect And Synchronous Timing Board |
|---|

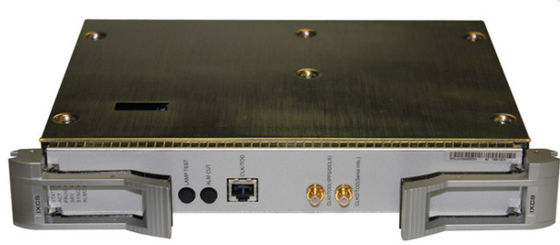

The IXCS board grooms services and inputs/outputs clock signals.
Table 1 provides the functions and features supported by the cross-connect unit of the IXCS board.
| Function and Feature | Description | |
|---|---|---|
| Basic functions | Cross-connect capacity | TNN1IXCS |
| Higher order cross-connect capacity (Gbit/s) | 360 | |
| Lower order cross-connect capacity (Gbit/s) | 80 | |
| OTN cross-connect capacity (Gbit/s) | 560 | |
| TDM access capacity (Gbit/s) | 280 | |
| OTN access capacity (Gbit/s) | 560 | |
| Service processing |
| |
| Protection scheme | Supports 1+1 hot standby. The default reversion mode is the non-revertive switching mode. | |
| Others | Queries and reports the working temperature of the cross-connect and timing board and the entire equipment. | |
Table 2 provides the functions and features supported by the clock unit of the IXCS board.
| Function and Feature | Description |
|---|---|
| Basic functions | Provides the standard clock for system synchronization. |
| Other functions |
|
| Input and output | When used independently:
|
The technical specifications of the IXCS include mechanical specifications, and power consumption.
The mechanical specifications of the IXCS are as follows:
The maximum power consumption of the IXCS at room temperature (25°C) is 78 W.
