Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | SUBRACK |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| OSN7500II: | SUBRACK |
|---|
The technical specifications of the subrack include the dimensions, weight, and maximum power consumption.

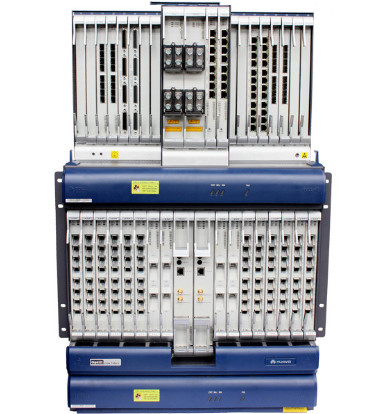

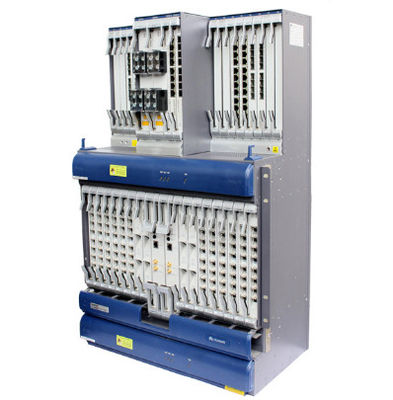

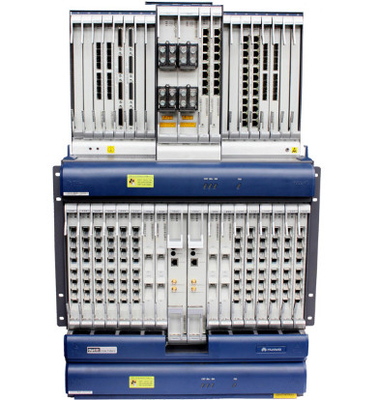

Table 1 lists the technical specifications of the OptiX OSN 7500 II subrack.
| Dimensions (mm) | Weight (kg) |
|---|---|
| 496 (W) x 295 (D) x 800 (H) | 35 (net weight of the subrack that is not installed with boards or fans) |
Table 2 lists the maximum power consumption of the OptiX OSN 7500 II subrack.
| Subrack Type | Maximum Power Consumptiona | Fuse Capacity | Typical Configuration | |
|---|---|---|---|---|
| Typical Power Consumption | Typical Configuration | |||
| OptiX OSN 7500 II subrack | 2300 W | 50 A (TN81PDU); 32 A (DPD63-4-8 PDU) | 795 W |
|
| a: The maximum power consumption refers to the maximum power consumption configuration that the subrack can support and the maximum heat dissipation capability of the subrack. In the actual application, the value is much higher than the power consumption of the subrack in typical configuration. | ||||
In the case of transmission equipment, power consumption is generally transformed into heat consumption. Hence, heat consumption (BTU/h) and power consumption (W) can be converted to each other in the formula: Heat consumption (BTU/h) = Power consumption (W) / 0.2931 (Wh).
Table 3 lists the predicted reliability specifications of the OptiX OSN equipment.
| System Availability | Mean Time to Repair (MTTR) | Mean Time Between Failures (MTBF) |
|---|---|---|
| 0.999997487 | 1 hour | 45.42 years |
