ZXA10 C300, the world's first future-proof and largest capability optical access platform, is developed with mass optical access roll-out as well as economy in mind. Its powerful functions and high performance make mass FTTx roll-out easier than ever before.

        ZXA10 C300 is big OLT equipment with high density, high bandwidth and scalable office end equipment of passive optical access. It supports all kinds of FTTx application modes.

       Addressing all types of FTTx network requirements with the most appropriate

technology, ZTE launched ZXA10 C300, world's first unified platform supporting GPON, EPON and P2P as well as the emerging next generation IEEE 10GEPON and FSAN/ITU-T NG-PON in one platform.

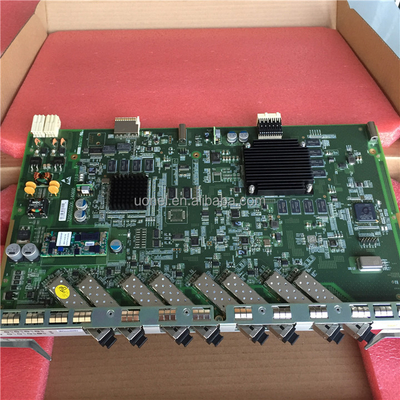

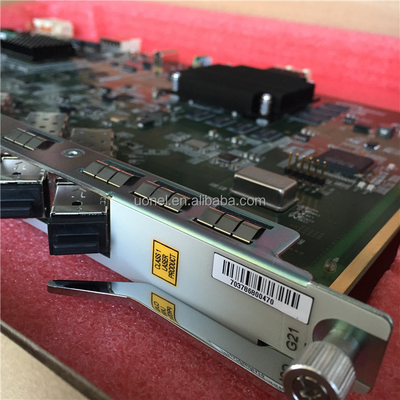

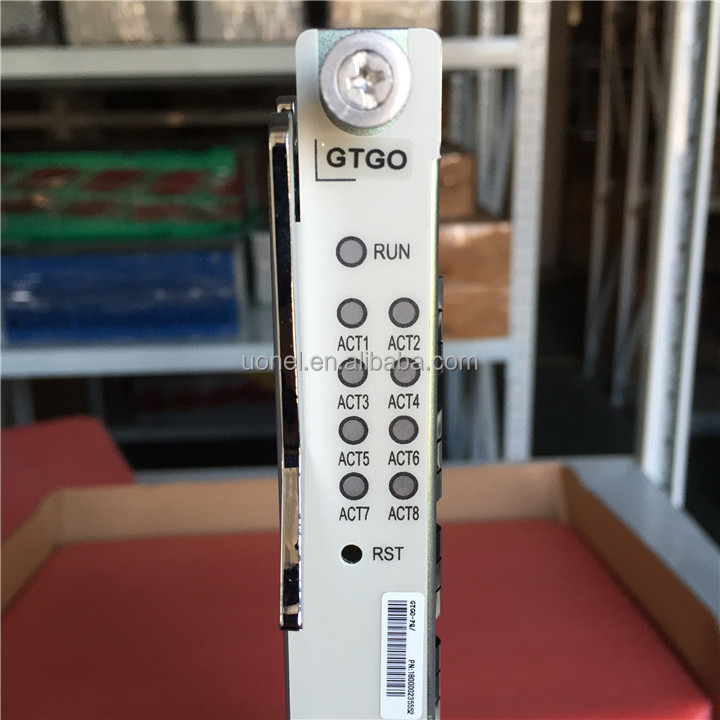

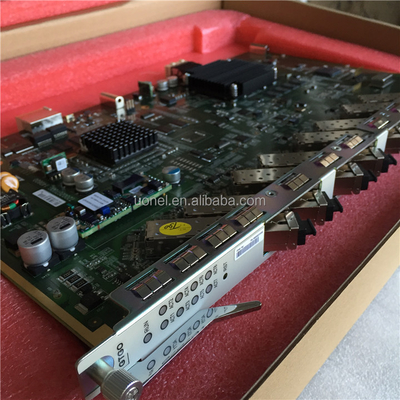

GTGO full equipped with 8 B+ light module, is the 8 port OLT GPON interface board, and the terminal ONT device to achieve the GPON service access.

You can also choose to configure 8 C+ or C++ light modules

GTGO  Basic principle introduction:

Control module to complete the single board software loading, operation control, management and other functions.

Exchange module to achieve the convergence of 8 GPON port signals.

Interface module to realize the mutual conversion between GPON optical signal and Ethernet message.

The power supply module provides a working power supply for each function module in a single board.

The clock module provides a working clock for each function module in a single board.

GPON C+ Optical module introduction:

Form:SFP/ESFP

Rate:1.25Gb/s

Optical connector type:SC/PC

Fiber type: single mode

Maximum light splitting ratio: 1:128
