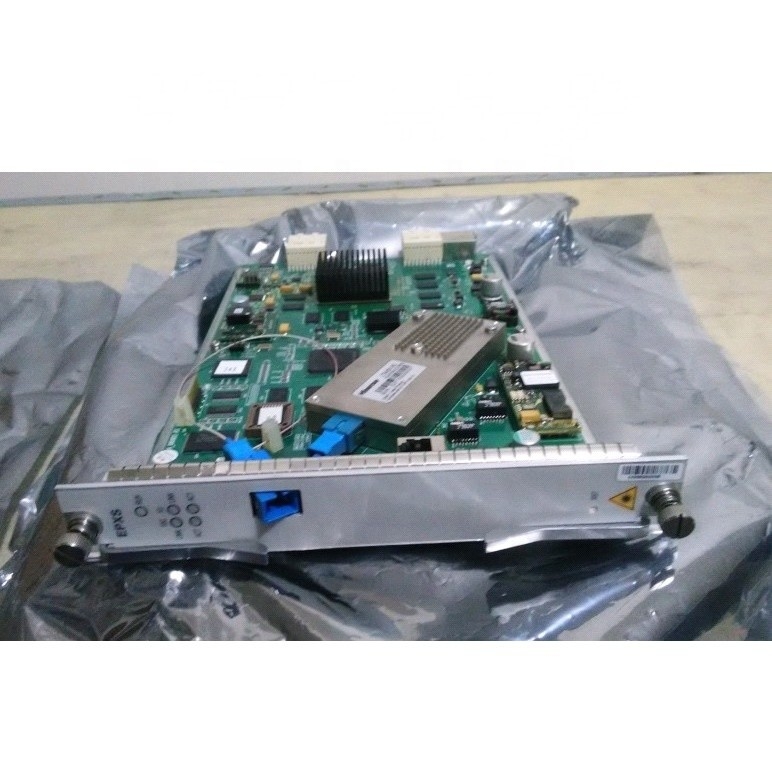

ZTE EPXS CE1B EIT1F EIG GCSD MB6UN EPFC EPFC B GPFA gpfa GPFAE EPFCB for Optical ZXA10 C220

     With the social development in recent years, service demands are ever increasing. Multi-services need more bandwidth for access network. The FTTX solution bases on xPON technology complies with the access network topology features with small-size passive ODN, and excellent adaptability, without electromagnetic and lightning interference to reduce the equipment fault ratio. The distance that is longer than 20 km from the OLT to the ONU is in line with the construction idea of key central offices (CO).

    To meet the operators’ development requirements for xPON technology to provide high-bandwidth, multiple services, QoS, security with efficiency for the users and to reduce network CAPEX (cost and planning on equipment and cables) and OPEX (operation and maintenance cost and services), ZTE launches ZXA10 C220 equipment to provide stable technology and service platform for the access network construction and service

improvement on basis of the thorough comprehension on the network development.

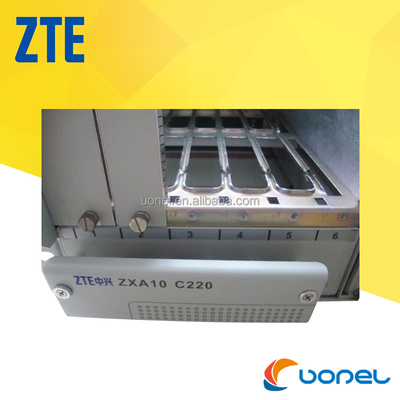

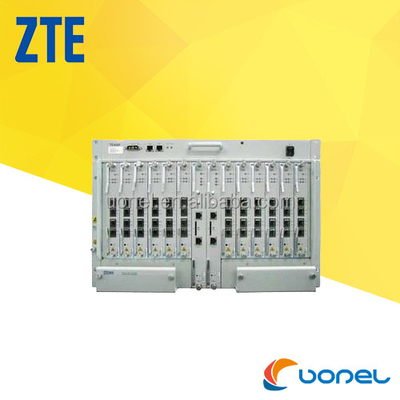

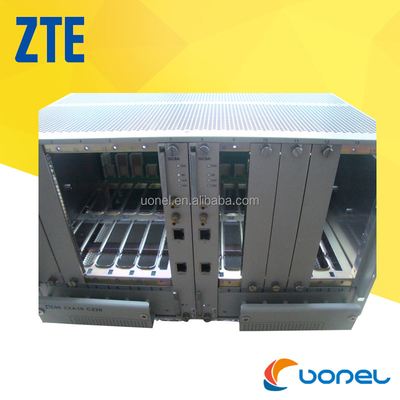

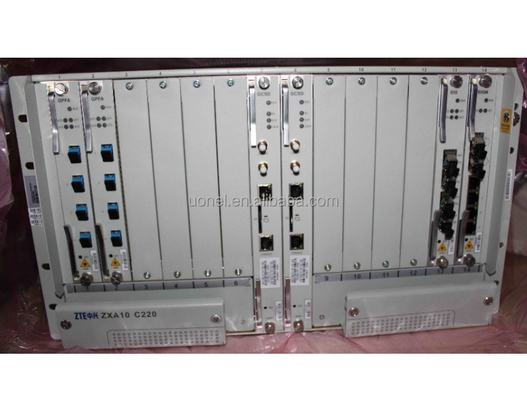

     ZXA10 C220 is big/middle OLT equipment with high density, high bandwidth and scalable office end equipment of passive optical access. ZXA10 C220 is a unified xPON access platform that provides access and management control for a full series of services including HSI, VoIP, TDM, IPTV, CATV, mobile 2G/3G, and WiFi, as well as carrier-class QoS, security, and reliability guarantees. ZXA10 C220 supports EPON, GPON and 10GEPON. It supports kinds of FTTx application modes.

· Multiple interfaces to meet requirements of different scenarios

the system has different kinds of network, service and OAM interfaces, the interfaces are open and compatible.

· High density and performance design

Integrate optical access, data switching and route disposal in one shelf, large amount of subscribers are supported, this help save shelf, rack and equipment room, very easy for investment protection and expansion.

· Carrier class reliability to reduce operation

Key parts of the system support complete redundancy for active/standby unit. On the other hand, fiber protection is supported to assure access of important users.

· Operable and manageable to save OPEX

have good management, monitoring and testing functions for easy maintenance and fault diagnosis. Support local and remote management and terminal management as well.

· Save energy, low power consumption and harmless materials for green communication

it has strict control on power consumption, heat dissipation and noise to ensure the least effect on environment.

· Easy for upgrade and migration

Support local and remote upgrade, it also supports 10G EPON access through inserting 10G EPON card in the existing shelf, this help protect existing investment and provide more bandwidth to subscribers.

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
