Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZXA10 F600G ONU |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | ZXA10 F600 G | Application: | FTTH FTTB FTTX FTTC Network Access Equiment |
|---|---|---|---|
| Model Name: | ZTE Fiber Optic Moderm | Type: | ZTE OUN |
| Brand Name:: | ZTE | Port: | Shenzhen |

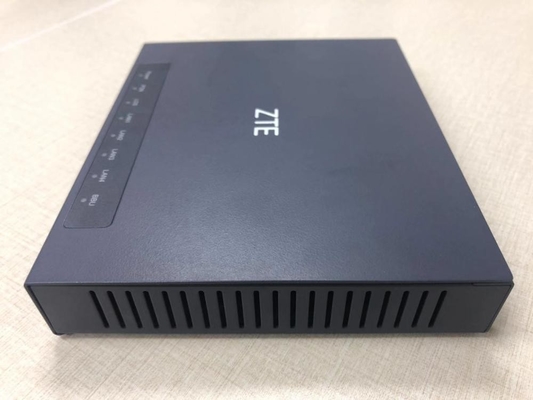

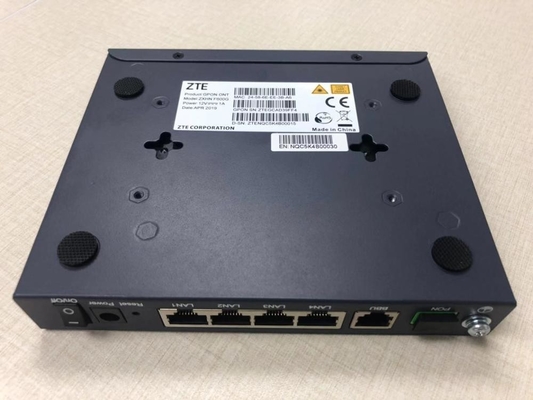

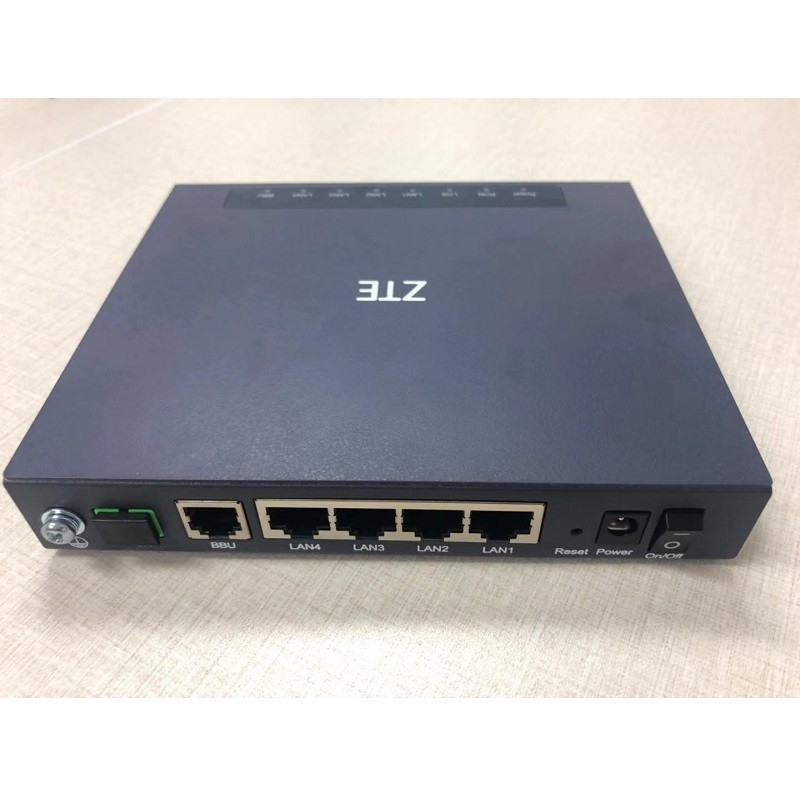

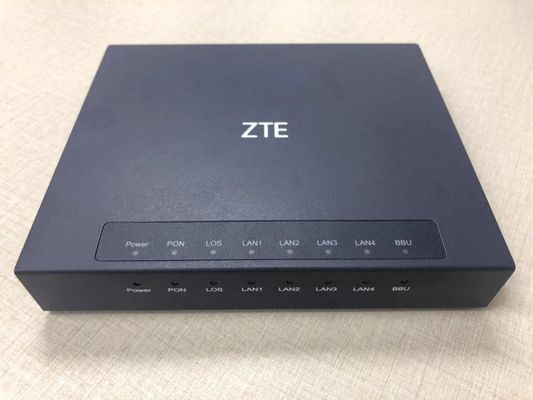

ZXHN F600 is a GPON Optical Network Terminal designed for FTTH scenario. It provides subscribers rich, colorful, individualized, convenient and comfortable services including video (IPTV) and high speed internet access. It has a small, smart appearance and green, energy-saving advantage.
| GPON Interface | Optical port: 1 x GPON interface (SC/PC) |
| Transmission Distance: 0 ~ 20km | |
| Transmit rate: 2.488Gbps downstream; 1.244Gbps upstream | |
| User Network Interface | 4 x10/100/1000Base-T |
| Half/full duplex; Auto MDI/MDIX; Auto negotiation | |
| Optical Module | Receiving: 1480~1500 nm |
| Transmitting: 1290~1330 nm | |
| Receiving Sensitivity: -28dBm | |
| Transmitting Optical Power: 0.5~5dBm | |
| Main Function | Supported service: Internet, IPTV |
| GPON: 8 T-CONTs, 32 GEM Ports | |
| VLAN: 802.1Q, 802.1P, 802.1ad | |
| MAC address table: 256 | |
| Multicast: IGMP v1/v2/v3 Snooping | |
| Multicast group: 256 | |
| QoS: service flow classification based on physical port, Ethernet type; ingress rate limit;egress shaping | |
| Management: local web management, OMCI | |
| Physical Performance | Power consumption: <6W |
| Dimensions: 199mm(W) x 35mm(H) x150mm(D) | |
| Working temperature: 0℃ ~ 40℃ | |
| Working humidity: 5% ~ 95% | |
| Weight: about 260g | |
| Power supply: 12V DC | |
| Mounting mode: Desktop/Wall mounting | |
| Supports hidden and coiled fiber |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
