In regarding of increasing TCO, carriers have been reviewing the value of legacy infrastructure, that is, copper. Copper technology continues to be under development, and provides FTTH-like bandwidth without extra investment in last mile.

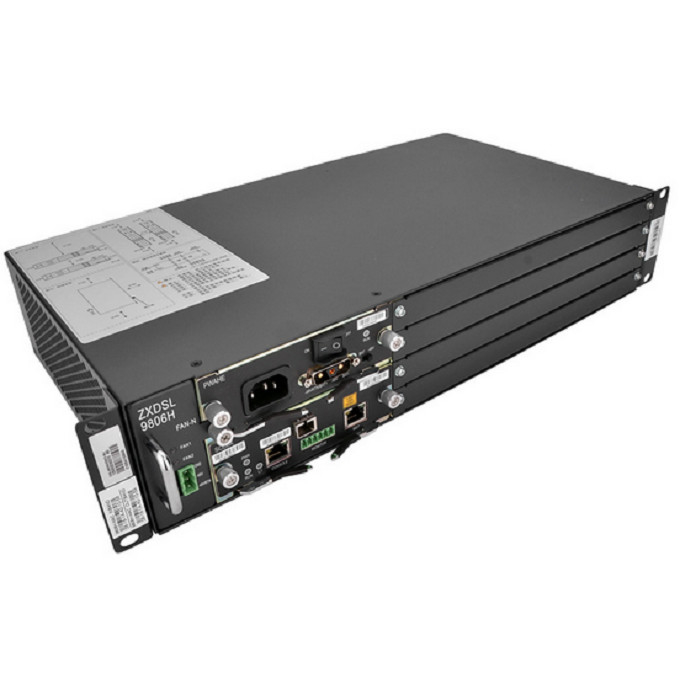

     ZXDSL 9806H, a 2U-heigh copper-based integrated access box, is customized for carriers, provide copper-based high-speed access, realizing rapid network roll-out, improving users’ service experience and building up green broadband.

ZTE DSLAM ZXDSL 9806H all-service access platform

ZTE SCCBK EPON SCCBK GPON E-SCCBK SCCF FEUA FEUB FEUC GFUA GFUB GFUC EPNA GPNB VOPCB

ASTEC PWA SCCB SCCBK OPTIX VSTDC SSTEB ATLC PWDH

Technical Indices

Interfaces
• System Capacity
  4 slots for line card and 1 slot for C&S card and 1 slot for power supply
  96-port ADSL2+, or 64-port VDSL2 per unit
• Network and Subtending Interface
  2 GE or 2 FE interfaces in C&S card for uplink and cascading or subtendingGPON ONT interface
• Subscriber Interface
  24-port ADSL/2/2+ card
  16-port VDSL2 card

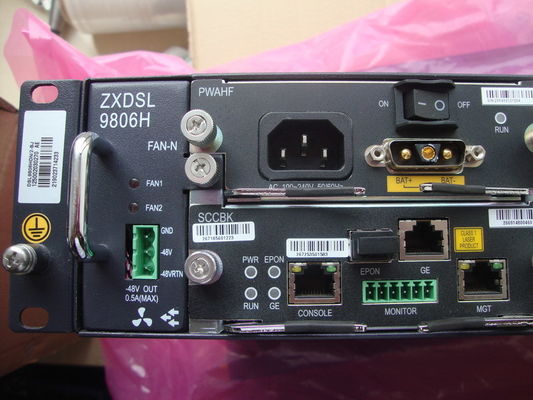

  E-SCCBK .PWAHF .PWAHE.PWDH PWDHE PWDHF

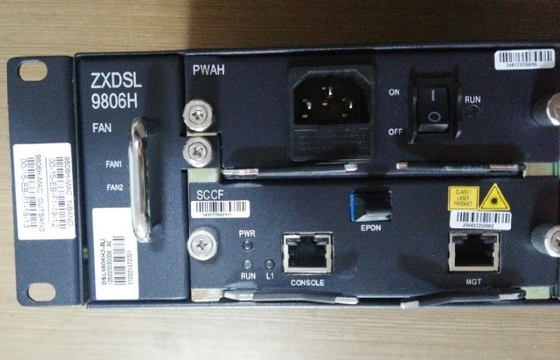

  SCCF -FE

  ATLCZ .ATLCI. ATLDI.ASTEC ASTGC

Protocol
• ATM
  ATM FRUM TM4.0 and I.131
  COS: CBR, rt-VBR, nrt-VBR, UBR

• IP / Ethernet Protocol
  IEEE802.1D, 802.1W, 802.1p, 802.1Q, 802.1x,802.3ad

• Multicast
  256 Multicast Groups
  IGMP router, IGMP Proxy, IGMP Snooping
  MVLAN: Multicast VLAN Register
  CAC( Channel Access Control), PVR( Preview), CDR( Call Detail Record)

• QOS
  Support COS priority based on 802.1p
  Queue Schedule: SP, WRR
  rule-based packet filter, re-location, flow mirror, flow statistics, flow monitoring, port queue scheduling, port rate restriction and VLAN   modification policy.

• Security
  ACL
  IP address, MAC address and port binding
  User port identification such as DHCP Option 82

Stability and Reliability
•Line card hot-swapped
•Uplink port redundancy and trunking
•Ability of fault resumption

O&M
•SNMP V1/2, CLI( Console, Telnet)
•On-Line Test, Remote MODEM Management
•Environment Supervision

Operation Conditions
•Temperature: -5 ºC ~ +45 ºC
•Humidity: 5% ~ 95% non-condensing

Physical Specification
•Unit Dimension: D×W×H= 240mm×482.6mm×88.1mm
•Equipment Weight: 8 kg
•Power supply: -48V DC, -57 VDC ~ -40 VDCor 220V AC, 85V ~ 250V AC
•Power Consumption: 180W in full loadZXDSL

 Features

Compact, large capacity and high performance

• Various uplink interfaces including FE/GE, EPON/GPON and 10G PON, P2P, P2MP, ring, star and chain to meet operators different requirements; ADSL2/2+, VDSL2, SHDSL, FE and POTS downlink

High guarantee in IP QoS

• Supports various QoS mechanisms such as queue scheduling, flow classification, traffic monitoring, port rate limiting and traffic mirroring;

High maintainability, low OPEX

• Unattended, automatic remote management
• Multiple remote test methods, supporting broadband port
• Loop test and internal and external POTS line test
• OLS , auxiliary fiber troubleshooting
• Real-time remote environment checking, including
• Temperature, power and door alarms

Energy saving, environment-friendly

• Lowest power consumption, with average port power
• Low noise for its adjustable-speed, quiet fan
• Harmless, eco-friendly materials

Awards and achievements

• The first small capacity equipment in industry, the longest commercial duration
• Leads VDSL2, supports diversified profiles to meet different application scenarios
• Achieves multiple international/domestic awards

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
