ZXA10 C300 is aconvergent optical-access platform with large capacity and high density. Numerous access approaches are supported and the triple-play services can be realized. The customized scenarios are provided for various networks demands. ZXA10 C300 won the InfoVision Green Broadband Award at Broadband World Forum Europe (BBWF Europe) in 2010.

 ZTE ZXA10 C300 configuration:

2 SCXM control board; (SCXL For Option)

1 GPON or EPON 8 ports board with 8 Modules; (GTGH ETGH16Ports for Option)

2 GUFQ board(4SFP Slot), 2 uplink modules on each;(HUTQ( 10G Uplink) GUSQ(2SFP Slot & 2RJ 45 GE Ports) Board for Optioin)

2 PRWG power boards;  (AC to DC Power Converter have to buy separate)

2 Power cables

1 RJ-45 first turn 9-pin RS-232 female network cable

1 RJ-45 Network cable

1 Earth Cable

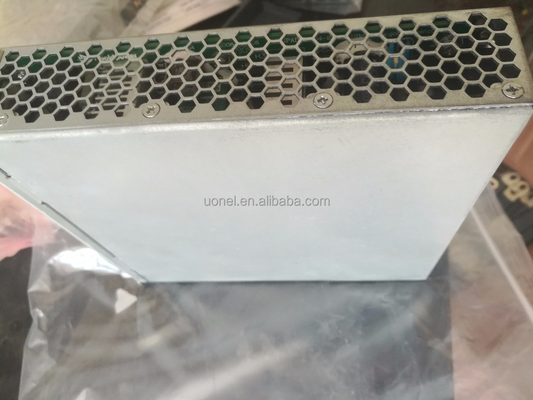

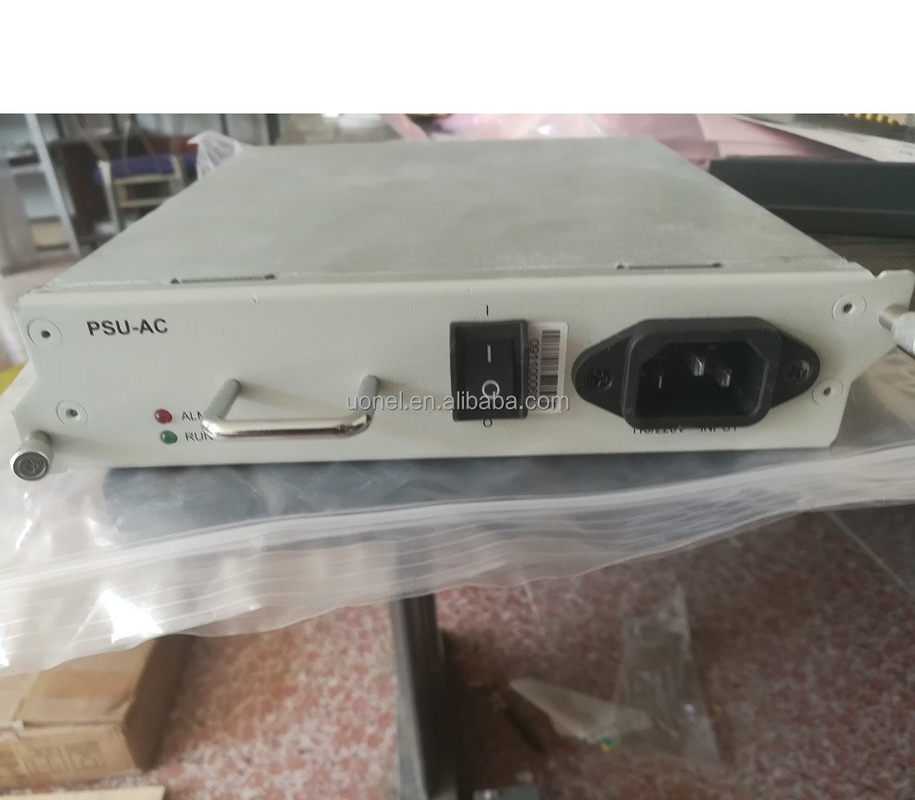

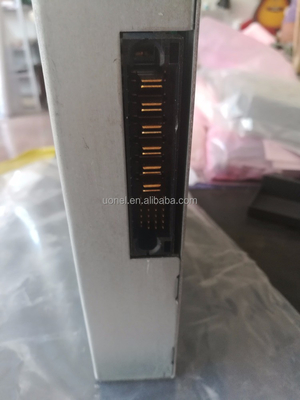

ZTE PSU-AC 30A AC to DC 220V to 48V Rectifier Converter supply in cabinet for Huawei ZTE Fiberhome OLT PTN ZTE EPS30-4815A

The EPS30-4815AF power system converts one AC input into two DC outputs to implement the DC power distribution. It can be connected to one set of batteries and use its monitoring module to manage the batteries.

 PON Features

• EPON compliant with IEEE 802.3ah
• GPON compliant with ITU G.984.x
• 10GEPON compliant with IEEE 802.3v
• Support up to 1:128 optical split ratio for GPON,1:64 optical split ratio for EPON and 1:256 optical split ratio for 10GEPON
• Support OLS (Optical Laser Supervising )
• Physical reach: 20~60km
• Highly-efficient DBA: NSR-DBA,SR-DBA
• 1PPS+TOD,IEEE 1588V2
• Transceiver power: Class B+ or class C+
• Type B and type C optical link protection
• FEC
• AES128
• SCB

Features

• 1:1/N:1 VLAN
• 802.1ad, SVLAN, Selective QinQ, VLAN stacking
• Line-speed forwarding
• STP/RSTP/MSTP compliant with IEEE 802.1d/802.1w/802.1s
• Link aggregation IEEE 802.3ad
• DHCP server, DHCP Relay (option 60/82), DHCP proxy
• L3 routing:
• RMON II
• Multicast – IPTV
• QoS
• Queue & scheduling mechanism: SP, DWRR, SP+DWRR
• IPv4 DSCP Diffserv
• Stream classification, rate limiting, shaping and priority setting

Dimensions

449.2mm (H) * 535mm (W) * 270mm (D) (21 inch shelf)

443.7mm (H) * 482.6mm (W) * 270mm (D) (19 inch shelf)

2200 mm (H) x 600 mm (W) x 300 mm ((D) (Rack)

Weight

60kg (Empty rack for 19inch and 21 inch)

175kg  (19 inch rack)

183kg (21 inch Rack)

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
