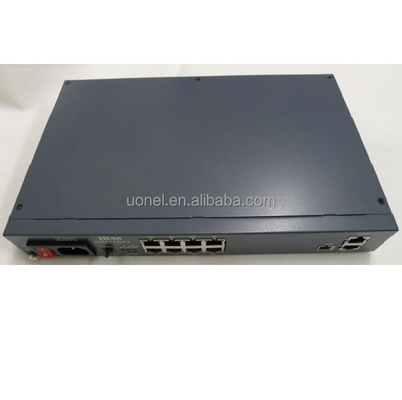

ZXA10 F804 is a GPON Multiple Dwelling Unit for FTTB / FTTO scenarious. F804 can provide HSI / Video / VoIP converged access by connecting IAD or RG. The special feature of F804 is reverse PoE for no power supply scenario.

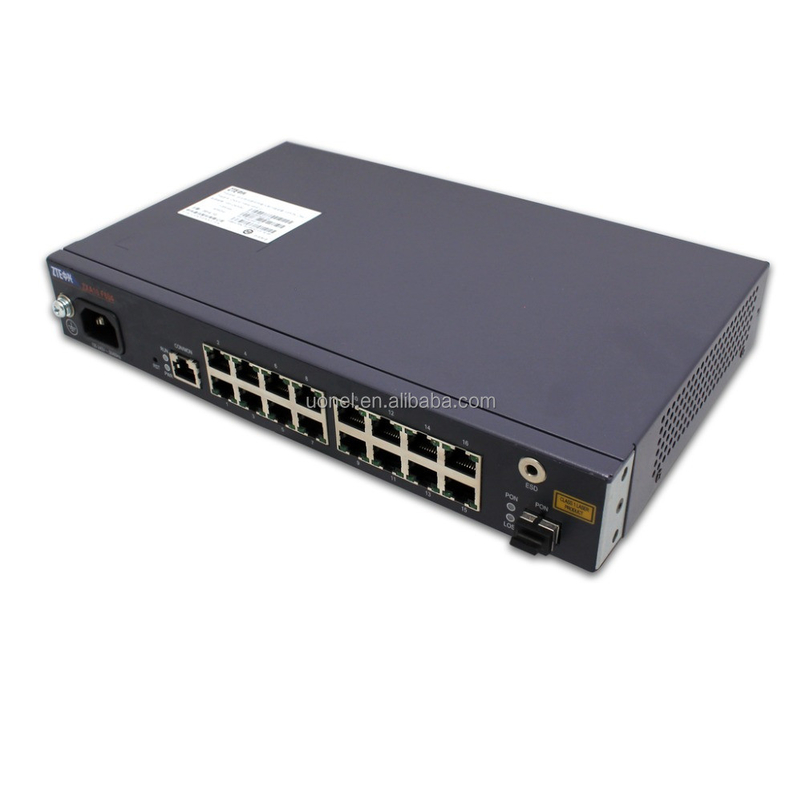

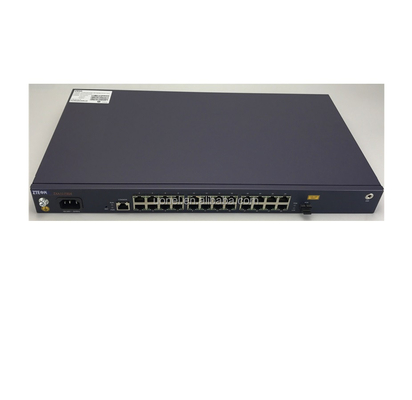

     ZXA10 F804/24FE-G ZTE 24 Fast Ethernet ports GPON ONU, FTTO or FTTB optical switch, can be mounted on 19" chassis

     The F804 an optical network terminal (ONT), is a high-end home Bridge in FTTH solution. By using the GPON technology, ultra-broadband access is provided for home and SOHO users.

     The F804: 24POTS

     The F804 features high-performance forwarding capabilities to ensure excellent experience with VoIP, Internet and HD video services. Therefore, the F804 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

     The F804 Provide English firmware and EU, US, UK, AU Power adapter for your choice.

 Product Features
• Supported Service: Internet, IPTV
• GPON: 32 T-CONTs, 256 GEM Ports
• Type B protection
• VLAN: 802.1Q, 802.1P, 802.1ad
• MAC address learning and aging
• MAC address table: 64k
• Multicast: IGMP v1/v2/v3 Snooping
• Multicast group: 1024
• QoS: Service flow classification based on physical port, MAC address, VLAN ID, VLAN priority level, IP address; SP/WRR/WP+WRR
• Management: SNMP, Telnet, Local serial port management, SSH, OMCI

GPON Interface
• Optical Port: 1 x GPON interface (SC/UPC)
• Transmission Distance: 0 - 20 km
• Transmit Rate: 2.488 Gbps downstream ; 1.244 Gbps upstream

User Network Interface
• 1 x 10/100Base-T in main control card (Half/full duplex; Auto MDI/MDIX; Auto negotiation)
• Optional UNIs:
      - 8 FE interfaces ; 16 FE interfaces
      - 24 FE interfaces ; 8 FE interfaces (Reverse PoE)

Optical Module
• Wavelength:
      - 1480 - 1500 nm
      - 1290 - 1330 nm
• Receiving: -28 dBm
• Transmitting Optical Power: 1 - 5 dBm

Physical Performance
• Power Consumption: 10.2W (8FE-G) ; 11.53W (16FE-G) ; 13.7W (24FE-G) ; 11.3W (8PoE-G)
• Dimensions (8FE/16FE/8PD): 170 x 280 x 43.6 (6.7 x 11.02 x 1.72 ")
• Dimensions (24FE): 160 x 313 x 43.6 (6.3 x 12.3 x 1.72 ")
• Working Temperature: -30 to 55°C
• Working Humidity: 5% - 95%
• Weight: 2.0 kg (8/16FE) ; 1.5 kg (8PD) ; 2.6 kg (24FE) / 4.4 lbs (8/16FE) ; 3.3 lbs (8PD) / 5.73 lbs (24FE)
• Power Supply: -48 VDC or 110 V / 220 VAC
• Mounting Mode: Rack / Cabinet / Desktop / Wall mounted

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

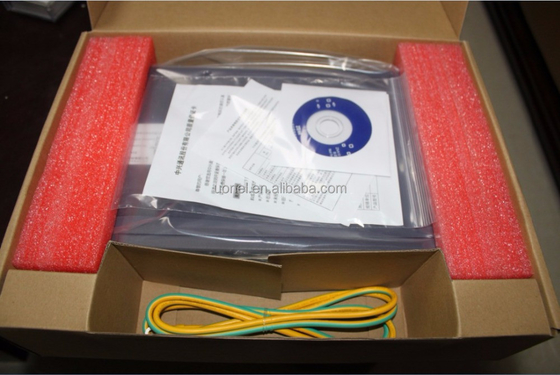

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
