Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE F822 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | ZTE F822 MDU Equipment | Application: | FTTH FTTB FTTX FTTC Network Access Equiment |
|---|---|---|---|
| Model Name: | ZTE F822-16 | Type: | ZTE MDU |
| Brand Name:: | ZTE | Port: | Shenzhen |
Zte Zxa10 F822 Gpon Epon Mdu Onu Zte F822-16 - Buy Gpon,Onu,Zte Product on Alibaba.com

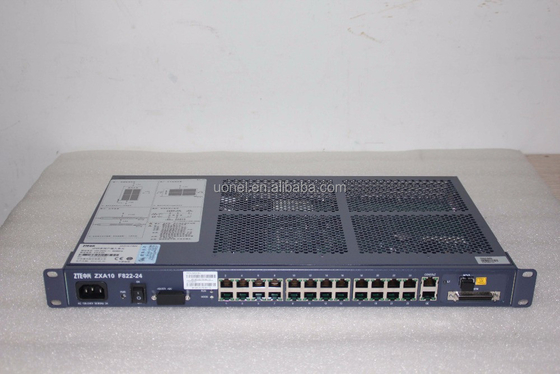

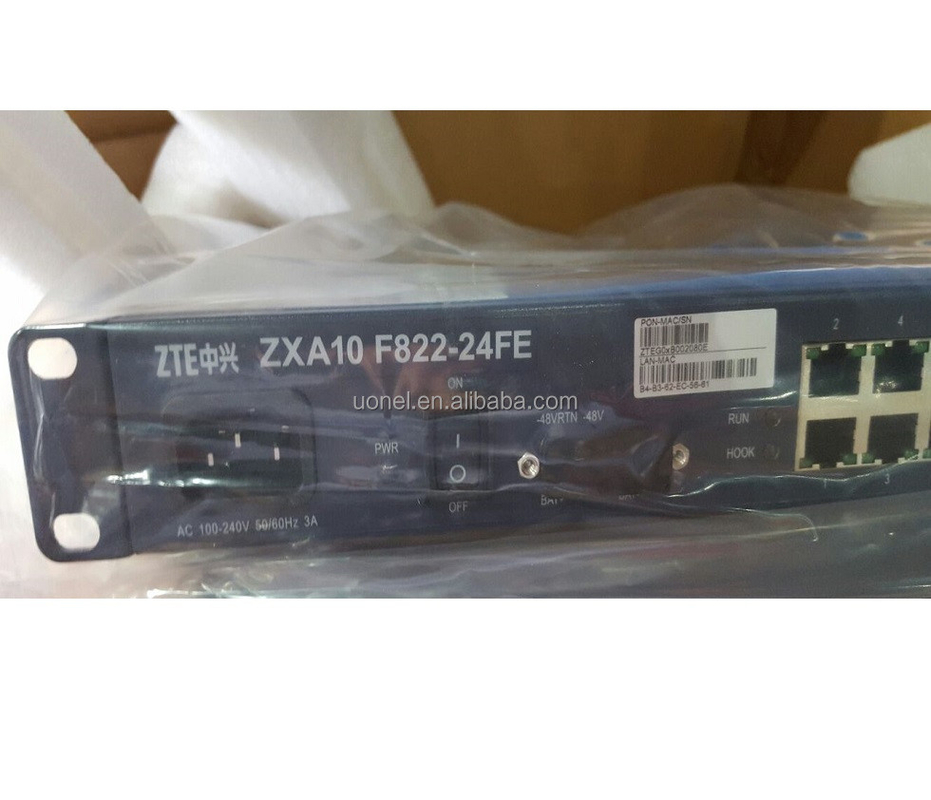

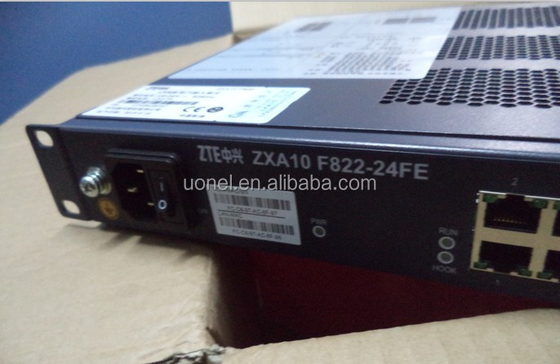

ZXA10 F822 is a GPON Optical Network Unit used in an FTTB/FTTO scenario. ZXA10 F822 supports VoIP, data and TDM services access. It builds a multi-tenant network center with computer technology and broadband optical network access technology, which connects various business appliances and equipments into the network to share Internet/voice connections so as to provide users with rich, diversified, personalized, convenient, comfortable, safe and effective services.
ZXA10 F822 provides 1/2 GPON interface to connect OLT with an ODN. It offers a new choice for operators to deliver FTTB/FTTO access.
Optical port (line terminal):

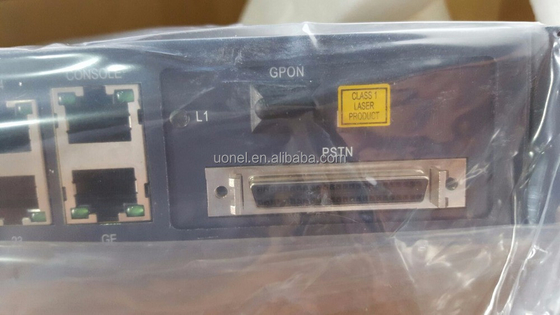

1/2 * GPON interface (SC/APC)
User network interface:
24/16/8 * 10/100Base_T interfaces
24/16/8 * VoIP interfaces
1* 10/100/1000Base_T interfaces
Transmission Rate
Line terminal: 2.488Gbps downstream and
1.244Gbps upstream
User side interface: 10/100Mbps autonegotiation
Transmission Distance
Link distance: 0 ~ 20km max
Transmission Wavelength
Receiving: 1,490 nm
Transmitting: 1,310 nm
Receiving Sensitivity
Better than -29dBm
Transmitting Optical Power
1~5dBm
Overload Optical Power
-5dBm
Physical Performance
Power consumption: 35.2W(24FE+24POTS)/
28.5W(16FE+16POTS) / 22W(8FE+8POTS)
Dimensions: 43.6 mm(H) * 482.6mm (W) *240 mm (D)
Working temperature: -30°C ~ 60°C
Working humidity: 5% ~ 95%
Weight: <4.5kg
Power supply: -48V DC or/and 110V/220 V AC
Mounting mode: Rack/Cabinet/Wall mounted
Service Function
Service: VoIP, Internet, IPTV
SIP/H.248/MGCP
G.711 , G.723.1, G.729a/b
Auto registration at power-on
802.1Q, 802.1P, 802.1ad and QoS policy
MAC addresses: 16K
STP, RSTP
IGMP snooping/proxy and controllable multicast
Support SP, WRR and SP+WRR
Loop back test for user ports
AES-128 Decryption
DBA and FEC
Priority queues and scheduling
4k VLAN, 4MVLAN
Up to 40T-CONTs and 256 GEM Ports
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
