Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE ZXA10 C300 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | ZXA10 C300 OLT Device | Application: | FTTH FTTB FTTX FTTC Network Access Equiment |
|---|---|---|---|
| Type: | OLT | Port: | Shenzhen |

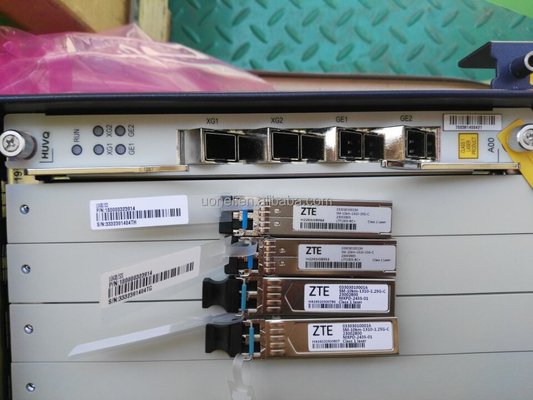

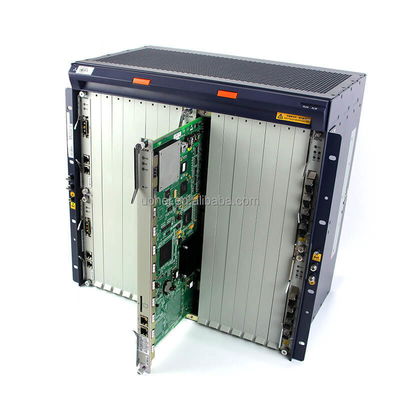

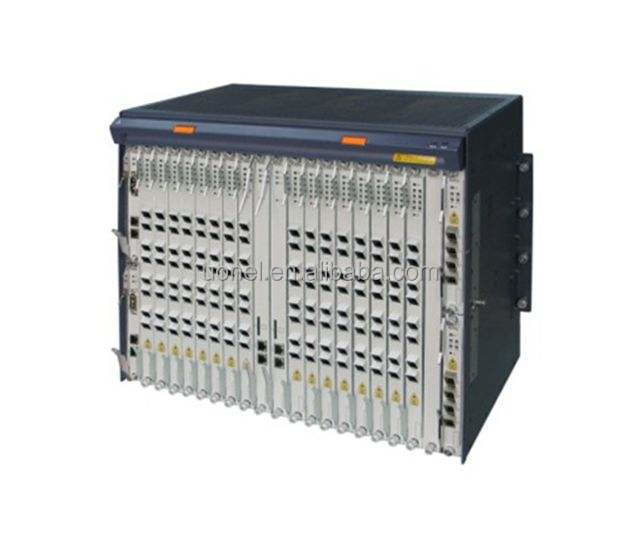

GEPON OLT Device ZXA10 C300
optical terminal with GE FE FXS VoIP DSLAM
The ZXA10 C300 allows operators to offer end users high bandwidth, multiple services, QoS and security efficiently and reduces the TCO. It provides stable technology and service platform for full-service access and management such as HSI, VoIP, TDM, IPTV, and mobile backhaul,etc.
Unified platform architecture
Delivers integrated access for GPON, EPON, P2P, 10G-EPON, XG-PON1 and TWDM-PON, achieves initial investment protection and smooth evolution.
Excellent capability
Fully meets the high-bandwidth network requirements with high system integration, large backplane bandwidth, high-density service cards, and non-blocking switching capability.
Higher reliability and protection
Provides boards redundancy and hot swappable, supports type B and type C protection for PON downlink and RSTP/UAPS/ERPS/LACP for uplink.
Perfect clock/time synchronization
Provides BITS, 1PPS+ToD, IEEE 1588V2 and synchronous Ethernet to deliver comprehensive time and clock synchronization.
Powerful QoS control and TDM capability
Supports three-level H-QoS based on service provider, user and service, provides TDM service bearing with STM-4, STM-1, E1 and T1.
Eco-friendly design
Supports multiple ways to lower the power consumption and complies with the Europe CoC, RoHS standards.
Uplink Interface
| GE | Single board: 4*GE(4 optical) |
| 4*GE(4 electric) | |
| 2*GE(optical)+2*10M/100M/1000M(electric) | |
| Chassis:8*GE, MAX 136*GE | |
| 10GE | Per board: 4*10GE(optical). Chassis:8*10GE |
User Interface
| P2P | Per board: 16*FE or GE. Chassis: 16 services slots, 256*FE/GE |
TDM Interface
| E1/T1 | Per card: 32*E1/T1. Chassis: 16 service slots, 512*E1/T1 |
| STM-1/STM-4 | Per board: 2*STM-1 / 1*STM-4. Chassis: 16 service slots, 32*STM-1 / 16*STM-4 |
BITS Interface
| BITS | 2*input/1output or 1*input/2*output |
Power
| working voltage: -48V(±20%), or -60V(±20%) |
Electrical Properties
| Dimension(mm) | 21': 449.2(H)*535(W)*270(D) / 19": 443.7(H)*482.6(W)*270(D) / Rack: 2200(H)*600(W)*300(D) |
| Environment | operating temperature: -25 ºC ~ +55 ºC. Operating humidity: 5% ~ 95%, non-condensing |
| Others | Weight: 36.6kg(full). Heat: Fan. Install: Rack |
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 c ustomers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
