Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE C300 OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | ZTE GPON OLT C300 C320 C220 | Application: | FTTH FTTB FTTX FTTC Network Access Equiment |
|---|---|---|---|
| Type: | OLT | Name: | ZTE GPON OLT |
| Port: | Shenzhen |

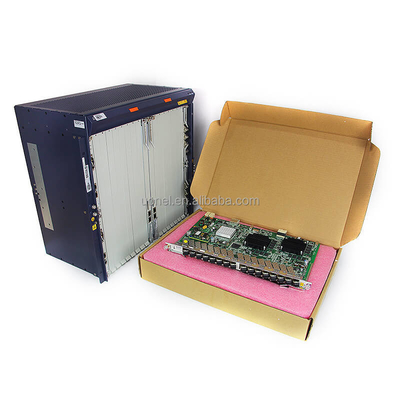

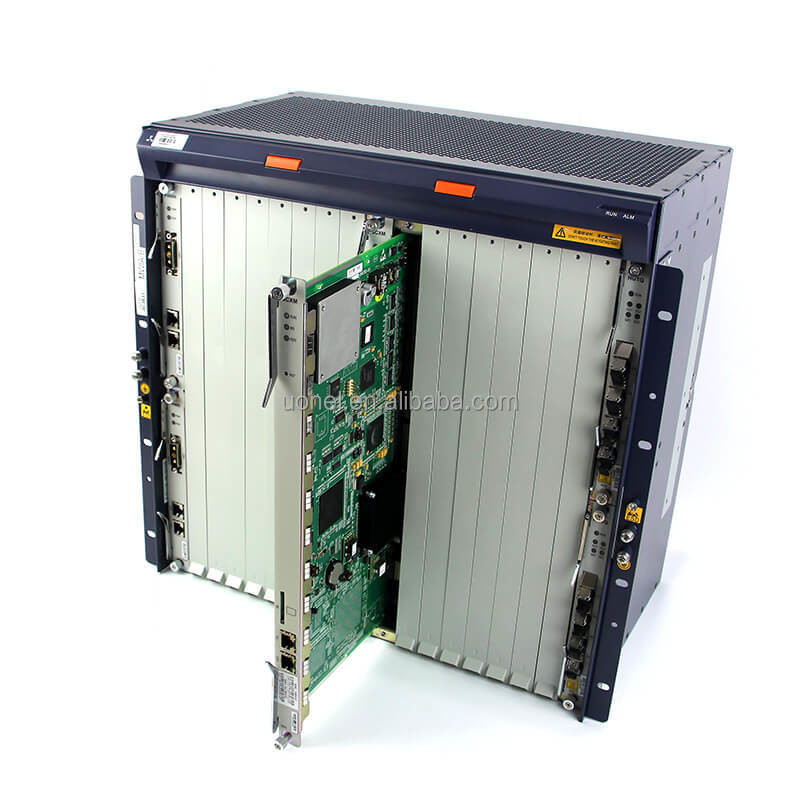

Original ZTE GPON OLT C300 C320 C220 optional Model
The ZXA10 C300 allows operators to offer end users high bandwidth, multiple services, QoS and security efficiently and reduces the TCO. It provides stable technology and service platform for full-service access and management such as HSI, VoIP, TDM, IPTV, and mobile backhaul,etc.
ZTE ZXA10 C300 configuration:

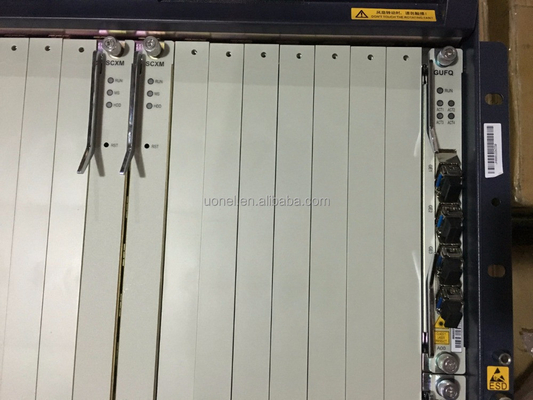

2 SCXM control board; (SCXL For Option)
1 GPON or EPON 8 ports board with 8 Modules; (GTGH ETGH16Ports for Option)

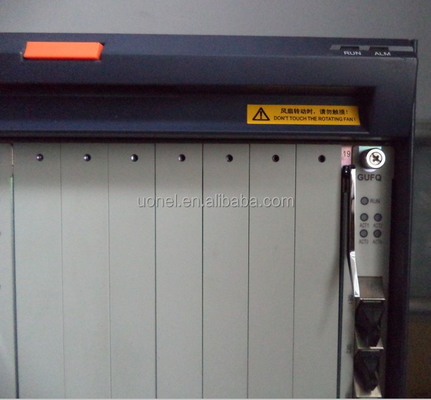

2 GUFQ board(4SFP Slot), 2 uplink modules on each;(HUTQ( 10G Uplink) GUSQ(2SFP Slot & 2RJ 45 GE Ports) Board for Optioin)
2 PRWG power boards; (AC to DC Power Converter have to buy separate)
2 Power cables
1 RJ-45 first turn 9-pin RS-232 female network cable
1 RJ-45 Network cable
1 Earth Cable
Unified platform architecture
Delivers integrated access for GPON, EPON, P2P, 10G-EPON, XG-PON1 and TWDM-PON, achieves initial investment protection and smooth evolution.
Excellent capability
Fully meets the high-bandwidth network requirements with high system integration, large backplane bandwidth, high-density service cards, and non-blocking switching capability.
Higher reliability and protection
Provides boards redundancy and hot swappable, supports type B and type C protection for PON downlink and RSTP/UAPS/ERPS/LACP for uplink.
Perfect clock/time synchronization
Provides BITS, 1PPS+ToD, IEEE 1588V2 and synchronous Ethernet to deliver comprehensive time and clock synchronization.
Powerful QoS control and TDM capability
Supports three-level H-QoS based on service provider, user and service, provides TDM service bearing with STM-4, STM-1, E1 and T1.
Eco-friendly design
Supports multiple ways to lower the power consumption and complies with the Europe CoC, RoHS standards.
Chassis Configuration (19”)
Total 21 slots
14 slots for universal line cards
2 slots for switch& control cards
2 slots for power cards
2 slots for uplink and cascading interfaces
1 slot for environment detecting card
Specification:
| Parameter | ZTE ZXA10 C300 | |
| Capacity and Performance | Backplane Capacity(bps) | 3.2T |
| Exchange Capacity(bps) | 800G | |
| MAC address capacity | MAX512K | |
| Main control exchange board | 2(main and spare) | |
| Service board | 14 | |
| EPON capacity | single board:8*PON;single chassis:112*PON | |
| typical configuration:224*PON/chassis | ||
| Uplink interface | GE | Single board: 4*GE(4 optical); |
| 4*GE(4 electric); | ||
| 2*GE(optical)+2*10M/100M/1000M(electric); | ||
| Chassis:8*GE,MAX 136*GE | ||
| 10GE | Per board:4*10GE(optical); | |
| Chassis:8*10GE | ||
| User interface | PTP | Per board:16*FE or GE |
| Chassis:16 services slots,256*FE or GE | ||
| TDM interface | E1/T1 | Per card:32*E1/T1; |
| Chassis:16 service slots,512*E1/T1 | ||
| STM-1/STM-4 | Per board:2*STM-1or 1*STM-4; | |
| Chassis:16 service slots,32*STM-1 or 16*STM-4 | ||
| BITS interface | BITS | 2input/1output or 1input/2output |
| Power | 2lineDC(-48V) | |
| DC:-38V~-57V | ||
| Electrical Properties | Dimension(mm) | 19inch chassis 482.6*443.7*270mm |
| 10U(9U insert box+1U fan) | ||
| Weight | 36.6kg(full) | |
| Heat | Fan | |
| Install | Rack | |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
