Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Type: | OLT, GPON ONT | Product Name: | H60Z5HABD |
|---|---|---|---|
| Application: | Network | Warranty: | 1 Year |
| SKYPE: | POPPYLEE7 | Port: | Shenzhen |
UA5000 Multi-Service Access Platform
Four-in-one access unit provides integrated broadband and narrowband access services for enterprise networks, industrial automation, and service providers.
Flexible multi-service platform supports smooth evolution from Public Switched Telephone Network (PSTN) service to Next-Generation Networking (NGN), then to IP Multimedia Subsystem (IMS) and upstream Passive Optical Network (PON) networking.
The UA5000 provides high-quality narrowband voice services, broadband access, and superb quality IP telephony.
Shelf Types and applications of the shelves supported by the UA5000:
| Shelf Model | Type | Number of Slots for Service Boards/Total Slots |
| HABA | Rear-access maintenance shelf | 30/36 |
| HABD | Front-access maintenance shelf | 12/18 |
| HABF | Front-access slave shelf | 18/18 |
| HABL | Front-access maintenance shelf | 6/12 |
| HABM | Front-access maintenance shelf | 6/9 |
| configuration | F01D200 | F01D500 | F01D1000 | F01E200 | F01E400 |
| W×D×H(mm) | 1250×550×1200 | 1550×550×1650 | 1900×550×1650 | 1000×550×1200 | 1000×550×1200 |
| Frame configuration | 1 HABD | 1 HABD+1 HABF | HABD+HABF+HABD | HABL+HABM | HABD |
| POTS | 768 | 1920 | 2688 | 384 | 768 |
| ADSL | 384 | 960 | 1344 | 192 | 384 |
| POTS+ADSL | 384 | 960 | 1344 |
| 02310QLC | Function module,ONUF01D500,H37M3HEU,Heat Exchanger,Temperature control unit,HX03-22SH | NEW Heat Exchanger | UA5000 / MA5600T |

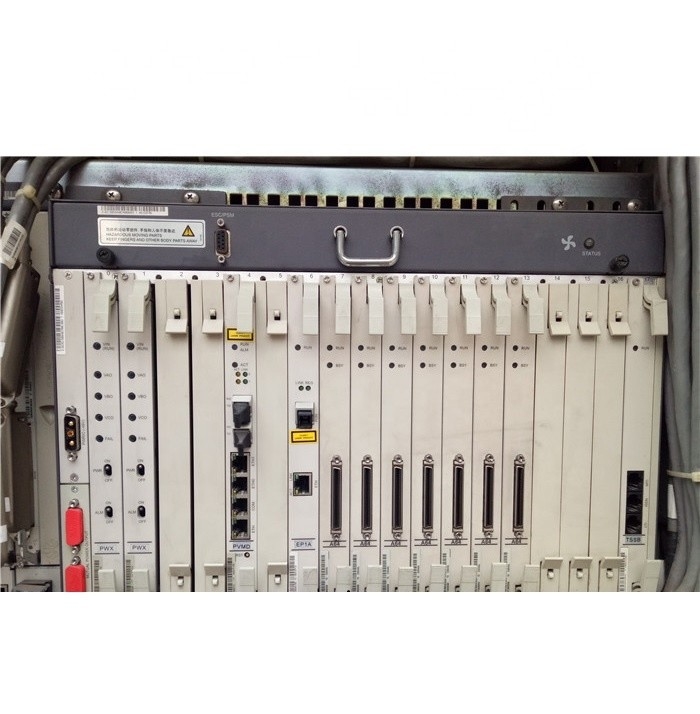

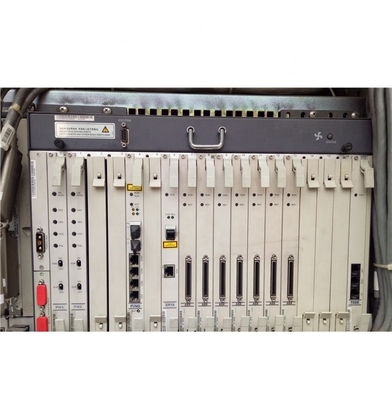

| 02351506 | Assembly Components for Front-access High-density Master Frame | H60Z5HABD | UA5000 |
| 02351508 | Assembly Components for Front-access High-density Extended Frame | H60Z5HABF | UA5000 |
| 02120534 | H61E5FAN,8-fan 1U Fan Box | FAN Tray | UA5000 |
| 03020NWE | Secondary Power Board | H605PWX6 | UA5000 |
| 03036767 | V5 Protocol Processing Unit | H601PVU80 | UA5000 |
| 03039850 | Remote Subscriber Processing Board(8E1) | H601RSU80 | UA5000 |
| 03028146 | HONET P3,H601APMB,ATM Service Process Board of Master Frame,1*1 Assembled Board | H601APMB | UA5000 |
| 03020EQJ | IP Service Process Board of Master Frame | H612IPMD6 | UA5000 |
| 03020FBJ | UA5000,H601PVMD,Packet Voice Module,1*1 | H601PVMD | UA5000 |
| 03028895 | Voice Processing Daughter Card(1*DSP) | H602ETCA | UA5000 |
| 34060473 | Optical transceiver,eSFP,1310nm,1.25Gb/s,-9~-3dBm,-20dBm,LC,Single Mode,10km | SFP(single) (uplink) | UA5000/MA5600T |
| 34060286 | Optical Transceiver,Enhanced SFP,850nm,2.125G Series ,-2.5~-9.5dBm,-17dBm,LC,0.5Km | eSFP (multi rate) | UA5000 (CX-IPMD) |
| 03028353 | Front-access Highway Convert Board for Master Frame | H601HWCF | UA5000 |
| 03030KSQ | Front-access Highway Transfer Board for Extended Frame | H601HWTF1 | UA5000 |
| 03028224 | HONET P3,H601HLAF, Front-access High-speed Link Transfer Board from Master Frame to Extended Frame,1*2 | H601HLAF | UA5000 |
| 03027066 | UA5000,H601HLEF,Front-access High-speed Link Transfer Board for Extended Frame,1*2 | H601HLEF | UA5000 |
| 03028226 | Front-access Subscriber Line Transfer Board | SLTF | UA5000 |
| 03020AQM | Front-access 32-Line Subscriber Protection Board | SAPF | UA5000 |
| 03020PGS | HONET,H603ADRB61,32-port ADSL2+ Subscriber Line Card,with 600 Impedance Splitter,without In and Out Testing Access Relay,Support Interface to Multifuntion Transfer Board,1*1 | H603ADRB61 | UA5000 |
| 03030DGQ | HONET P3,H603ADRB0,32-port ADSL2+ Board,with Splitter/No Test in and out Access Relay | H603ADRB0 | |
| 03020FSG | HONET,H605VDMB,16-port VDSL2 Subscriber Line Card with VDSL2+,with Splitter,with POTS Test Function,Support Interface Transfer Board,1*1 | H605VDMB | UA5000 |
| 03022PRY | MA5600T,H806VPGA,384 Channels(64*6) Vector Centralized Processing Board,1*1 | H806VPGA | |
| 03031337 | Direct Dial In Subscriber Interface Board | H301CDI0 | UA5000 |
| 03033734 | C&C08A,CC0HASL1,32-Port, 48V Analog Subscriber Board | A32 | UA5000 |
| 03020EFF | HONET,CC0SASL,32-channel Programmable,Reverse Polarity,16/12KC,Analog Subscriber Line Board(Shielded),1*1 | ASL | UA5000 |
| 03031712 | CB36ASL0,16-channel Programmable, Reverse Polarity,16/12KC,Analog Subscriber Line Board | CB36ASL0 (other name ASL ) | UA5000 |
| 03021FYH | HONET UA5000,H608ASRB,32-port POTS Subscriber Board | H608ASRB | UA5000 |
| 03021SHC | HONET UA5000,H608ASRB1,32-channel Reverse Polarity,16/12KC,Analog Subscriber Line Board(Shielded) | H608ASRB1 | |
| 03030300 | 8 Channel Remote Feed Digital Subscriber Board | CB03DSL0 | UA5000 |
| 03034817 | 4-port G.SHDSL Interface Board - TDM | H521SDL0 | UA5000 |
| 03021YDA | HONET P3,H611SDLE60,8-channel G.SHDSL Service Board,Shielded | H611SDLE60 | |
| 03038683 | SHDSL Board(16 PORTS) - ATM | H601SDLB0 | UA5000 |
| 03020GNV | UA5000,H603SHLB,16-PORT SHDSL.BIS BOARD | H603SHLB | UA5000 |
| 03030CEG | HONET P3 H601DSLD60,16-Port ISDN Digital Subscriber Card,Shielded | H601DSLD60 | UA5000 |
| 03031308 | Railway Audio Interface Board (1:2 Transformer) | CB02VFB0 | UA5000 |
| 02130617 | AC/DC,-33degC-65degC,-90V-290V,-53.5V/15A,Half load below 155V | Rect. Module | UA5000/MA5600T |
| 02315663 | Power System Monitor Module | EPMU02 | UA5000/MA5600T |
| 02400429 | Power Distribution Cabinet,220V,50/60HZ,22000mA,None,EPS75-4815AF | Power Frame | UA5000/MA5600T |
| 02310DTR | R4830G1,EN1MRC3G1A1,1600W 55degC/1340W 60degC High Efficiency Rectifier | New Rectifier Module | UA5000/MA5600T |
| 02310KFQ | SMU01B,EN1MMHSM01B,Site Monitor Unit,Without Network function | EN1MMHSM01B | UA5000/MA5600T |
| 2400693 | Electrical Appliance Cabinet,ETP4890-A2,220V,50/60HZ,39000mA,2U distribution shelf,110/220Vac single or three OT terminal input ,comprise distribution module Bottom of Form | ETP4890-A2 ( NEW PDU SET) | UA5000/MA5600T |
| 02120320 | MA5100,H51E2PDBC,Front-access-maintained Cabinet Power Distribution Box For DSLAM,C-type(DC-I) | DC Power | UA5000/MA5600T |
| 02100049 | H60E2EMB,Environment Monitoring Box | DC monitoring | UA5000/MA5600T |
| 19020062 | Power Lightning Arrester,20KA,1.8KV,220V,Terminal,Guideway Mounting | Outdoor Surge Protector Device | UA5000/MA5600T |
| 19020093 | Lightning Arrester,20kA/MAX40kA,1600V,154~286VAC,single phase three line in | Indoor lightning arrestor | UA5000/MA5600T |
| 02316001 | 4875 Power System Sensor Access Box | PMIB02 | UA5000/MA5600T |
| 03021PVH | H831CCUE - Centralized Control Unit Board | H831CCUE | |
| 03037314 | HONET,H304ESC0,Environment Monitoring Board | H304ESC0 | UA5000/MA5600T |
| 03030BYR | Environment Supervision Control Board | H801ESCA0 | UA5000/MA5600T |
| 4080098 | Monitor&Alarm Cable,Fan Monitor Cable,1.2m,MP8-VI,CC2P0.4B(S)- | ||
| 02310EDY | MUE02A Signal Transfer Module | ||
| 02310UDV | ETP4890-A2 Power System Sensor Access Box | ||
| 33010286 | Temperature and Humidity sensor, 15V 24VDC, -20~80deg C/0~100% RH | sensor |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
