Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Type: | OLT, MA5800 | Product Name: | MPSA-G |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Warranty: | 1 Year |
| Skype: | Poppylee7 | Port: | Shenzhen |

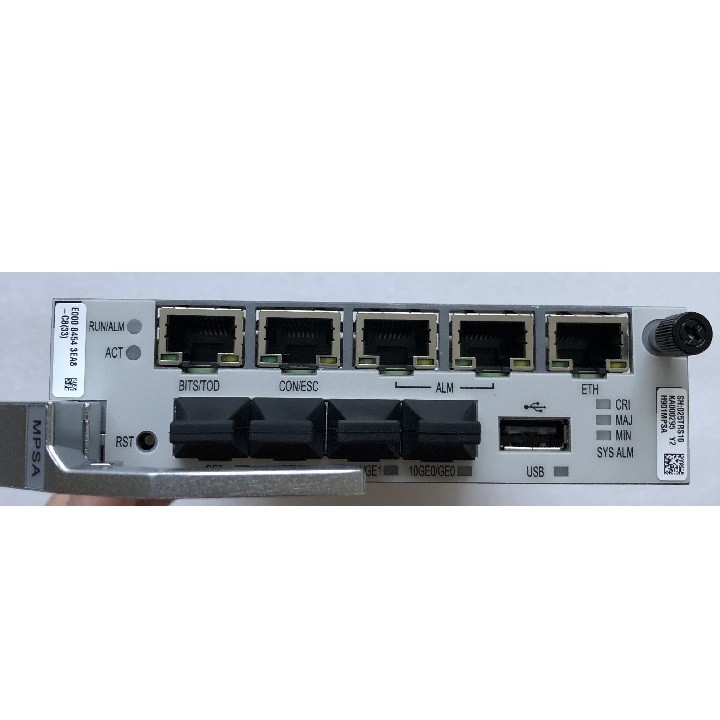

H901MPSC Board Description
The H901MPSC board is a control board. It is the core of the system control and service switching and aggregation. The H901MPSC board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband channel. In this manner, the H901MPSC board configures, manages, and controls the device, and also implements the simple route protocol functions.
Feature and Specifications
Comparison Between Boards of the Same Type
This topic describes differences on functions and specifications between boards of the same type.
Control Boards Comparison
All control boards support the functions as below:
Active/standby switchover at the control panel
Load sharing at the forwarding panel

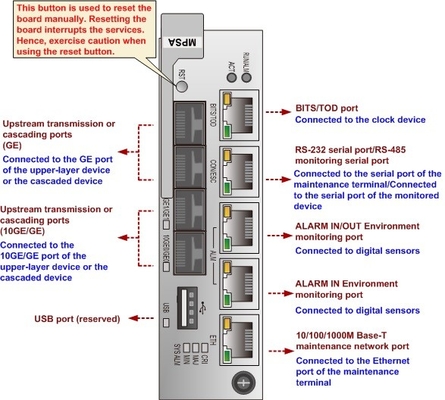

Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH
Environmental monitoring through environment monitoring serial port ESC
NOTE:
For H901MPSC board, the maintenance serial port (CON) and environment monitoring serial port (ESC) sharing the same port.
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 1 Differences between control boards
| Board | H901MPLB | H901MPSC |
| Maximum Bandwidth per Slot(load sharing mode) | 200 Gbit/s | 80 Gbit/s |
| Upstream transmission or cascading port | 4 x 10GE/GE ports | 4 x 10GE/GE ports |
| ALM port | No | Yes (7 Boolean value inputs and 1 Boolean value output) |
| BITS/TOD port | No | Yes (1 external clock/time input and output) |
| MAC address table | 262143 | 262143 |
| Access ONT | 17408 | 4096 |
| Multicast user | 17408 | 4000 |
| Number of static programs configurable | 4096 (Before the V100R017C00 version) | 8192 (V100R017C10 and later versions) |
| 8192 (V100R017C00 and later versions) | ||
| Maximum number of online programs supported | V100R016C00 version: 4000 | V100R017C10 and later versions: |
| V100R016C10 version: | IPv4: 8000 | |
| IPv4: 4000 | IPv6: 2000 | |
| IPv6: 2000 | ||
| V100R017C10 and later versions: | ||
| IPv4: 8000 | ||
| IPv6: 2000 | ||
| IPv4 routing table | 65536 | 65536 |
| IPv6 routing table | 16384 | 16384 |
| Service port | 139264 | 32768 |
| ARP table | 65536 | 65536 |
| Ethernet synchronization | Yes | Yes |
| 1588v2 | Yes | Yes |
| 1588ACR | Yes | No |
| VAN | Yes (requires license loaded by U2000) | No |
| D-CCAP | Yes | Yes |
| 03033EVH | 16-port GPON OLT Interface Board | H902GPSF | MA5800-X17/MA5800-X2 |
| 02355526 | Components of enhance heat consumption,Extra hot area | H80ZENHEAT01 Outdoor Cabinet | MA5800-X2 |
| 02355391 | Components for Socket,Multi Type | H83Z3SF01S50 Outdoor Cabinet | MA5800-X2 |
| 02230AVW | Engineering Required Delivery Accessory Per Assembly Cabinet | H83X0F01S001 Outdoor Cabinet | MA5800-X2 |
| 24022402 | Rechargeable Battery, VRLA Battery, 48V, 40Ah, 12V Monobloc, 197mm(W) * 166mm(D) * 170mm(H), 4 PCS, Narada 6-FM-40 | BND12V40AH01 Outdoor Cabinet | MA5800-X2 |
| 02310JUU | Rectifier Module, R4815, 1U, 1000W, Normal Efficiency | R4815N1 Outdoor Cabinet | MA5800-X2 |
| 02359868 | F01S200 Assembly Cabinet (Pure Optical Configuration, Max. 40AH Battery, Include 48-Cores ODF, Max. 96-Cores) | H80B3S200 Outdoor Cabinet | MA5800-X2 |
| 02350VXC | Mini OLT Service Shelf | H90Z1BPSB Outdoor Shelf | MA5800-X2 |
| 03023WDY | Main Processing Board | H901MPSC Board | MA5800-X2 |
| 03026JDT | Manufactured Board,MA5800,H901MPSA-G,Main Processing Board | H901MPSA-G Board | MA5800-X2 |
| 03023WED | Single DC power Board | H901PISA Board | MA5800-X2 |
| 02310KFQ | SMU01B Site Monitor Unit | EN1MMHSM01B1 Outdoor Cabinet | MA5800-X2 |
| 14130629 | Pigtail-SC/UPC-Single mode-G.657A2-2mm-3m-LSZH-Yellow | FSSN00301 Pigtail | MA5800-X2 |
| 14130520 | Pigtail-LC/UPC-Single mode-G.657A2-2mm-3m-LSZH-Yellow | FSLN00301 Pigtail | MA5800-X2 |
| 25030429 | Power Cable,450V/750V,60227 IEC 02(RV),16mm^2,Yellow/Green,85A,CCC,CE (Unit:meter) | C1016YG00 Power cable | MA5800-X2 |
| 34060495 | Optical transceiver,SFP+,1310nm,10Gb/s,-8.2~0.5dBm,-12.6dBm,LC,SM,10km | SFP | MA5800-X17/MA5800-X2 |
| 34060473 | Optical transceiver,eSFP,1310nm,1.25Gb/s,-9~-3dBm,-20dBm,LC,Single Mode,10km | SFP | MA5800-X17/MA5800-X2 |
| 34060518 | Optical transceiver,SFP+,1550nm,9.95~11.1Gb/s,-4.7~4dBm,-14.1dBm,LC,SM,40km | SFP | MA5800-X17/MA5800-X2 |
| 34060513 | Optical Transceiver,eSFP,1550nm,1.25Gb/s,-5dBm,0dBm,-22dBm,LC,SM,40km | SFP | MA5800-X17/MA5800-X2 |
| 34060360 | Optical Transceiver,eSFP,1550nm,1.25Gb/s,-2~5dBm,-23dBm,LC,SM,80km | SFP | MA5800-X17/MA5800-X2 |
| 34060672 | Optical Transceiver,SFP+,1550,9.953~10.3125Gb/s,0dBm,4dBm,-24dBm,LC,SMF,80km | SFP | MA5800-X17/MA5800-X2 |
| 34060673 | PON Transceiver,SFP,1490nm(Tx)/1310nm(Rx),2488M(Tx)/1244M(Rx),1.5dBm,5dBm,-28dBm,SC/UPC Compatible with SC/PC,SM | SFP | MA5800-X17/MA5800-X2 |
| 34060499 | PON Transceiver,SFP,1490nm(Tx)/1310nm(Rx),2.488Gb/s(Tx)/1.244Gb/s(Rx),3dBm,7dBm,-32dBm,SC/UPC Compatible with SC/PC,SM | SFP | MA5800-X17/MA5800-X2 |
| 34061246 | PON Transceiver,SFP,1490nm(Tx)/1310nm(Rx),2488M(Tx)/1244M(Rx),6dBm,10dBm,-35dBm,SC/UPC Compatible with SC/PC,60km | SFP | MA5800-X17/MA5800-X2 |
| 21139630 | Air Deflector Panel for Service Board Slot (Shielded) | H80XBP0YWB03 Shelf's Blank Panel | MA5800-X17/MA5800-X2 |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
