OSN1500 OSN3500 OSN6800 OSN8800 OSN7500

Name: OSN1500 OSN3500 OSN6800 OSN8800 OSN7500
Brand: Huawei
Availability: InStock
ISBN: 14073913

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Port:	Shenzhen

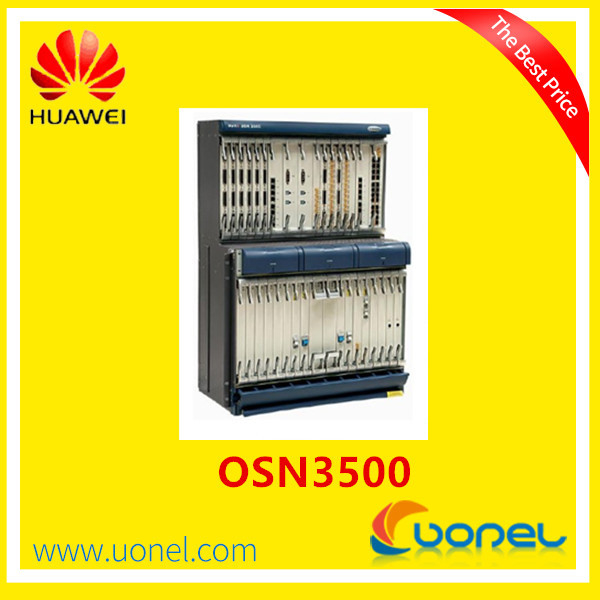

OSN3500

The Optix OSN 3500 is an intelligent optical switching system with universal switch architecture. That is, the Optix OSN 3500 can be used in packet mode (MPLS/MPLS-TP based) or in TDM mode. When used with the other equipment of the Optix OSN 3500 supports various networking applications, such as the pure packet mode application, hybrid networking application (overlay networking of the packet mode and TDM mode), and pure TDM mode application. By using a proper networking solution, the data service and conventional SDH service can be processed in the optimal manner. The Optix OSN 3500 transmits voice and data services on the same platform with high efficiency. It covers following features, Universal Switch Architecture, Multi-Service Transmission, Support 3G/LTE Mobile Backhaul, Improve Service Transmission, Built-In WDM, Flexible Networking, TP-Assist Helps Carefree Packet Network Maintenance.

Service Type	Description
SDH services	Standard SDH services: STM-1/STM-4/STM-16/STM-64 Standard SDH contiguous concatenation services: VC-4-4c/VC-4-8c/VC-4-16c/VC-4-64c/AU-3 Standard SDH virtual concatenation services: VC-4-Xv (X≤64), VC-3-Xv (X≤192), VC-12-Xv (X≤63) SDH services with FEC: 10.709 Gbit/s, 2.666 Gbit/s
PDH services	E1/T1 service E3/T3 service E4 service NOTE: With the E13/M13 function, the equipment can perform multiplexing and demultiplexing between E1/T1 signals and E3/T3 signals.
Ethernet services	Ethernet service transmission on the platforms of Ethernet over SDH (EoS) and Ethernet over PDH (EoP) Ethernet private line (EPL) service Ethernet virtual private line (EVPL) service Ethernet private LAN (EPLAN) service Ethernet virtual private LAN (EVPLAN) service
RPR services	EVPL service EVPLAN service
ATM services	Constant bit rate (CBR) service Real-time variable bit rate (rt-VBR) service Non real-time variable bit rate (nrt-VBR) service Unspecified bit rate (UBR) service Unspecified bit rate plus (UBR+) service
DDN services	N x 64 kbit/s (N=1-31) service Framed E1 service
SAN/Video services	Fiber channel (FC) service Fiber connection (FICON) service Enterprise systems connection (ESCON) service Digital video broadcast - asynchronous serial interface (DVB-ASI) service
