Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|

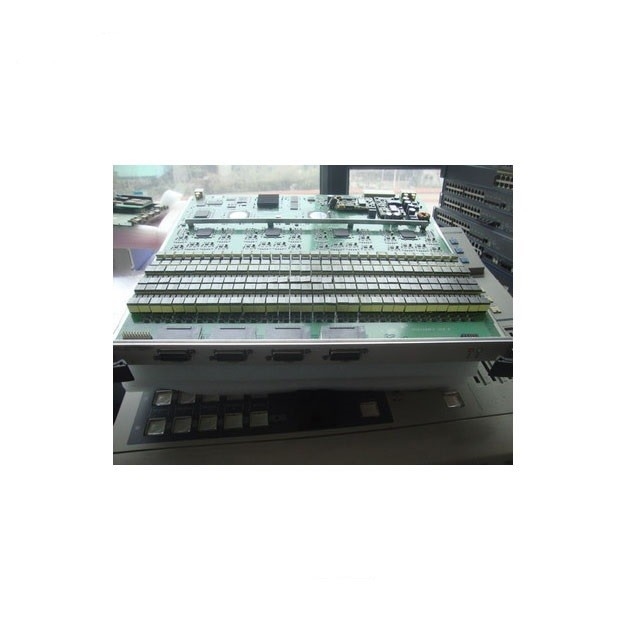

H802ADKM Board Description
The H802ADKM board is a 64-port ADSL2+ service board. It works with the ADSL terminal unit-remote end (ATU-R) through the ADSL2+ port to access 64 channels of ADSL2+ service.
Feature and Specifications
Please refer to "64-Channel ADSL2+ Service Board Comparison".
Parameters
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle
Figure 1 Working principle of the H802ADKM board
|
| Indicates the channel of control signal. |
| Indicates the channel of service signal. |
|
| Control module: loads the board software, controls the running of the board, and manages the board. MELT module: provides the MELT test function. |
| Indicates the service modules and boards which the service signals pass through. |
|
| Indicates the channel of power or clock signal. |
| The power module supplies power to each functional module of the board. The clock module provides clock signals for each functional module of the board. |
Front Panel Port
NOTICE:
When cables from the xDSL ports are routed to an outdoor environment or the user side, the MDF must be installed with a protective unit.
Indicator
| Indicator | Name | Status | Meaning |
| RUN ALM | Running status indicator | Green: blinks every 1s | The board works in the normal state |
| Green: blinks every 0.25s | The board is starting up | ||
| Orange: blinks | A high-temperature alarm is generated | ||
| Red: on | The board is faulty | ||
| BSY | Port status indicator | Green: on | At least one service port is activated |
| Green: off | No service port is activated |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
