Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OLT
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Product Name: F01T500 Application: FTTH FTTB FTTX Network
Type: MA5800 Warranty: 1 Year
Port: Shenzhen

Huawei F01T500 1000-line large-capacity flexible outdoor cabinet F01C100B F01S50 F01S100 F01S200 F01S300 F01T300

Contact Us

Huawei  F01T500 1000-line large-capacity flexible outdoor cabinet F01C100B F01S50 F01S100 F01S200 F01S300	F01T300 0

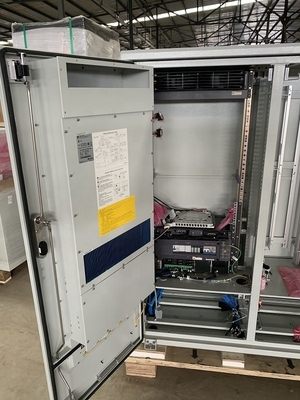

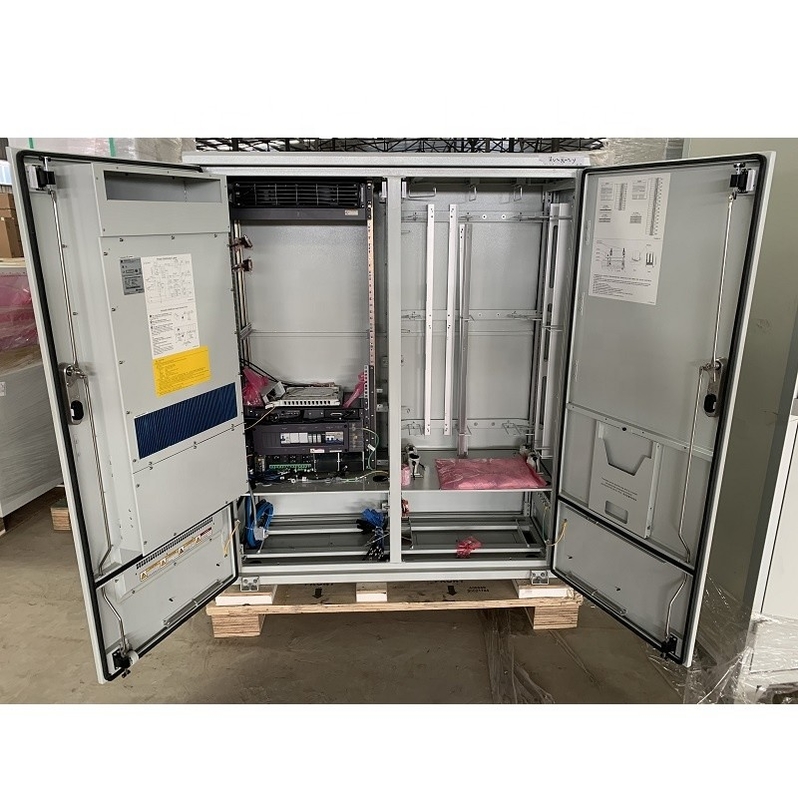

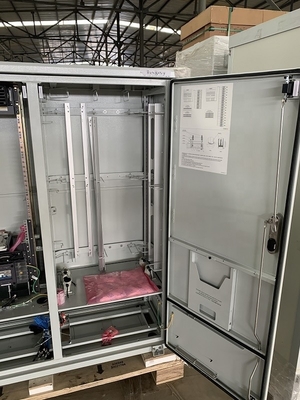

Huawei SmartAX F01T500 is a 1000-line large-capacity flexible outdoor cabinet.

This page provides the huawei SmartAX F01T500 user manual and user guide, including the datasheet, product description, and quick installation guide.

As the first aggregation OLT in the industry, the SmartAX MA5600T series products integrate the aggregation and switching functions, provide the high-density GPON and Ethernet P2P access, abundant GE/10GE ports, high precision clock and strong platform capacity, provide the basic voice, high-speed internet, fluent video, steady TDM and the Ethernet private line services; MA5600T is a large-capacity multi-service access product, 10U-High and 21Inch-Width, provides two slots of control board , two slots of power board, two slots of uplink board and sixteen slots of services board.

Specifications F01C100B F01S50 F01S100 F01S200 F01S300 F01T500
Dimensions (H x W x D) 630 mm x 235 mm x 925 mm 560 mm x 200 mm x 850 mm 670 mm x 250 mm x 830 mm 750 mm x 350 mm x 850 mm 850 mm x 450 mm x 1,350 mm 1,350 mm x 480 mm x 1,600 mm
Devices 1 x MA5616
2 x MA5620
2 x MA5626
2 x MA5623A
2 x MA5821
1 x MA5616
1 x MA5612
1 x MA5620
1 x MA5622A
1 x MA5623A
1 x MA5616 1 x MA5616
1 x MA5608T
1 x MA5683T
3 x MA5616
1 x MA5600T
1 x MA5603T
Service Capacity < 128 lines < 48 lines < 128 lines < 192 lines < 384 lines < 1,024 lines
Installation Scenarios Corridor,
basement,
and indoor
Outdoor Outdoor Outdoor Outdoor Outdoor
Installation Modes Pole-mounted,
wall-mounted,
and base-installed
Pole-mounted,
wall-mounted,
and base-installed
Pole-mounted,
wall-mounted,
and base-installed
Pole-mounted,
wall-mounted,
and base-installed
Base-installed Base-installed
Operating Environment -25°C to 45°C –33°C to 45°C –33°C to 45°C –33°C to 45°C –33°C to 45°C –45°C to 45°C
(1,120W/m² solar radiation) (1,120W/m² solar radiation) (1,120W/m² solar radiation) (1,120W/m² solar radiation) (1,120W/m² solar radiation)
Water-proof and Dust-proof Rating IP31 IP55 IP55 IP55 IP55 IP55
Noise Rating Class4.1 protected-area level Class4.1 protected-area level Class4.1 protected-area level Class4.1 protected-area level Class4.1 protected-area level Class4.1E city-level
Weight 32 kg 38 kg 50 kg 85 kg 140 kg 250 kg

Product Feature



MDUs are deployed in corridors and connect Cat 5 lines to user homes.
  • For the Internet access service, users connect to an MDU using Cat 5 lines and are authenticated by dialing a number through PCs. Each user has a separate account. All user accounts are centrally authenticated and managed on the broadband remote access server (BRAS).
  • For the voice service, the MDUs embedded with a voice module provide the VoIP service for users.
MDUs are deployed in corridors or FDTs along the curb, and connect twisted pairs to user homes.
  • For the Internet access service, users access the Internet at a high speed using the modems deployed at their homes. Modems are Layer 2 devices and therefore require authentication by dialing a number through PCs. Each user has a separate account. All user accounts are centrally authenticated and managed on the BRAS.
  • For the voice service, the MDUs embedded with a voice module provide the VoIP service for users.
Usage Scenario Recommended Solution General Specifications
FTTB (LAN+POTS) F01S50/F01C50+MA5620/MA 5626 LAN and POTS
F01S100+MA5620/MA5626 LAN and POTS
F01C100B+MA5620/MA5626 LAN and POTS
FTTB/FTTC (xDSL+POTS) F01C100B+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01S100+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01S200+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01T300/F01S300+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01S50/F01C50/F01C100B+ MA5622A/MA5623A VDSL2, VDSL2 combo and vectoring
MA5611S series (outdoor devices, which do not require a separate cabinet) VDSL2 and vectoring
Huawei  F01T500 1000-line large-capacity flexible outdoor cabinet F01C100B F01S50 F01S100 F01S200 F01S300	F01T300 2

MDUs are deployed in corridors or FDTs along the curb. The MDUs provide services for users through home gateways (HGWs) that are deployed at user homes and that use LAN or xDSL upstream transmission.
  • The HGWs transmit services upstream to the MDUs using LAN or xDSL ports. In the downstream direction, the MDUs provide the Internet access service for users using FE or Wi-Fi ports and the IPTV service using FE ports.
  • The HGWs support Layer 3 functions, such as PPPoE dialup and network address translation (NAT), providing the shared Internet access service for residential users through multiple PCs.
  • An HGW connects to a set top box (STB) in the downstream direction, allowing users to preview and order IPTV videos.
  • The integrated access device (IAD) built in an MDU provides one or multiple POTS ports for users, meeting the voice service requirements of residential users using one or multiple phone sets.
Usage Scenario Recommended Solution General Specifications
HGW using LAN upstream transmission F01S50/F01C50+MA5620 LAN and POTS
F01S100+MA5620 LAN and POTS
HGW using xDSL upstream transmission F01C100B+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01S100+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01S200+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01T300/F01S300+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01S50/F01C50/F01C100B+MA5622A VDSL2, vectoring and POTS
Huawei  F01T500 1000-line large-capacity flexible outdoor cabinet F01C100B F01S50 F01S100 F01S200 F01S300	F01T300 4

Indoor MDUs can be deployed in corridors or FDTs along the curb. Outdoor MDUs can be deployed in manholes or mounted to poles or exterior walls. Both indoor and outdoor MDUs provide services for users through the HGWs that are deployed at user homes and that use LAN or xDSL upstream transmission.
  • The HGWs transmit services upstream to the MDUs using LAN or xDSL ports. In the downstream direction, the MDUs provide the Internet access service for users using FE or Wi-Fi ports and the IPTV service using FE ports.
  • The HGWs support Layer 3 functions, such as PPPoE dialup and NAT, providing the shared Internet access service for residential users through multiple PCs.
  • An HGW connects to an STB in the downstream direction, allowing users to preview and order IPTV videos.
  • The IAD built in an MDU provides one or multiple POTS ports for users, meeting the voice service requirements of residential users using one or multiple phone sets.
Usage Scenario Recommended Solution General Specifications
HGW using LAN upstream transmission F01S50/F01C50+MA5620/MA5626 LAN
F01S100+MA5620/MA5626 LAN
HGW using xDSL upstream transmission F01C100B+MA5616 VDSL2/ADSL2+, vectoring and SuperVector
F01S100+MA5616 VDSL2/ADSL2+, vectoring and SuperVector
F01S200+MA5616 VDSL2/ADSL2+, vectoring and SuperVector
F01T300/F01S300+MA5616 VDSL2/ADSL2+, vectoring and SuperVector
F01S50/F01C50/F01C100B+MA5622A /MA5623A VDSL2 and vectoring
MA5611S series (outdoor devices, which do not require a separate cabinet) VDSL2 and vectoring
Huawei  F01T500 1000-line large-capacity flexible outdoor cabinet F01C100B F01S50 F01S100 F01S200 F01S300	F01T300 6



In Ethernet cascading scenarios where MDUs are standalone NEs, the MDUs transmit data upstream to a MAN switch or edge router through GE ports. Alternatively, the MDUs transmit data upstream to the OLT through GE ports and then to a MAN switch or edge router. xDSL access mainly applies on the user side.
The MDU+OLT networking shown in the figure is recommended. In this networking, remote MDU software commissioning is supported.
Usage Scenario Recommended Solution General Specifications
Ethernet cascading in FTTB/FTTC (standalone NE networking) F01S100+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01S200+MA5616 VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01S50/F01C50+MA5622A/MA 5623A VDSL2, VDSL2 combo and vectoring
MA5611S series (outdoor devices, which do not require a separate cabinet) VDSL2 and vectoring
F01T300/F01S300+MA5603T VDSL2/ADSL2+, vectoring, SuperVector and POTS
F01T500+MA5600T/MA5603T VDSL2/ADSL2+/POTS and ADSL2+/VDSL2 combo, vectoring
F01D2000+MA5600T VDSL2/ADSL2+, POTS and ADSL2+/VDSL2 combo
Huawei  F01T500 1000-line large-capacity flexible outdoor cabinet F01C100B F01S50 F01S100 F01S200 F01S300	F01T300 8
Warranty

Huawei  F01T500 1000-line large-capacity flexible outdoor cabinet F01C100B F01S50 F01S100 F01S200 F01S300	F01T300 10

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
