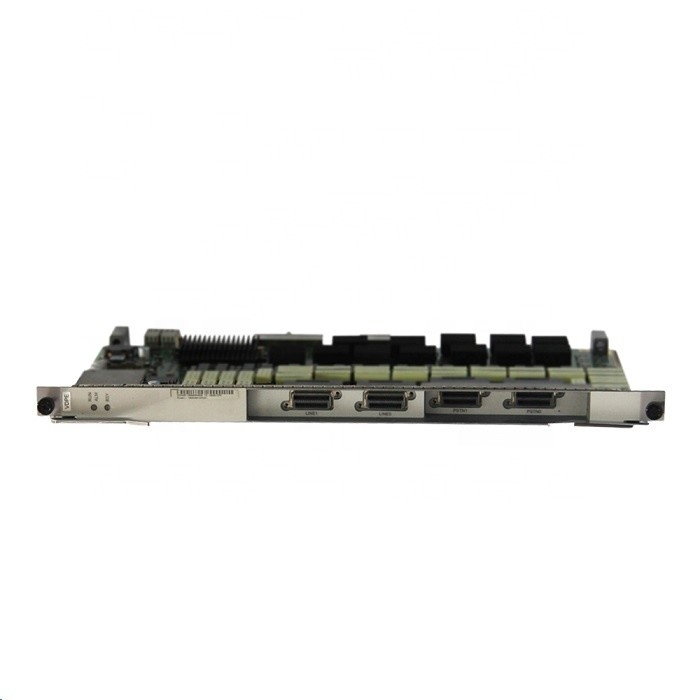

Huawei H80BVDPE 64-port VDSL2 over POTS service board

H80BVDPE Board Description
H80BVDPE is a 64-port VDSL2 over POTS service board with built-in splitter. Using its VDSL2 port, the H80BVDPE board works with the VDSL transceiver unit, remote terminal end (VTU-R) to provide 64 channels of VDSL2 access services.

Feature and Specifications
Please refer to "64-Channel VDSL2 Service Board Comparison".
Parameters
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle

Indicates the channel of control signal.
Indicates the channel of service signal.

Indicates the control module which loads the board software, controls the running of the board, and manages the board.
Indicates the service modules and boards which the service signals pass through.

Indicates the channel of power or clock signal.
The power module supplies power to each functional module of the board.
The clock module provides clock signals for each functional module of the board.
Figure 1 Working principle of the H80BVDPE board
Front Panel Port
NOTICE:
When cables from the PSTN and LINE ports are routed to an outdoor environment, the MDF must be installed with a protective unit.
When cables from the LINE port are routed to the user side, the MDF must be installed with a protective unit.
The PSTN port must be connected to an MDF with a protective unit or a POTS device. Otherwise, when the LINE port is struck by lightning, energy inside the SPL board or unit fluctuates and overlaps, which may damage the LINE port.
Indicator
Indicator Name Status Meaning
RUN ALM Running status indicator Green: blinks every 1s The board works in the normal state
Green: blinks every 0.25s The board is starting up
Orange: blinks A high-temperature alarm is generated
Red: on The board is faulty
BSY Port status indicator Green: on At least one service port is activated
Green: off No service port is activated
Pin Assignments
The pin assignments of LINE ports are the same as those of the PSTN ports. Table 1 describes the pin assignments of the PSTN0 port, and Table 2 describes the pin assignments of the PSTN1 port.
