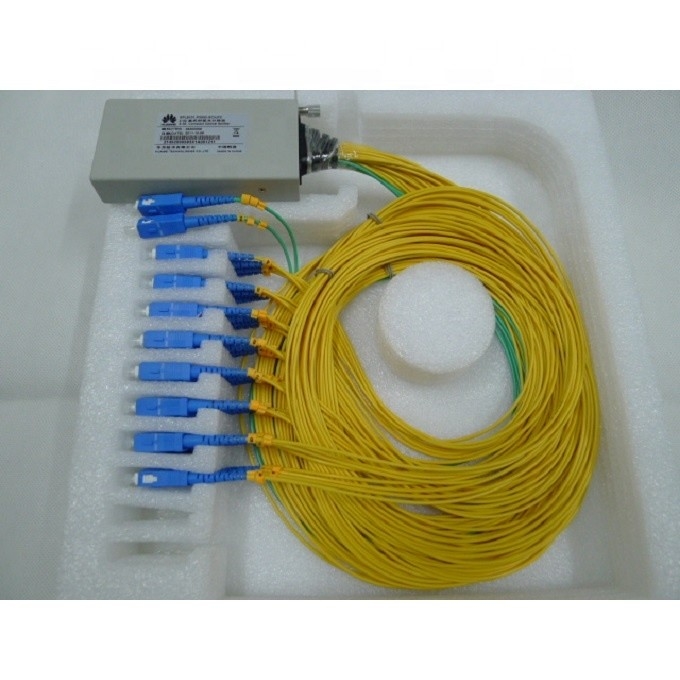

Huawei SPL9101-P2032- SC/UCP 2/32 Compact Optical Splitter 45200059 SPL1202 SPL2601 SPL1101 SPL2605 SPL9101 SPL9102

Name: Huawei SPL9101-P2032- SC/UCP 2/32 Compact Optical Splitter 45200059 SPL1202 SPL2601 SPL1101 SPL2605 SPL9101 SPL9102
Brand: Huawei
SKU: Splitter
Availability: InStock
ISBN: 14073896

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	Splitter

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Product Name:	SPL9101	Type:	Splitter
SKYPE:	Poppylee7	Warranty:	1 Year
Port:	Shenzhen

Huawei SPL9101-P2032-SC UPC 45200059 Optical Splitter SPL9101-PLC

ODN node products are used to connect and protect optical cables. An optical splitter is a passive functional component that split an input optical channel into multiple output channels at an optical splitting point.

The biggest difference between a PON network and a traditional optical network lies in the optical splitter which splits one channel of input optical signals into multiple channels of output optical signals and converts a traditional P2P optical transmission network into a P2MP PON tree.

An optical splitter is also called splitter or SPL.

Optical splitters are classified into fused biconical taper (FBT) and planar lightwave circuit (PLC) types based on the production processes.

A simple understanding of the FBT is that 2 optical fibers are fused at a high temperature to monitor the output of the split ratio in real time. After the split ratio reaches the requirement, the melt stretching ends. FBT splitters support optical signal splitting with equal or unequal ratios.

A PLC splitter is made by etching optical paths on a chip. It splits optical signals by means of physical optical path coupling. All PLC splitters provide equal-ratio splitting, which means that signals from 1 or 2 input channels are split and evenly distributed among multiple output channels.

FBT splitters with a high split ratio can work only within the frequency bands of 1310±40 nm, 1490±10 nm, and 1550±40 nm. The insertion loss of other frequency bands is too high.

FBT splitters are easy to produce and therefore cheaper compared with PLC splitters. You can select FBT or PLC splitters by balancing the cost and performance.

Among Huawei splitters, only those with a split ratio of 1:2 and 2:2 are FBT splitters. Splitters with other split ratios are all PLC splitters.

Optical splitters are classified into the types shown in the following figure based on encapsulation modes:

Which encapsulation mode is applicable depends on where optical splitters are deployed.

Micro optical splitter without connector (SPL9102): Splitters of this type are generally installed in splicing trays. Both the input and output ends are spliced to transmit optical signals.

Micro optical splitter with connector (SPL9105): Splitters of this type are generally installed in splicing trays or open splicing areas. The output end uses cable distribution to transmit optical signals. The input end uses splicing (the connector needs to be cut off) or cable distribution to transmit optical signals.

Modular optical splitter (SPL2803): Splitters are encapsulated into a module. You only need to connect the pigtails to an SPL2803 adapter as required. Modular optical splitters are mostly installed in SSCs and FATs.

Small case-shaped optical splitter with pigtail (SPL2605): Similar to modular optical splitters, splitters of this type also encapsulate multiple optical splitters. You only need to connect the pigtails to optical fibers in cable distribution mode. Splitters of this type are generally installed in FATs.

19-inch rack-mounted optical splitter: Optical splitters are encapsulated into a larger 19-inch standard module for easy installation in ODFs and FDTs.

The positions of optical splitting points directly affect the equipment cost and O&M cost of an entire ODN network.

Positions of Optical Splitters

Generally, optical splitters can be deployed in the positions listed in the following table. Note that the table lists possible positions for optical splitters, which does not mean that optical splitters can be deployed in these positions for one link at the same time.

At present, only 1-level (1 optical splitter per link) or 2-level (2 optical splitters per link) optical splitting are used. 3-level or further optical splitting is not used.

Differences Between 1-level and 2-level Optical Splitting

In 1-level optical splitting mode, the PON port usage is high, test and maintenance are simple, and optical power attenuation is low.

In 2-level optical splitting mode, less optical cables are needed in the distribution section, and the network is more flexible compared with 1-level optical splitting. However, user management and line fault locating can be difficult, resulting in high maintenance costs in the future.

Application Scenario of 2-Level Optical Splitting

OSPL3A200 Miniature Package Bare Optical Splitter-2:32-SC/APC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
O0SPL2100 Miniature Package Bare Optical Splitter-1:2-without connector-D3*55mm-SPL9102-FBT-even-G.657A-0.25mm-1.5m
O0SPL2300 Miniature Package Bare Optical Splitter-1:4-without connector-40*4*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
O0SPL2500 Miniature Package Bare Optical Splitter-1:8-without connector-40*4*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
O0SPL2700 Miniature Package Bare Optical Splitter-1:16-without connector-40*4*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
O0SPL2900 Miniature Package Bare Optical Splitter-1:32-without connector-50*7*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
O0SPL2B00 Miniature Package Bare Optical Splitter-1:64-without connector-60*12*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
O0SPL2200 Miniature Package Bare Optical Splitter-2:2-without connector-D3*55mm-SPL9102-FBT-even-G.657A-0.25mm-1.5m
O0SPL2400 Miniature Package Bare Optical Splitter-2:4-without connector-50*4*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
O0SPL2600 Miniature Package Bare Optical Splitter-2:8-without connector-50*4*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
O0SPL2800 Miniature Package Bare Optical Splitter-2:16-without connector-60*7*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
O0SPL2A00 Miniature Package Bare Optical Splitter-2:32-without connector-60*7*4mm-SPL9102-PLC-even-G.657A-0.25mm-1.5m
OSPL31200 Miniature Package Bare Optical Splitter-1:2-SC/APC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL33200 Miniature Package Bare Optical Splitter-1:4-SC/APC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL35200 Miniature Package Bare Optical Splitter-1:8-SC/APC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL37200 Miniature Package Bare Optical Splitter-1:16-SC/APC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL39200 Miniature Package Bare Optical Splitter-1:32-SC/APC-50*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3B200 Miniature Package Bare Optical Splitter-1:64-SC/APC-60*12*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL32200 Miniature Package Bare Optical Splitter-2:2-SC/APC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL34200 Miniature Package Bare Optical Splitter-2:4-SC/APC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL36200 Miniature Package Bare Optical Splitter-2:8-SC/APC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL38200 Miniature Package Bare Optical Splitter-2:16-SC/APC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OOC020001 Miniature Package Bare Optical Splitter-1:2-SC/UPC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL33100 Miniature Package Bare Optical Splitter-1:4-SC/UPC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL35100 Miniature Package Bare Optical Splitter-1:8-SC/UPC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL37100 Miniature Package Bare Optical Splitter-1:16-SC/UPC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL39100 Miniature Package Bare Optical Splitter-1:32-SC/UPC-50*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3B100 Miniature Package Bare Optical Splitter-1:64-SC/UPC-60*12*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL32100 Miniature Package Bare Optical Splitter-2:2-SC/UPC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL34100 Miniature Package Bare Optical Splitter-2:4-SC/UPC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL36100 Miniature Package Bare Optical Splitter-2:8-SC/UPC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL38100 Miniature Package Bare Optical Splitter-2:16-SC/UPC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3A100 Miniature Package Bare Optical Splitter-2:32-SC/UPC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL31500 Miniature Package Bare Optical Splitter-1:2-FC/UPC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL33500 Miniature Package Bare Optical Splitter-1:4-FC/UPC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL35500 Miniature Package Bare Optical Splitter-1:8-FC/UPC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL37500 Miniature Package Bare Optical Splitter-1:16-FC/UPC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL39500 Miniature Package Bare Optical Splitter-1:32-FC/UPC-50*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3B500 Miniature Package Bare Optical Splitter-1:64-FC/UPC-60*12*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL32500 Miniature Package Bare Optical Splitter-2:2-FC/UPC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL34500 Miniature Package Bare Optical Splitter-2:4-FC/UPC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL36500 Miniature Package Bare Optical Splitter-2:8-FC/UPC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL38500 Miniature Package Bare Optical Splitter-2:16-FC/UPC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3A500 Miniature Package Bare Optical Splitter-2:32-FC/UPC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL31300 Miniature Package Bare Optical Splitter-1:2-LC/UPC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL33300 Miniature Package Bare Optical Splitter-1:4-LC/UPC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL39300 Miniature Package Bare Optical Splitter-1:32-LC/UPC-50*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3A300 Miniature Package Bare Optical Splitter-2:32-LC/UPC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL31400 Miniature Package Bare Optical Splitter-1:2-LC/APC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL33400 Miniature Package Bare Optical Splitter-1:4-LC/APC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL39400 Miniature Package Bare Optical Splitter-1:32-LC/APC-50*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3A400 Miniature Package Bare Optical Splitter-2:32-LC/APC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3B400 Miniature Package Bare Optical Splitter-1:64-LC/APC-60*12*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL34300 Miniature Package Bare Optical Splitter-2:4-LC/UPC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL36300 Miniature Package Bare Optical Splitter-2:8-LC/UPC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL38300 Miniature Package Bare Optical Splitter-2:16-LC/UPC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL38400 Miniature Package Bare Optical Splitter-2:16-LC/APC-60*7*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL32400 Miniature Package Bare Optical Splitter-2:2-LC/APC-D3*60mm-SPL9103-FBT-even-G.657A-0.9mm-1.5m
OSPL34400 Miniature Package Bare Optical Splitter-2:4-LC/APC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL36400 Miniature Package Bare Optical Splitter-2:8-LC/APC-50*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL65300 Optical Splitter-1:8-LC/UPC-130*100*25mm-SPL2803-PLC-G.657A
OSPL67300 Optical Splitter-1:16-LC/UPC-130*100*50mm-SPL2803-PLC-G.657A
OSPL63300 Optical Splitter-1:4-LC/UPC-130*100*25mm-SPL2803-PLC-G.657A
OSPL63100 Optical Splitter-1:4-SC/UPC-130*100*25mm-SPL2803-PLC-G.657A
OSPL65100 Optical Splitter-1:8-SC/UPC-130*100*25mm-SPL2803-PLC-G.657A
OSPL67100 Optical Splitter-1:16-SC/UPC-130*100*50mm-SPL2803-PLC-G.657A
OSPL35400 Miniature Package Bare Optical Splitter-1:8-LC/APC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL47100 Miniature Package Bare Optical Splitter-1:16-SC/UPC-60*12*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL47200 Miniature Package Bare Optical Splitter-1:16-SC/APC-60*12*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL47400 Miniature Package Bare Optical Splitter-1:16-LC/APC-60*12*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL48100 Miniature Package Bare Optical Splitter-2:16-SC/UPC-80*12*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL48200 Miniature Package Bare Optical Splitter-2:16-SC/APC-80*12*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL48400 Miniature Package Bare Optical Splitter-2:16-LC/APC-80*12*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL49100 Miniature Package Bare Optical Splitter-1:32-SC/UPC-80*20*6mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL49200 Miniature Package Bare Optical Splitter-1:32-SC/APC-80*20*6mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL49400 Miniature Package Bare Optical Splitter-1:32-LC/APC-80*20*6mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL4A100 Miniature Package Bare Optical Splitter-2:32-SC/UPC-80*20*6mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL4A200 Miniature Package Bare Optical Splitter-2:32-SC/APC-80*20*6mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL4A400 Miniature Package Bare Optical Splitter-2:32-LC/APC-80*20*6mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL37400 Miniature Package Bare Optical Splitter-1:16-LC/APC-40*4*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3C200 Miniature Package Bare Optical Splitter-2:64-SC/APC-70*12*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3C300 Miniature Package Bare Optical Splitter-2:64-LC/UPC-70*12*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3C400 Miniature Package Bare Optical Splitter-2:64-LC/APC-70*12*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL3C100 Miniature Package Bare Optical Splitter-2:64-SC/UPC-70*12*4mm-SPL9103-PLC-even-G.657A-0.9mm-1.5m
OSPL63200 Optical Splitter-1:4-SC/APC-130*100*25mm-SPL2803-PLC-G.657A
OSPL65200 Optical Splitter-1:8-SC/APC-130*100*25mm-SPL2803-PLC-G.657A
OSPL43100 Miniature Package Bare Optical Splitter-1:4-SC/UPC-60*7*4mm-SPL9105-PLC-even-G.657A-0.9mm-0.3m
OSPL43200 Miniature Package Bare Optical Splitter-1:4-SC/APC-60*7*4mm-SPL9105-PLC-even-G.657A-0.9mm-0.3m
OSPL45100 Miniature Package Bare Optical Splitter-1:8-SC/UPC-60*7*4mm-SPL9105-PLC-even-G.657A-0.9mm-0.3m
OSPL51100 Compact Splitter assembly-1:2-SC/UPC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL51200 Compact Splitter assembly-1:2-SC/APC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL51400 Compact Splitter assembly-1:2-LC/APC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL53100 Compact Splitter assembly-1:4-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL53200 Compact Splitter assembly-1:4-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL53400 Compact Splitter assembly-1:4-LC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL55100 Compact Splitter assembly-1:8-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL55200 Compact Splitter assembly-1:8-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL55400 Compact Splitter assembly-1:8-LC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL57100 Compact Splitter assembly-1:16-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL57200 Compact Splitter assembly-1:16-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL57400 Compact Splitter assembly-1:16-LC/APC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL59100 Compact Splitter assembly-1:32-SC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL59200 Compact Splitter assembly-1:32-SC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL59400 Compact Splitter assembly-1:32-LC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5B100 Compact Splitter assembly-1:64-SC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5B200 Compact Splitter assembly-1:64-SC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5B400 Compact Splitter assembly-1:64-LC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL52100 Compact Splitter assembly-2:2-SC/UPC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL52200 Compact Splitter assembly-2:2-SC/APC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL52400 Compact Splitter assembly-2:2-LC/APC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL54100 Compact Splitter assembly-2:4-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL54200 Compact Splitter assembly-2:4-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL54400 Compact Splitter assembly-2:4-LC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL56100 Compact Splitter assembly-2:8-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL56200 Compact Splitter assembly-2:8-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL56400 Compact Splitter assembly-2:8-LC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL58100 Compact Splitter assembly-2:16-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL58200 Compact Splitter assembly-2:16-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL58400 Compact Splitter assembly-2:16-LC/APC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL5A100 Compact Splitter assembly-2:32-SC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5A200 Compact Splitter assembly-2:32-SC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5A400 Compact Splitter assembly-2:32-LC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5C100 Compact Splitter assembly-2:64-SC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5C200 Compact Splitter assembly-2:64-SC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5C400 Compact Splitter assembly-2:64-LC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL65101 Optical Splitter-1:8-SC/UPC-130*100*25mm-SPL2803-PLC-G.657A
OSPL67101 Optical Splitter-1:16-SC/UPC-130*100*50mm-SPL2803-PLC-G.657A
OSPL51300 Compact Splitter assembly-2x1:2-LC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL67200 Optical Splitter-1:16-SC/APC-130*100*50mm-SPL2803-PLC-G.657A
OSPL53101 Compact Splitter assembly-1:4-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL55101 Compact Splitter assembly-1:8-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL57101 Compact Splitter assembly-1:16-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL59101 Compact Splitter assembly-1:32-SC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL5B101 Compact Splitter assembly-1:64-SC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL61100 Optical Splitter-1:2-SC/UPC-130*100*25mm-SPL2803-FBT-G.657A1
OSPL62100 Optical Splitter-2:2-SC/UPC-130*100*25mm-SPL2803-FBT-G.657A1
OSPL64100 Optical Splitter-2:4-SC/UPC-130*100*25mm-SPL2803-FBT-G.657A1
OSPL66100 Optical Splitter-2:8-SC/UPC-130*100*25mm-SPL2803-FBT-G.657A1
OSPL68100 Optical Splitter-2:16-SC/UPC-130*100*50mm-SPL2803-FBT-G.657A1
OSPL69100 Optical Splitter-1:32-SC/UPC-266*100*50mm-SPL2803-PLC-G.657A1
OSPL53201 Compact Splitter assembly-1:4-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL55201 Compact Splitter assembly-1:8-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL57201 Compact Splitter assembly-1:16-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL59201 Compact Splitter assembly-1:32-SC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL5B201 Compact Splitter assembly-1:64-SC/APC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL51102 Compact Splitter assembly-1:2-10/90-SC/UPC-110*60*10mm-SPL2605-FBT-even-G.657A-2mm-1.5m
OSPL45200 Miniature Package Bare Optical Splitter-1:8-SC/APC-60*7*4mm-SPL9105-PLC-even-G.657A-0.9mm-0.3m
OSPL45101 Miniature Package Bare Optical Splitter-1:8-SC/UPC-60*7*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL45201 Miniature Package Bare Optical Splitter-1:8-SC/APC-60*7*4mm-SPL9105-PLC-even-G.657A-0.9mm-in 1.5m/out 1m
OSPL47201 Miniature Package Bare Optical Splitter-1:16-SC/APC-60*12*4mm-SPL9105-PLC-even-G.657A-0.9mm-0.3m
OSPL47101 Miniature Package Bare Optical Splitter-1:16-SC/UPC-60*12*4mm-SPL9105-PLC-even-G.657A-0.9mm-0.3m
OSPL43101 Miniature Package Bare Optical Splitter-1:4-SC/UPC-60*7*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL43201 Miniature Package Bare Optical Splitter-1:4-SC/APC-60*7*4mm-SPL9105-PLC-even-G.657A-0.9mm-1m
OSPL51500 Compact Splitter assembly-1:2-FC/UPC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL53500 Compact Splitter assembly-1:4-FC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL55500 Compact Splitter assembly-1:8-FC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL57500 Compact Splitter assembly-1:16-FC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL59500 Compact Splitter assembly-1:32-FC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5B500 Compact Splitter assembly-1:64-FC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL52500 Compact Splitter assembly-2:2-FC/UPC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-1.5m
OSPL54500 Compact Splitter assembly-2:4-FC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL56500 Compact Splitter assembly-2:8-FC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL58500 Compact Splitter assembly-2:16-FC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5A500 Compact Splitter assembly-2:32-FC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL5C500 Compact Splitter assembly-2:64-FC/UPC-110mm*60mm*20mm-SPL2605-PLC-even-G.657A1-2mm-1.5m
OSPL51101 Compact Splitter assembly-1:2-SC/UPC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-2.5m
OSPL51201 Compact Splitter assembly-1:2-SC/APC-110mm*60mm*10mm-SPL2605-FBT-even-G.657A1-2mm-2.5m
OSPL54101 Compact Splitter assembly-2:4-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL54201 Compact Splitter assembly-2:4-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL56101 Compact Splitter assembly-2:8-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL56201 Compact Splitter assembly-2:8-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL58101 Compact Splitter assembly-2:16-SC/UPC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
OSPL58201 Compact Splitter assembly-2:16-SC/APC-110mm*60mm*10mm-SPL2605-PLC-even-G.657A1-2mm-2.5m
