Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | MA5603 | Type: | OLT |
|---|---|---|---|
| Application: | FTTH FTTB FTTX Network | Warranty: | 1 Year |
| Port: | Shenzhen |
Configuration

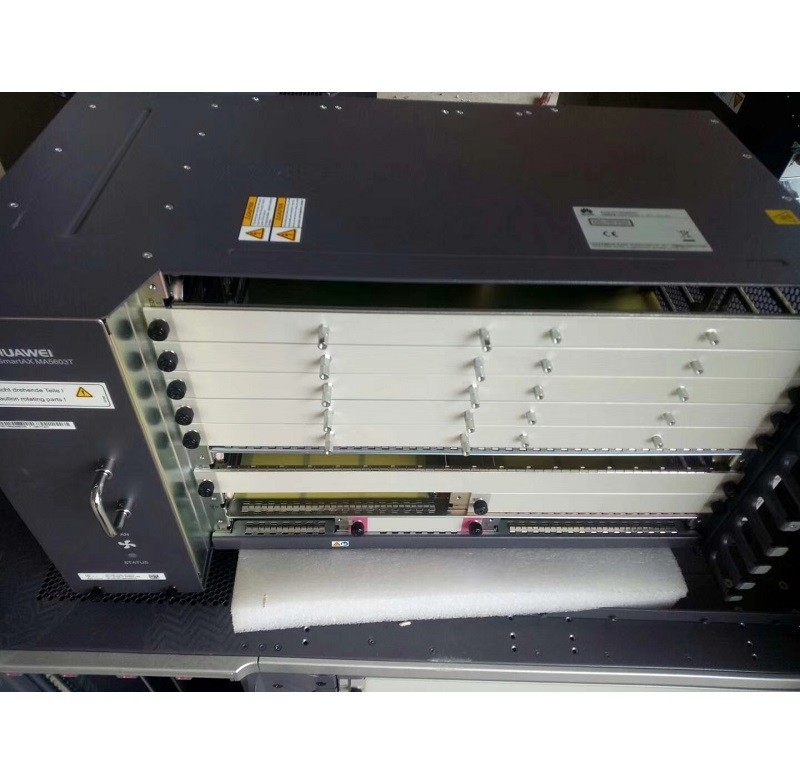

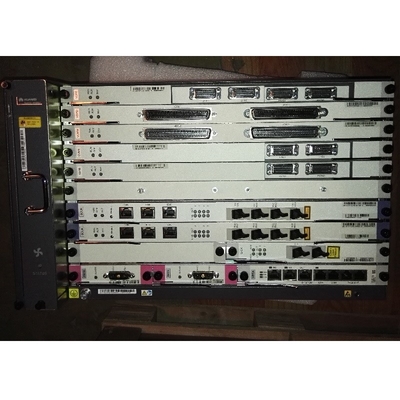

This topic provides the configuration of the boards in the MA5603T service subrack, and lists the type of the boards.
H801MABO and H802MABO are the backplanes supported by the MA5603T. H801MABO does not support the Vectoring feature, and H802MABO supports the Vectoring feature.
HUAWEI MA5603T CARD LIST:
H801SCUB
H801SCUN
H802P2CA
H801CITD
H801PRTE
H801ASRB-32port
H801ASPB-64port VOIP
H808ASPB-64portVOIP
H802DSRD-32port ISDN
H802EDTB-16port SHDSL+16port E1
H802ADPD-64port ADSL2+ over POTS
H805ADPD-64portADSL2+ over POTS
H802ADQD-64port ADSL2+ over ISDN
H802ADKM-64port ADSL2+
H80BADPE-64port ADSL2+ over POTS
H805VDRD-24port VDSL2 over POTS
H805VDMF-48port VDSL2 over POTS
H802VDNF-48port VDSL2 over ISDN
H802VDJM-48port VDSL2
H80BVDPE-64port VDSL2 over POTS
H80BVDPM-64port VDSL2 over POTS
H802SHLB-16port SHDSL.bis
H80ASHLM-16port SHDSL.bis
H801SPPLA-64port ADSL over POTS
H801SPPLB-64port ADSL over POTS
H801SPPLC-64port ADSL over POTS
H801SPPH-64port ADSL over ISDN
H801SPPF1-64port ADSL over POTS
H801VSNF-48port VDSL2 over POTS
H801VSNLA-48port VDSL2 over POTS
H801VSPHA-64port VDSL2 over ISDN
H801VSPLA-64port VDSL over POTS
Typical Configuration | Static power consumption | Maximum power consumption | Typical power consumption | Board configuration |
|---|---|---|---|---|
ADSL2+ | 189.84 | 606.55 | 398.195 | H802SCUN*2+H801X2CS*2+H801CITD+H801PRTE*2+H801FCBI+H805ADPD*6 |
VDSL2 | 267.84 | 702.55 | 485.195 | H801SCUN*2+H801X2CS*2+H801CITD+H801PRTE*2+H801FCBI+H80BVDPM(17a)*6 |
POTS | 213.84 | 396.55 | 305.195 | H801SCUN*2+H801X2CS*2+H801CITD+H801PRTE*2+H801FCBI+H808ASPB*6 |
P2P | 537.84 | 810.55 | 674.195 | H802SCUN*2+H801X2CS*2+H801CITD+H801PRTE*2+H801FCBI+H802OPGD*6 |
GPON (H805GPBD) | 375.84 | 504.55 | 440.195 | H802SCUN*2+H801X2CS*2+H801CITD+H801PRTE*2+H801FCBI+H805GPBD*6 |
GPON (H806GPBH) | 309.84 | 486.55 | 398.195 | H802SCUN*2+H801X2CS*2+H801CITD+H801PRTE*2+H801FCBI+H806GPBH*6 |
GPON (H802SCUN+H805GPFD) | 273.84 | 510.55 | 392.195 | H802SCUN*2+H801X2CS*2+H801CITD+H801PRTE*2+H801FCBI+H805GPFD*6 |
GPON (H801SCUH+H805GPFD) | 391.84 | 678.55 | 535.195 | H801SCUH*2+H801X2CS*2+H801CITD+H801PRTE*2+H801FCBI+H805GPFD*6 |
Item | Specification |
|---|---|
Dimensions (W x D x H, excluding mounting brackets) | 442.00 mm x 283.20 mm x 263.90 mm |
Dimensions (W x D x H, including mounting brackets of 19-inch standard) | 482.60 mm x 283.20 mm x 263.90 mm |
Dimensions (W x D x H, including mounting brackets of ETSI standard) | 535.00 mm x 283.20 mm x 263.90 mm |
Weight (empty service subrack) | 7.00 kg |
