Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | MA5680T |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|

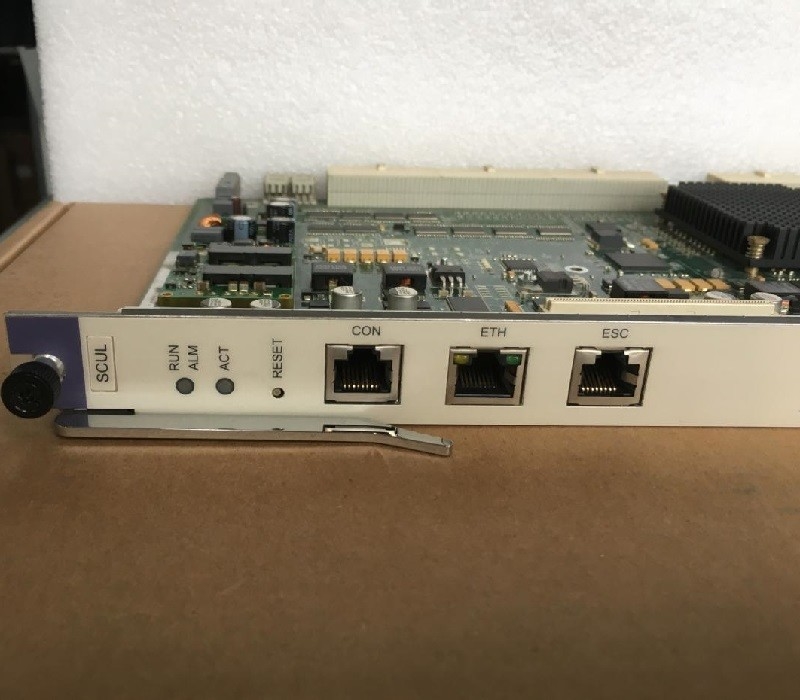

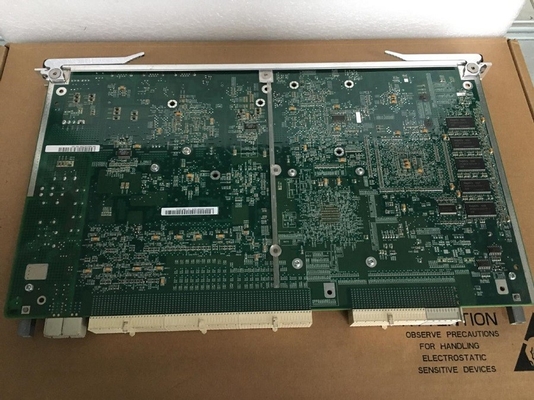

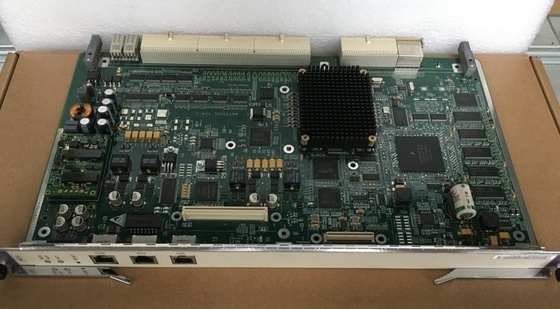

H801SCUL Board
The H801SCUL board is a super control unit board. It mainly controls the system and processes broadband services. The H801SCUL board communicates with the service boards through the GE channel or the 10GE channel to configure, manage, and control the device. It also implements the simple route protocol functions. The H801SCUL board processes the alarms through the inband NMS. Based on the upper-layer protocol between the H801SCUL board and the service boards, the software of the H801SCUL separates the management information such as alarms from the information reported by the service boards. Then, the H801SCUL board identifies and processes the information.
Feature and Specifications
SCU Boards Comparison
All SCU boards support the functions as below:
System control and management unit
Active/standby switchover
Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH
Environmental monitoring through environment monitoring serial port ESC
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 1 Major differences between SCU boards
| Board | Access Service | Daughter Board | Load sharing | Ethernet synchronization | Temperature querying and high temperature alarming | Built-in 2GB CF card | Centric Management for GE Remote Extended Subracks | D-CMTS |
| H801SCUL | Optical | H801CKMC H801CKMD | No | No | Yes | No | No | No |
NOTE:
H801SCUN and H802SCUN are slot compatible.
Table 2 Ports of SCU boards
Parameters
Power Consumption and Maximum Frame Size of Boards
You can query power consumption, maximum frame size, and normal operating temperature of all boards.
lists the power consumption and maximum frame size of boards. "-" indicates N/A.
The operating temperature of all the boards is -40°C to +65°C. The lowest board startup temperature is -25°C.
NOTE:
The power consumption of the board is tested in the following conditions:
Working voltage: -53.5 V DC.
Ambient temperature: 25 °C.
Static power consumption: All ports do not carry any loads. Specifically, users under POTS ports hang up phones, xDSL ports are deactivated, and optical modules are not installed on optical ports
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million products in stock.
Most of our technical engineers had work exprience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
