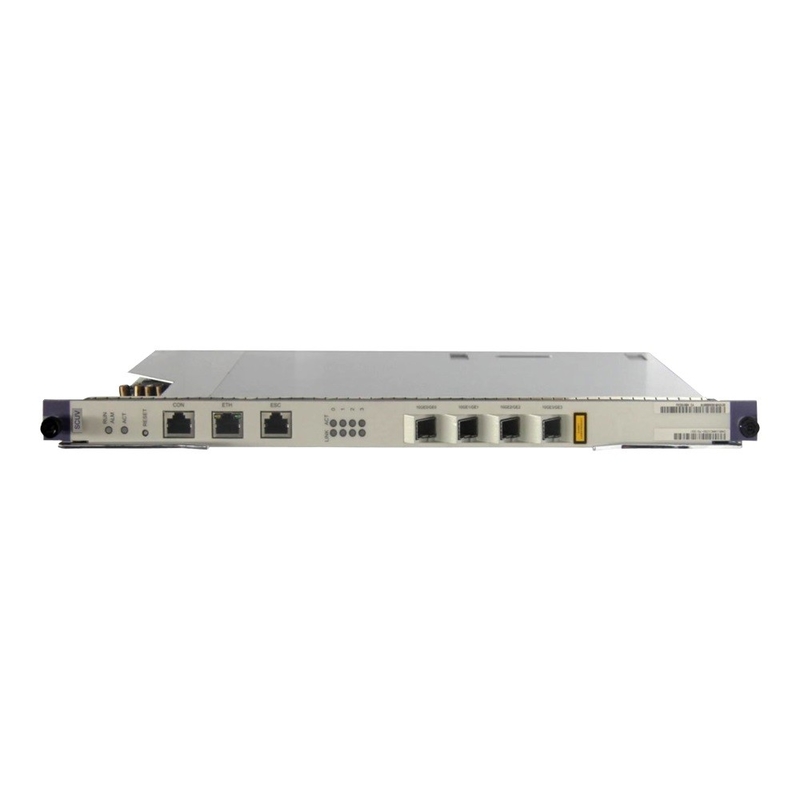

Huawei SCUV Super Control Unit Board huawei H801SCUV

 H801SCUV Board

The H801SCUV board is a super control unit board. It is the core of the system control and service switching and aggregation. The H801SCUV board can also function as the management and control core of the integrated network management system (NMS). It communicates with service boards about the key management and control information through the master/slave serial port and inband 10GE/20GE channel. In this manner, the H801SCUV board configures, manages, and controls the device, and also implements the simple route protocol functions.

 Feature and Specifications

SCU Boards Comparison

All SCU boards support the functions as below:

System control and management unit

Active/standby switchover

Local and remote maintenance through maintenance serial port CON or maintenance Ethernet port ETH

Environmental monitoring through environment monitoring serial port ESC

In the table, "Yes" indicates "supported" and "No" indicates "not supported".

Table 1 Major differences between SCU boards

 NOTE:

H801SCUN and H802SCUN are slot compatible.

Table 2 Ports of SCU boards

 Parameters

Power Consumption and Maximum Frame Size of Boards

You can query power consumption, maximum frame size, and normal operating temperature of all boards.

 lists the power consumption and maximum frame size of boards. "-" indicates N/A.

The operating temperature of all the boards is -40°C to +65°C. The lowest board startup temperature is -25°C.

 NOTE:

The power consumption of the board is tested in the following conditions:

Working voltage: -53.5 V DC.

Ambient temperature: 25 °C.

 Working Principle

Figure 1 Working principle of the H801SCUV board The basic working principle of the H801SCUV board is as follows:

The control module manages the entire board and the service boards, and communicates with the fan tray through the extended serial port. In addition, the control module can be configured with a built-in CF card to expand its storage space.

The logic module implements the logic control and stratum-3 clock functions.

The power module supplies power to other functional modules of the board.

The clock module provides clock signals for other functional modules of the board.

The switching module provides the 10GE port and the 20GE port to switch and aggregate services at Layer 2 or Layer 3.

Providing four 10GE ports for upstream transmission using ports on the front panel

Providing two 10GE ports for each upstream boards in upstream transmission

Providing 16 10GE/20GE ports for implementing 10GE/20GE switching on each service board

Providing two 20GE ports for load sharing with the standby control board
