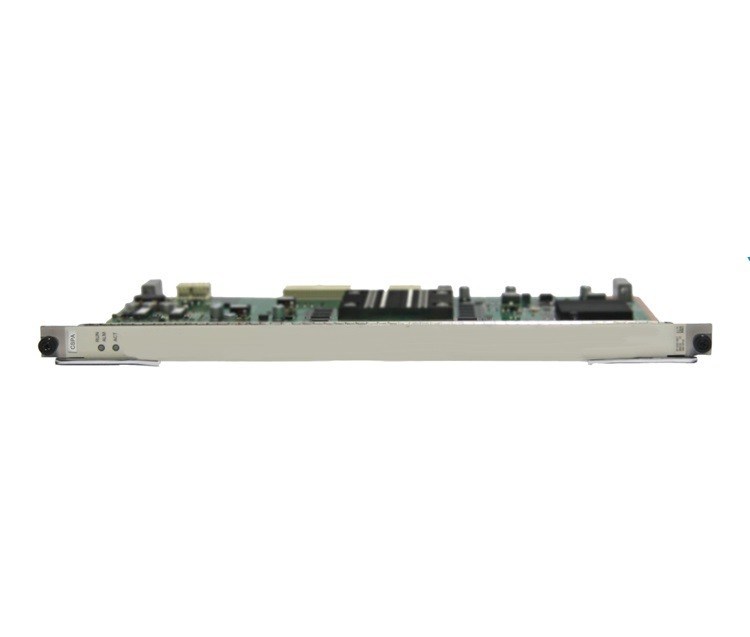

Huawei H801CSPA CESoP Service Processing Board

H801CSPA Board

The H801CSPA is a CESoP service processing board. It supports the structure-agnostic TDM over packet (SAToP) processing of 64 channels of E1 signals.

Overview

The H801CSPA board supports the following functions:

SAToP processing of 64 channels of E1 signals

8 kHz clock channel from the H801CSPA board to the backplane, which is used to transmit the clock signals recovered from the service to the control board

Automatic power shutdown in case of a high temperature

Parameters

Power Consumption and Maximum Frame Size of Boards

You can query power consumption, maximum frame size, and normal operating temperature of all boards.

 lists the power consumption and maximum frame size of boards. "-" indicates N/A.

The operating temperature of all the boards is -40°C to +65°C. The lowest board startup temperature is -25°C.

 NOTE:

The power consumption of the board is tested in the following conditions:

Working voltage: -53.5 V DC.

Ambient temperature: 25 °C.

Static power consumption: All ports do not carry any loads. Specifically, users under POTS ports hang up phones, xDSL ports are deactivated, and optical modules are not installed on optical ports

Maximum power consumption: All ports fully carry loads. However, only 25% users under POTS ports concurrently pick up phones and the feeding current is 20 mA.

The board power consumption slightly varies with the power module configured for the board and discreteness of components.

Table 1 Power consumption and maximum frame size of boards

Working Principle

Figure 1 Working principle of the H801CSPA board

The basic working principle of the H801CSPA board is as follows:

The control module loads the board software, controls the running of the board, and manages the entire board.

The service processing module implements the switching of the services.

The DSP module implements the SAToP algorithm function.

The power module draws -48 V power from the backplane and converts the power into working power for each functional module of the board.

The clock module provides clock signals for each functional module of the board.
