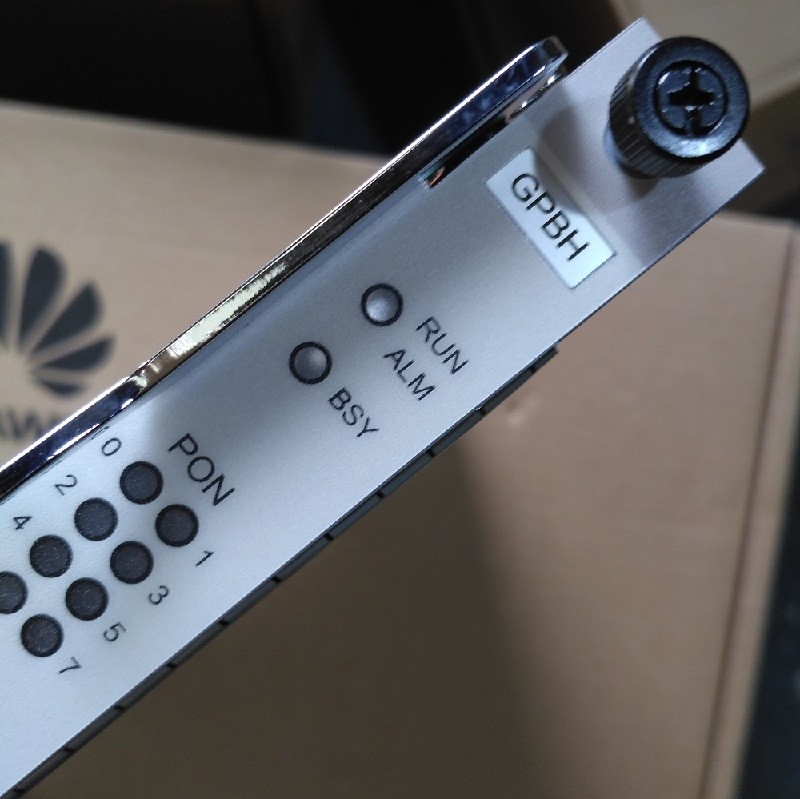

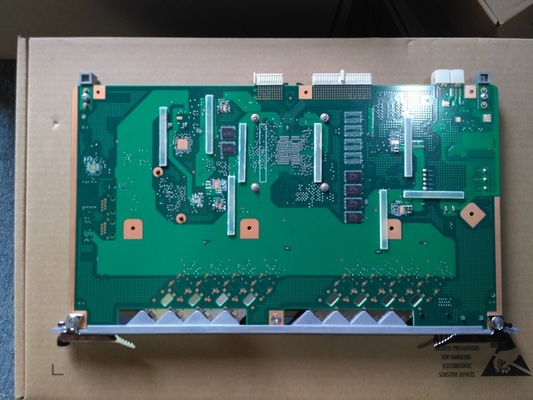

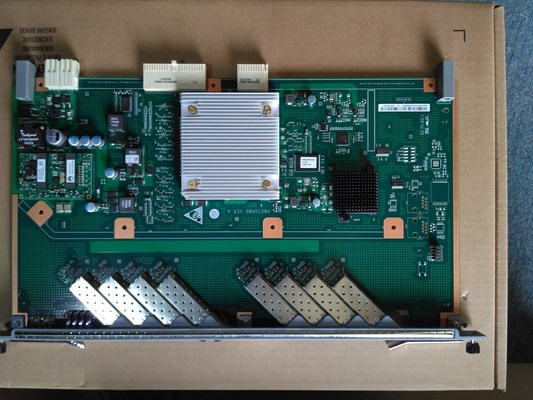

807GPBH Board
H807GPBH is a 8-port GPON OLT interface board. It works with the optical network unit (ONU) to provide GPON access service.
Feature and Specifications
GPON Service Board Comparison
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 1 Specifications lists of GPON service board
Specification | H801GPBC | H802GPBD | H805GPBD | H802GPFD/H805GPFD | H806GPBH/H807GPBH | H801GPMD |
Port quantity | 4 | 8 | 8 | 16 | 8 | 8 |
MAX Split ratio (Class B+) | 1: 64 | 1: 64 | 1: 64 | 1: 64 | 1: 64 | 1: 64 |
MAX Split ratio (Class C+/Class C++) | Not support | 1: 128 | 1: 128 | 1: 128 | 1: 128 | 1: 128 |
ONU-based shaping | No | No | Yes | Yes | Yes | Yes |
ONU-based rate limitation | × | √ | √ | √ | √ | √ |
CAR group | × | √ | √ | √ | √ | √ |
Maximum Number of Service Flows Supported by the Board | 8184 | 8184 | 8184 | 16368 | 8184 | 6144 |
