Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|

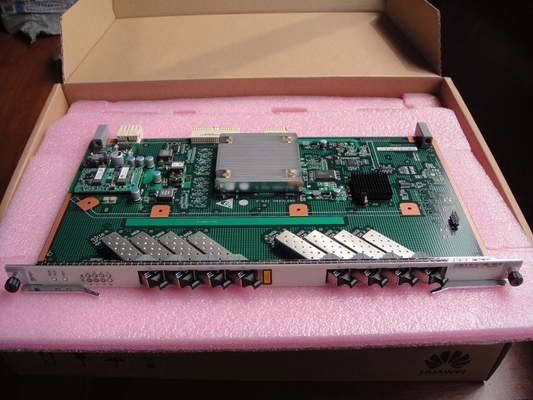

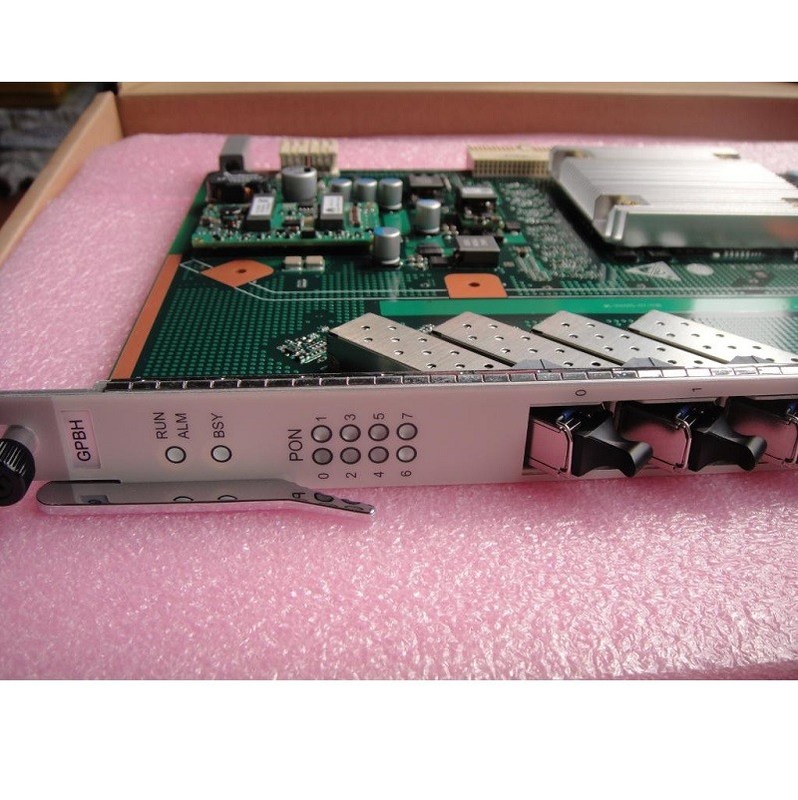

H807GPBH Board
H807GPBH is a 8-port GPON OLT interface board. It works with the optical network unit (ONU) to provide GPON access service.
Feature and Specifications
GPON Service Board Comparison
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 1 Specifications lists of GPON service board
Specification | H801GPBC | H802GPBD | H805GPBD | H802GPFD/H805GPFD | H806GPBH/H807GPBH | H801GPMD |
Port quantity | 4 | 8 | 8 | 16 | 8 | 8 |
MAX Split ratio (Class B+) | 1: 64 | 1: 64 | 1: 64 | 1: 64 | 1: 64 | 1: 64 |
MAX Split ratio (Class C+/Class C++) | Not support | 1: 128 | 1: 128 | 1: 128 | 1: 128 | 1: 128 |
ONU-based shaping | No | No | Yes | Yes | Yes | Yes |
ONU-based rate limitation | × | √ | √ | √ | √ | √ |
CAR group | × | √ | √ | √ | √ | √ |
Board supporting upstream FEC | No | Yes | Yes | Yes | Yes | Yes |
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
