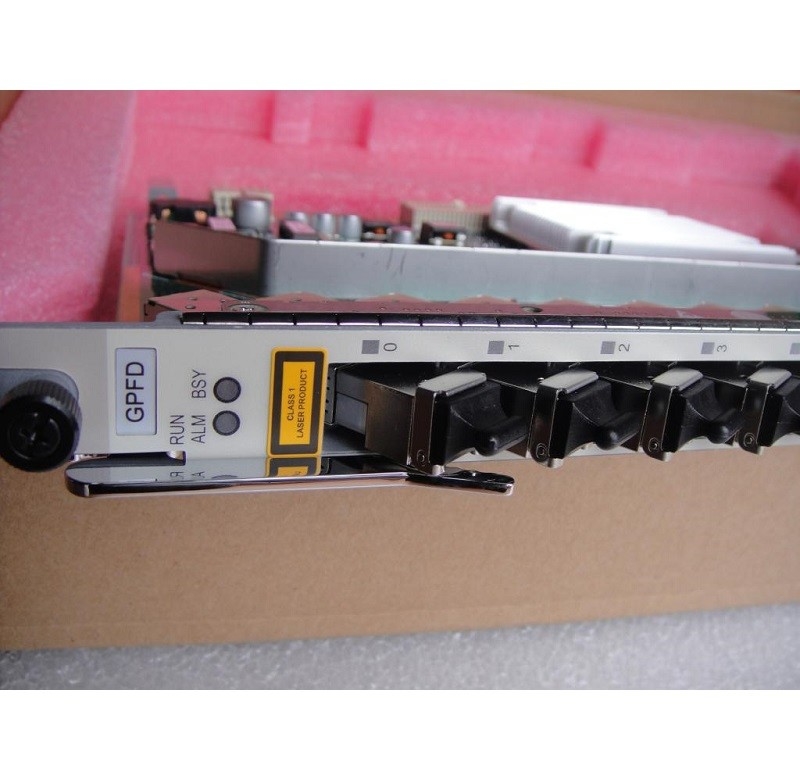

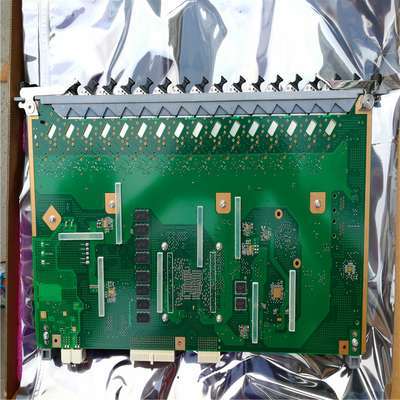

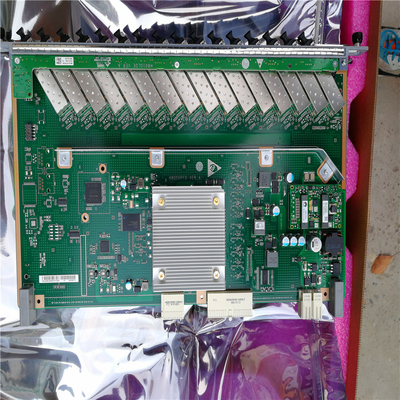

Huawei H803GPFD 16-port GPON OLT Interface Board for MA5600T MA5680T
H805GPFD Board
H805GPFD is a 16-port GPON OLT interface board. It works with the optical network unit (ONU) to provide GPON access service.
Feature and Specifications
GPON Service Board Comparison
In the table, "Yes" indicates "supported" and "No" indicates "not supported".
Table 1 Specifications lists of GPON service board
Specification | H801GPBC | H802GPBD | H805GPBD | H802GPFD/H805GPFD | H806GPBH/H807GPBH | H801GPMD |
Port quantity | 4 | 8 | 8 | 16 | 8 | 8 |
MAX Split ratio (Class B+) | 1: 64 | 1: 64 | 1: 64 | 1: 64 | 1: 64 | 1: 64 |
MAX Split ratio (Class C+/Class C++) | Not support | 1: 128 | 1: 128 | 1: 128 | 1: 128 | 1: 128 |
D-CMTS | No | No | No | No | No | Yes |
ONU-based shaping | No | No | Yes | Yes | Yes | Yes |
Optical performance monitor | Yes (querying Rx optical power is not supported) | Yes | Yes | Yes | Yes | Yes |
Controlled optical signal transmission of the optical module | No | Yes | Yes | Yes | Yes | Yes |
