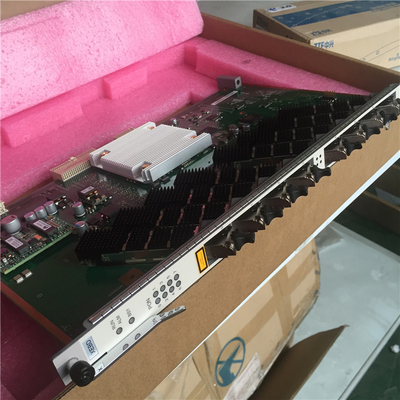

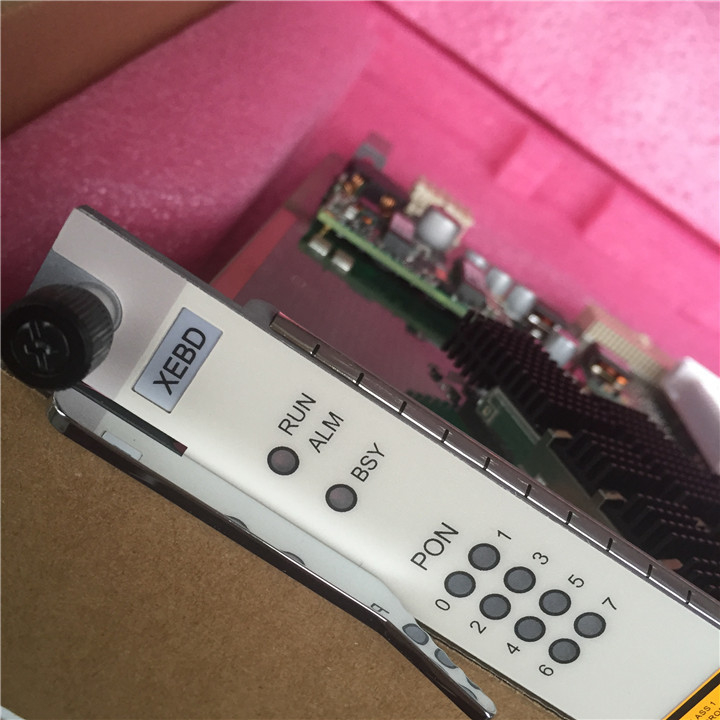

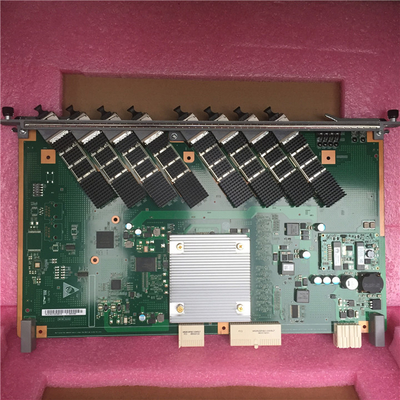

H801XEBD/ H802XEBD Board
H801XEBD/ H802XEBD is a 8-port 10G EPON OLT interface board. It works with the 10G EPON optical network unit (ONU) to provide 10G EPON access service.
Feature and Specifications
10G EPON Service Board Comparison
Service Board | H801XEBD | H802XEBD |
Number of 10G GPON ports supported by each board | 8 | 8 |
Port mode | XFP | XFP |
Rate mode | Supports both rate modes: asymmetric Rate mode symmetric Rate mode | asymmetric Rate mode |
Optical module | One-fiber bi-directional optical module. | One-fiber bi-directional optical module. |
Split ratio | Supports a maximum of 1:128 split ratio. NOTE: The actual split ratio is determined according to the model of optical modules and the distance of optical fibers. | Supports a maximum of 1:28 split ratio. NOTE: The actual split ratio is determined according to the model of optical modules and the distance of optical fibers. |
Maximum Number of Service Flows Supported by the Board | 8192 | 16368 |
The number of LLIDs per port | 256 | 256 |
Outputs 1588V2 time to the downstream device | Not support | Not support |
Temperature query and alarm in case of a high temperature | Support | Support |
Board power-off in case of a high temperature | Support | Support |
Parameters
Power Consumption and Maximum Frame Size of Boards
You can query power consumption, maximum frame size, and normal operating temperature of all boards.
lists the power consumption and maximum frame size of boards. "-" indicates N/A.
The operating temperature of all the boards is -40°C to +65°C. The lowest board startup temperature is -25°C.
NOTE:
The power consumption of the board is tested in the following conditions:
Working voltage: -53.5 V DC.
Ambient temperature: 25 °C.
The board power consumption slightly varies with the power module configured for the board and discreteness of components.
Table 1 Power consumption and maximum frame size of boards
Board | Power Consumption | Maximum Frame Size |
H801XEBD | Static: 54 W Maximum: 92 W | 1G channel:1996 bytes 10G channel:2004 bytes |
H802XEBD | Static: 25 W Maximum: 54 W | 1G channel:1996 bytes 10G channel:2004 bytes |
