 H802OPGE Board

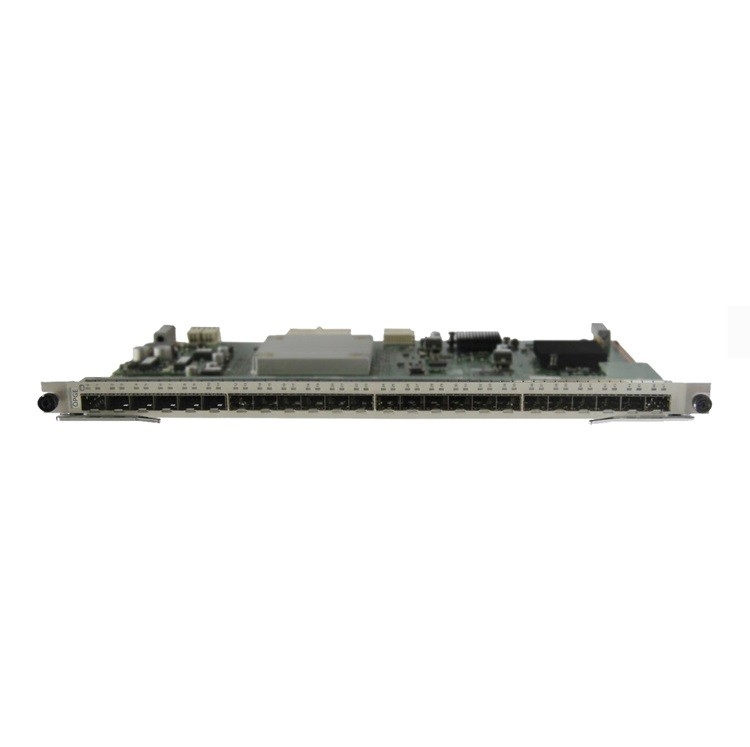

The H802OPGE board is a 48-port GE/FE Optical interface board, providing Ethernet optical access and cascading. It supports up to 48 channels of GE/FE P2P access services.

Specifications

Please refer to .

When you use H802OPGE boards to replace H802OPGD boards that are bound together, pay attention to the following items:

For V800R013C00 or earlier versions, you need to remove the 2 H802OPGD boards that are bound together and then replace them with H802OPGE boards. Note that the H802OPGD board and the H802OPGE board cannot be installed in the 2 slots (that are bound together) at the same time.

For V800R013C10 or later versions, you need to remove one of the 2 H802OPGD boards (that are bound together) and then install 1 H802OPGE board. After the H802OPGE board starts up and functions normally, replace another H802OPGD board.

Parameters

Power Consumption and Maximum Frame Size of Boards

You can query power consumption, maximum frame size, and normal operating temperature of all boards.

 lists the power consumption and maximum frame size of boards. "-" indicates N/A.

The operating temperature of all the boards is -40°C to +65°C. The lowest board startup temperature is -25°C.

 NOTE:

The power consumption of the board is tested in the following conditions:

Working voltage: -53.5 V DC.

Ambient temperature: 25 °C.

Static power consumption: All ports do not carry any loads. Specifically, users under POTS ports hang up phones, xDSL ports are deactivated, and optical modules are not installed on optical ports

Maximum power consumption: All ports fully carry loads. However, only 25% users under POTS ports concurrently pick up phones and the feeding current is 20 mA.

The board power consumption slightly varies with the power module configured for the board and discreteness of components.

Table 1 Power consumption and maximum frame size of boards

 Front Panel Port

Cable

The LC optical connector used in H802OPGE is shorter than the average LC optical connector.

Indicator
