Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|

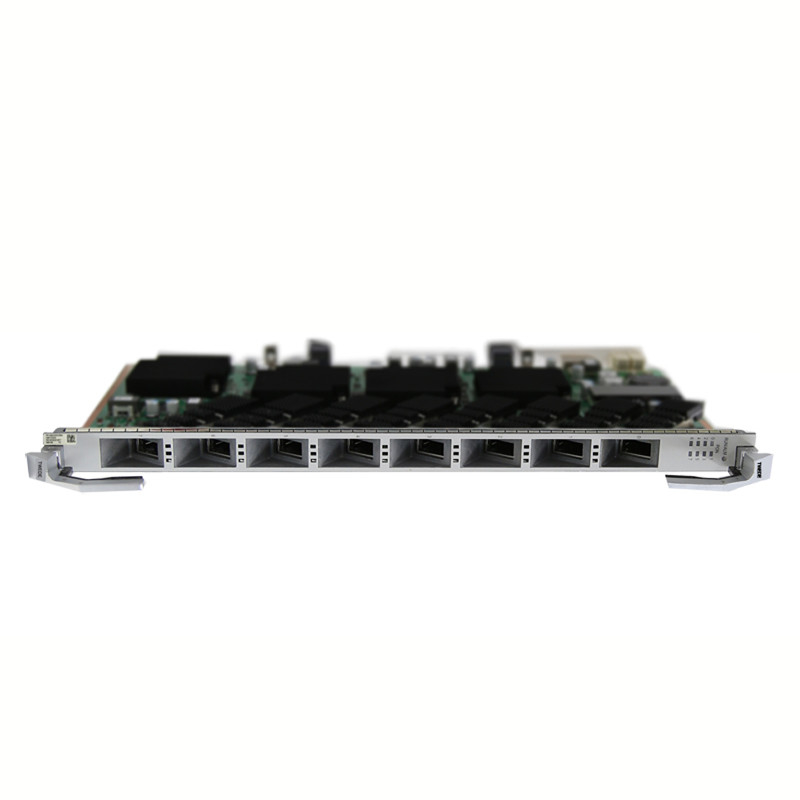

H901TWEDE Board Description
The H901TWEDE board is an 8-port XGS-PON interface board. It works together with the optical network unit (ONU) to provide XGS-PON access services.
Feature and Specifications
Please refer to "Comparison Between Boards of the Same Type".
Parameters
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle
Figure 1 Working principle of the H901TWEDE board
Indicates the channel of control signal. | Indicates the channel of service signal. | ||
Control module: loads the board software, controls the running of the board, and manages the board. | Switching module: aggregates and forwards the signals from 8 XGS-PON ports. Interface module: conversion between XGS-PON optical signals and Ethernet packets. | ||
Indicates the channel of power or clock signal. | The power module supplies power to each functional module of the board. The clock module provides clock signals for each functional module of the board. |
Front Panel Port
For details about supported optical module, see PON Optical Module.
Indicator
Indicator | Name | Status | Operation Description |
RUN/ALM | Running status indicator | Red: blinks | The board enters the APP start phase during the board startup |
Green: blinks every 0.25s | The board enters the phase of communication with the control board during its startup | ||
Green: blinks every 1s | The board works in the normal state | ||
Orange: blinks every 0.25s | A high-temperature alarm is generated | ||
Red: on | The board is faulty | ||
PON 0–7 | PON port indicator | Green: on | The ONT of the related PON port is online |
Green: off | The ONT of the related PON port is offline |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
