Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Port: | Shenzhen |
|---|

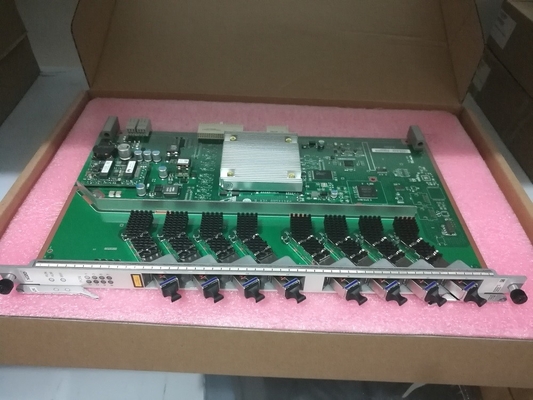

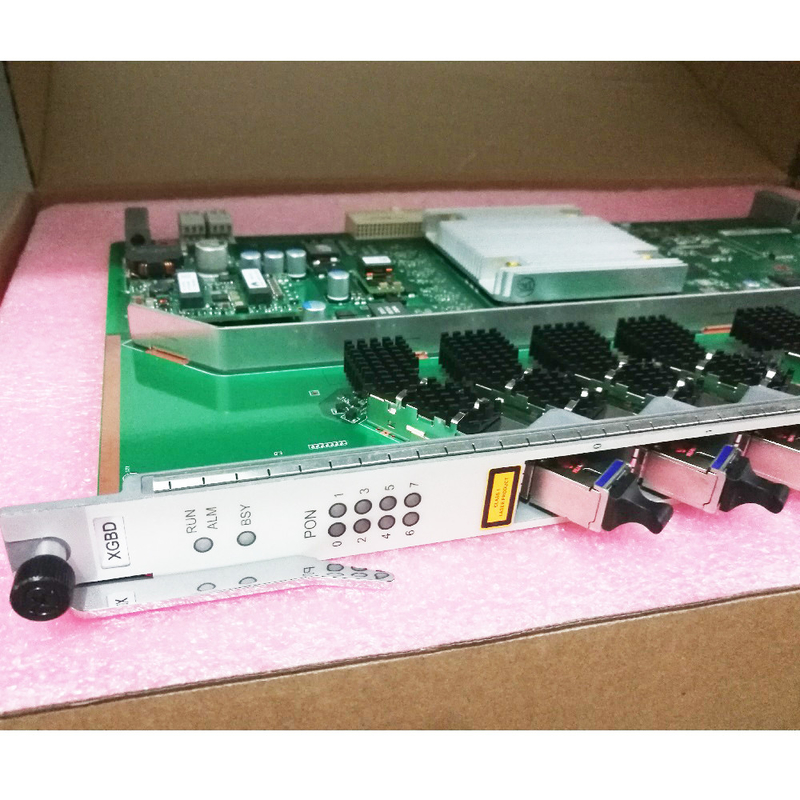

H801XGBD BoardH801XGBD is a 8-port 10G GPON OLT interface board. It works with the 10G GPON optical network unit (ONU) to provide 10G GPON access service.
Feature and Specifications
10G GPON Service Board Comparison
Service Board | H802XGBC | H801XGBD |
Number of 10G GPON ports supported by each board | 4 | 8 |
Port mode | XFP | SFP+ |
Optical module | One-fiber bi-directional optical module. | One-fiber bi-directional optical module. |
Number of GEM Port supported by each port | 3872 | 3872 |
Number of T-CONT supported by each port | 2048 | 2048 |
Split ratio | Supports a maximum of 1:128 split ratio. NOTE: The actual split ratio is determined according to the model of optical modules and the distance of optical fibers. | Supports a maximum of 1:256 split ratio. NOTE: The actual split ratio is determined according to the model of optical modules and the distance of optical fibers. |
Outputs 1588V2 time to the downstream device | Not support | Support |
Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module | Support | Support |
Temperature query and alarm in case of a high temperature | Support | Support |
Board power-off in case of a high temperature | Support | Support |
Parameters
Power Consumption and Maximum Frame Size of Boards
You can query power consumption, maximum frame size, and normal operating temperature of all boards.
lists the power consumption and maximum frame size of boards. "-" indicates N/A.
The operating temperature of all the boards is -40°C to +65°C. The lowest board startup temperature is -25°C.
NOTE:
The power consumption of the board is tested in the following conditions:
Working voltage: -53.5 V DC.
Ambient temperature: 25 °C.
Static power consumption: All ports do not carry any loads. Specifically, users under POTS ports hang up phones, xDSL ports are deactivated, and optical modules are not installed on optical ports
Maximum power consumption: All ports fully carry loads. However, only 25% users under POTS ports concurrently pick up phones and the feeding current is 20 mA.
The board power consumption slightly varies with the power module configured for the board and discreteness of components.
Table 1 Power consumption and maximum frame size of boards
Board | Power Consumption | Maximum Frame Size |
10G GPON interface board | ||
H801XGBD | Static: 26 W Maximum: 50 W | 2004 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
