Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OLT |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | CGHF | Application: | FTTH FTTB FTTX Network |
|---|---|---|---|
| Type: | MA5800 | Warranty: | 1 Year |
| Power Supply: | 48V | Port: | Shenzhen |

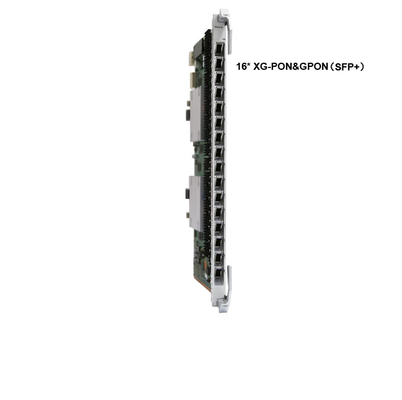

Huawei MA5800 series 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module
Huawei 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module
Apply to Huawei MA5800 X2, X7, X15, X17 NG OLT system
Max split radio: 1:256
GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XG-PON channel: Tx: 9.95Gbit/s, Rx: 2.49Gbit/s
Interface Type: SC

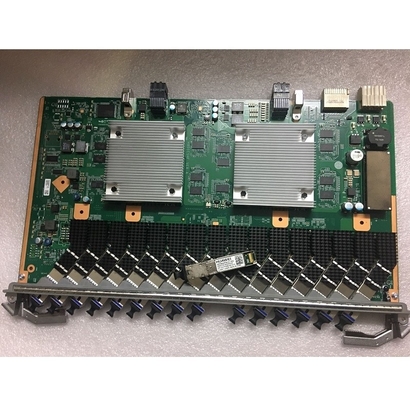

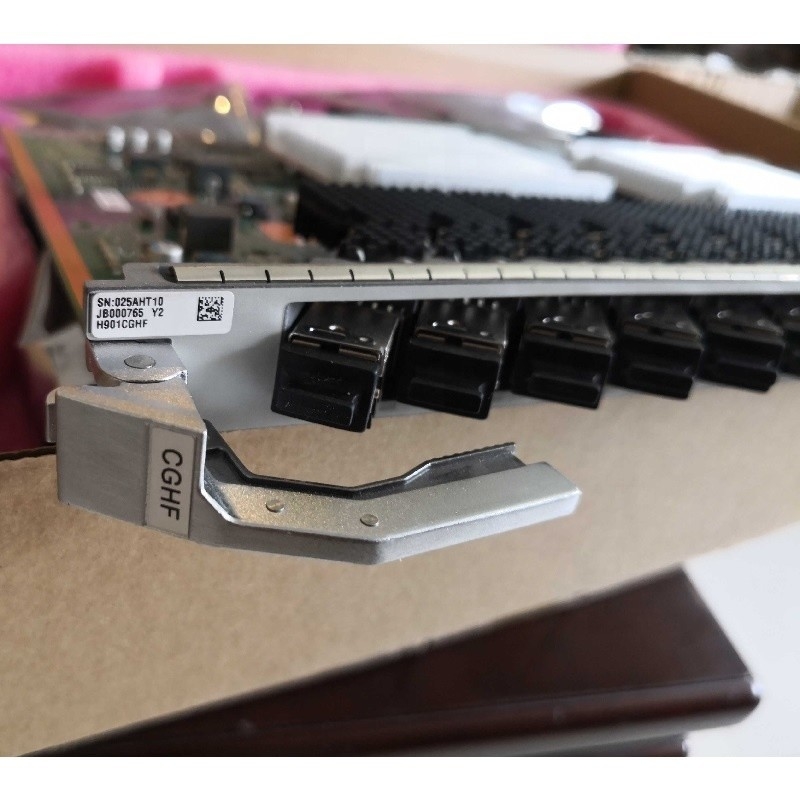

H901CGHF H902CGHF is a 16-port XG-PON and GPON Combo OLT interface board. It works together with the optical network unit (ONU) to provide XG-PON and GPON access services.
| Specification | |
| Service ports | |
| GPON Port | 16 XG-PON & GPON ports |

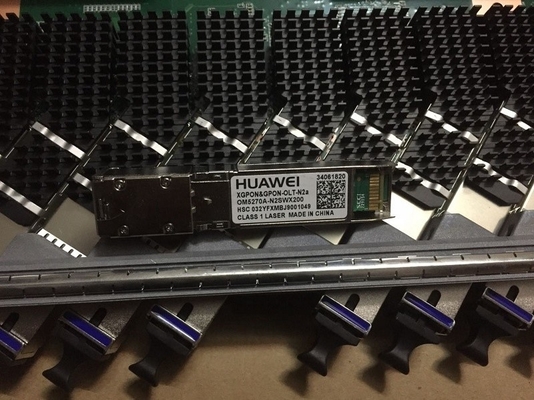

| GPON SFP+ Module Specification | |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | GPON channel: Tx: 1490 nm Rx: 1310 nm
XG-PON channel: Tx: 1577 nm Rx: 1270 nm |
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: Tx: 2.488 Gbit/s Rx: 1.244 Gbit/s
XG-PON channel: Tx: 9.953 Gbit/s Rx: 2.488 Gbit/s |
| Minimum Output Optical Power | GPON channel: 3 dBm XG-PON channel: 4 dBm |
| Maximum Output Optical Power | GPON channel: 7 dBm XG-PON channel: 8 dBm |
| Maximum Receiver Sensitivity | GPON channel: -32 dBm XG-PON channel: -29.5 dBm |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -12 dBm XG-PON channel: -9 dBm |
| Extinction Ratio | 8.2 dB |
| Function | |
| Forwarding capability | 200 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port | GPON: 1024 XG-PON: 2048 |
| Service flows per PON board | 16352 |
| Maximum frame size | 2052 bytes 9216 bytes (jumbo frame enabled) |
| Maximum number of MAC addresses | 131072 |
Maximum distance difference between two ONUs under the same PON port | 40 km |
| Device Specifications | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption and Maximum Frame Size | |
| Power Consumption | Static: 48 W Maximum: 106 W |
| Operating temperature | -40°C to +65°C |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
