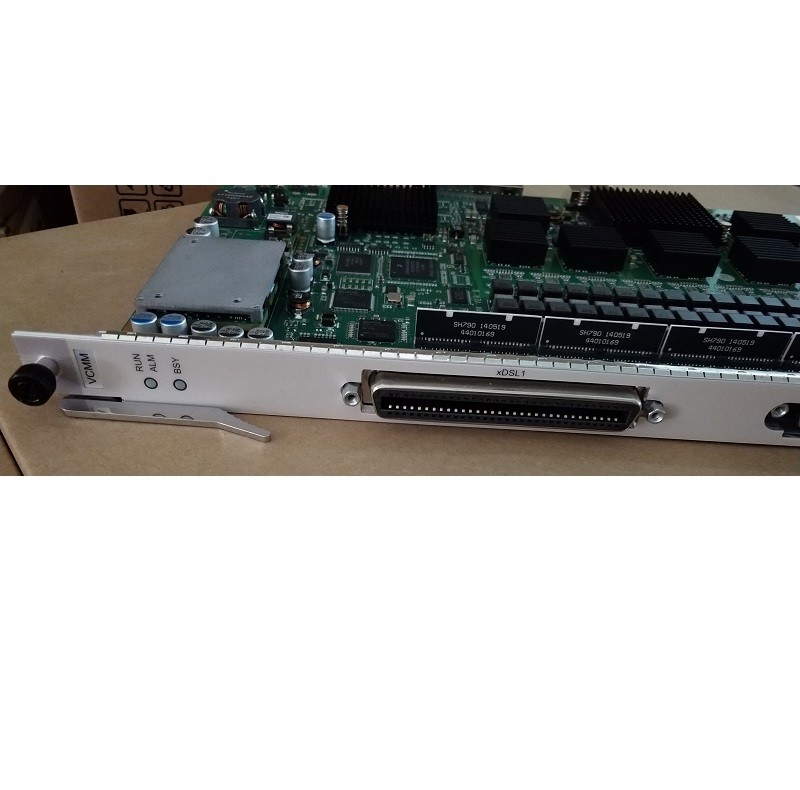

H80BVCMM 48-port VDSL2 over POTS service board

H80BVCMM Board Description
The H80BVCMM is a 48-port VDSL2 over POTS service board. It works with the VDSL transceiver unit-remote end (VTU-R) through the VDSL port to support the VDSL2 service and supporting vectoring.

Feature and Specifications
Please refer to "48-Channel VDSL2 Service Board Comparison".
Parameters
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle
Figure 1 Working principle of the H80BVCMM board

Indicates the channel of control signal.
Indicates the channel of service signal.

Control module: loads the board software, controls the running of the board, and manages the board.
MELT module: provides the MELT test function.
Indicates the service modules and boards which the service signals pass through.

Indicates the channel of power or clock signal.
The power module supplies power to each functional module of the board.
The clock module provides clock signals for each functional module of the board.
Front Panel Port
NOTICE:
When cables from the xDSL ports are routed to an outdoor environment or the user side, the MDF must be installed with a protective unit.
Indicator
Indicator Name Status Meaning
RUN ALM Running status indicator Green: blinks every 1s The board works in the normal state
Green: blinks every 0.25s The board is starting up
Orange: blinks A high-temperature alarm is generated
Red: on The board is faulty
BSY Port status indicator Green: on At least one service port is activated
Green: off No service port is activated
Pin Assignments
For pin assignment of the xDSL0 port, see Table 1; For pin assignment of the xDSL1 port, see Table 2;
Table 1 Pin assignments of the xDSL0 port
