H802SHGM Board Description

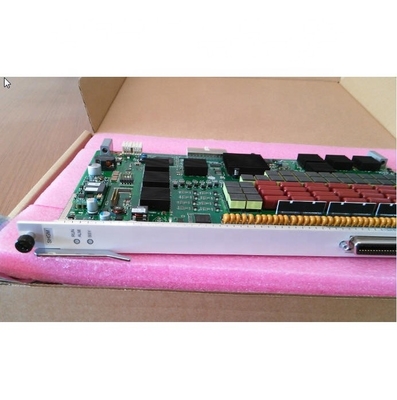

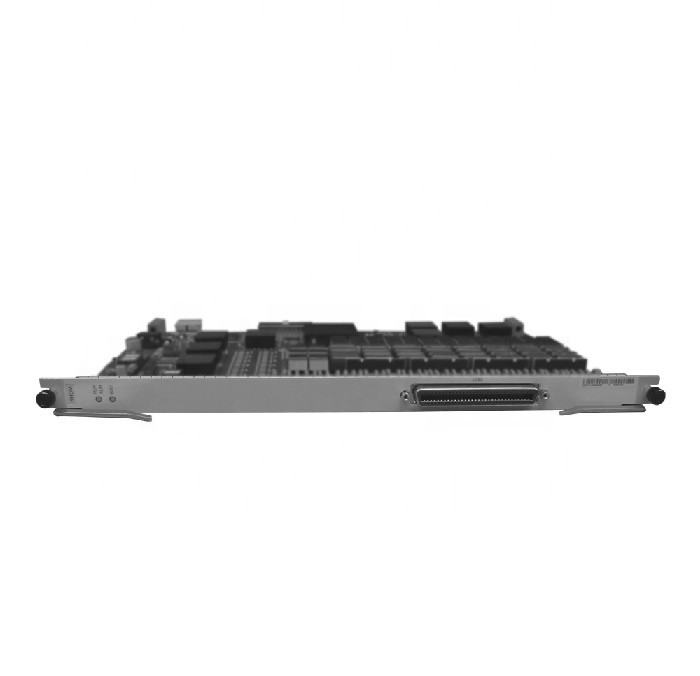

The H802SHGM board is a 32-port SHDSL.bis service board. It works with the SHDSL transceiver unit-remote (STU-R) to provide 32-channels of SHDSL services.

Feature and Specifications
Please refer to "SHDSL Service Board Comparison".
Parameters
Please refer to "Power Consumption and Maximum Frame Size of Boards".
Working Principle
Figure 1 Working principle of the H802SHGM board

The basic working principle of the H802SHGM board is as follows:
The control module loads the board software, controls the running of the board, and manages the entire board.
The protection module protects and isolates the board from lightning strikes. The DC block isolates the direct current. The protector protects the high voltage.
The forwarding module processes the signals. After being processed by the control module, the signals are transmitted to the backplane bus through the interface of the backplane.
The interface module inputs, outputs, and converts the signals.
The power module supplies power to each functional module of the board.
The clock module provides clock signals for each functional module of the board.
The MELT module provides the MELT test function for digital subscriber lines.
The service process is as follows:
In the upstream direction, the interface module transmits subscriber line signals to the forwarding module. The forwarding module reorganizes the cell flow into ATM/PTM packets, encapsulates the ATM/PTM packets into IP packets, and performs CAR on the IP packets. Controlled by the logical switch, the IP packets are transmitted to the backplane bus through the backplane interface.
In the downstream direction, the forwarding module decapsulates the IP packets from the backplane bus, performs CAR on the IP packets, reorganizes the IP packets into ATM/PTM packets, and transmits the ATM/PTM packets to the interface module. The interface module converts the ATM/PTM packets into analog signals and transmits the signals to subscriber lines.
Front Panel Port

Indicator
Indicator Name Status Meaning
RUN ALM Running status indicator Green: blinks every 1s The board works in the normal state
Green: blinks every 0.25s The board is communicating with the control board
Red: blinks The board is in the APP startup phase
Orange: blinks A high-temperature alarm is generated
Red: on The board is faulty
BSY Port status indicator Green: on At least one service port is activated
Green: off No service port is activated
Pin Assignments
